Product Overview

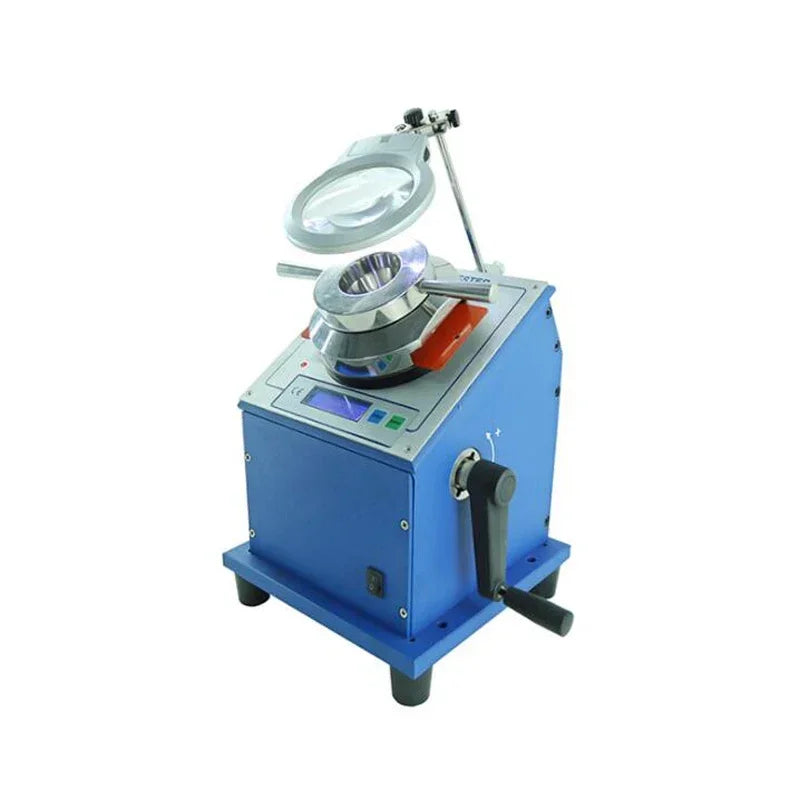

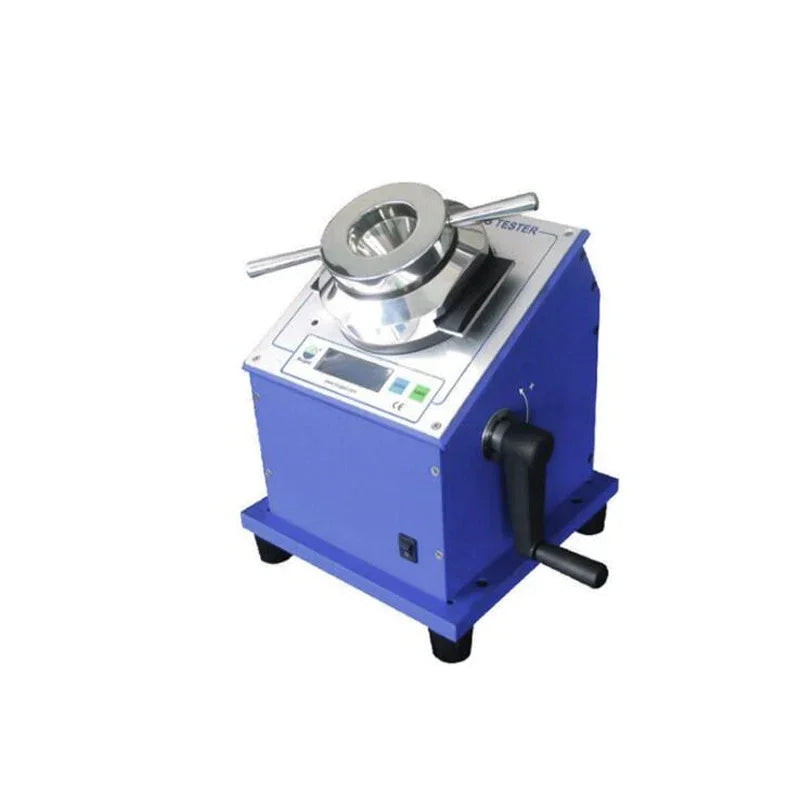

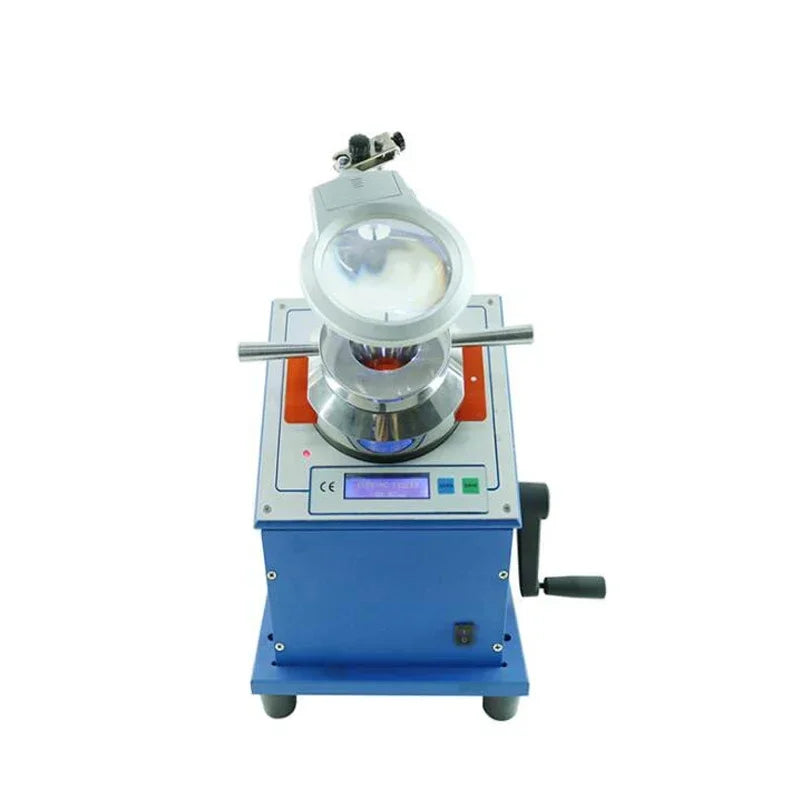

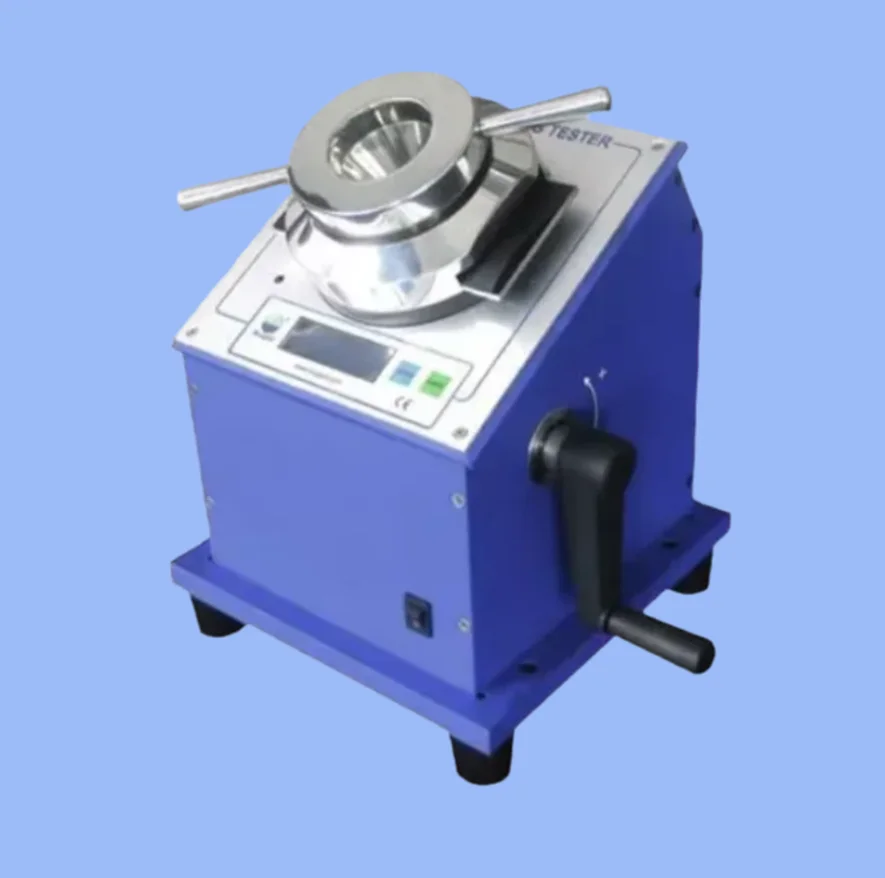

Digital Cupping Tester Paint Coating Film Testing Machine Max 12mm Dent Depth Complies with DIN ISO 1520 BS 3900 is available from FMF Supply. Use the product details, images, and option selector on this page to confirm the exact model, size, and configuration before ordering.
Key Details
- Product name: Digital Cupping Tester Paint Coating Film Testing Machine Max 12mm Dent Depth Complies with DIN ISO 1520 BS 3900
- Product type: Testing Meter
- SKU reference: FMF-TM-47705
- Check the selected option and product images before purchase.
Specifications and Notes

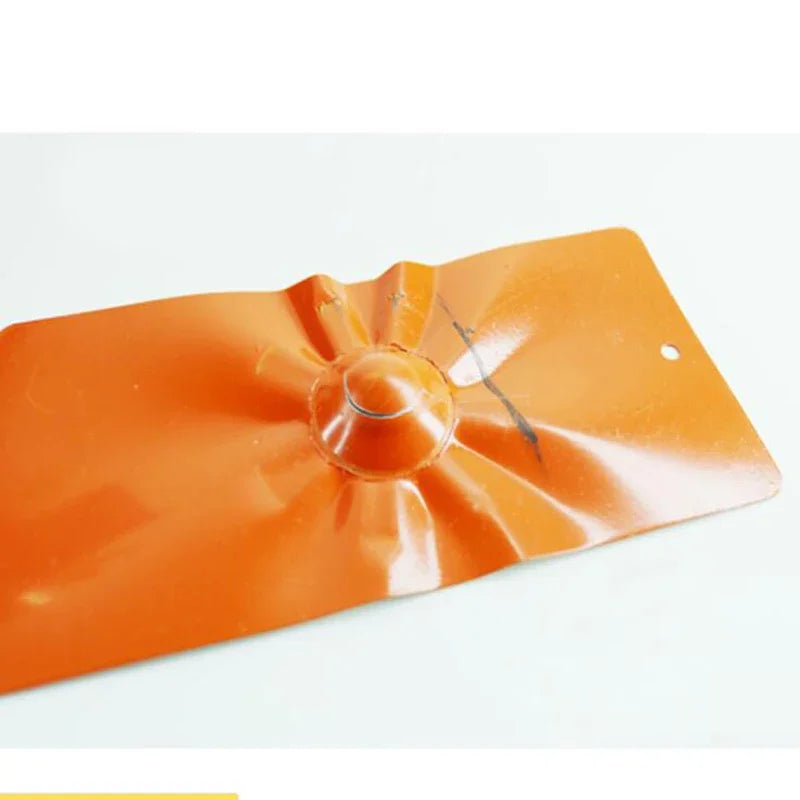

- The sample panel(max.
- 1.25mm thick*70 mm width, coated min.0.03mm)is clamped by an upper wheel and manually cupped by a Φ20mm hemispherical indenter onto a Φ27mm die by a drive wheel.
- The depth to cause failure is indicated on a precise digital display.
- Therefore, the traditional error caused by replacement or wobble can be eliminated.
- Highly precise position sensor: the minimum division value of the depression depth can reach 0.01mm.
- Applicable for every kind of substrate, and the maximum pressure can reach 2500N.
- The coordinate position of the plug can be zero manually and can be memorized while it is cold.
- Hand twist operation: laborsaving and easy-handling.
FAQ
How do I choose the right option?
Match the option name, SKU, product images, and listed specifications with the model, size, or configuration you need.
What should I confirm before ordering?
Confirm the product model, dimensions, voltage or power requirements, capacity, material, and included accessories when those details are shown for this item.
