2KW Portable UV Curing Machine, 400mm 365nm Mercury Lamp, 220V
2KW Portable UV Curing Machine, 400mm 365nm Mercury Lamp, 220V
Couldn't load pickup availability

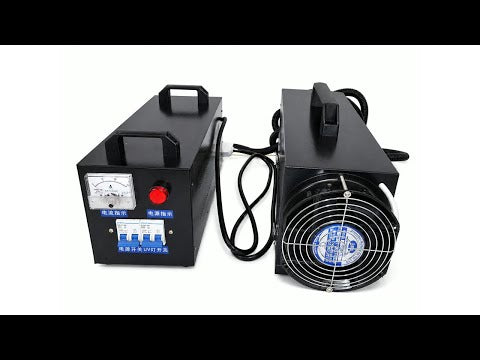

2KW portable UV curing machine with 400mm 365nm mercury lamp

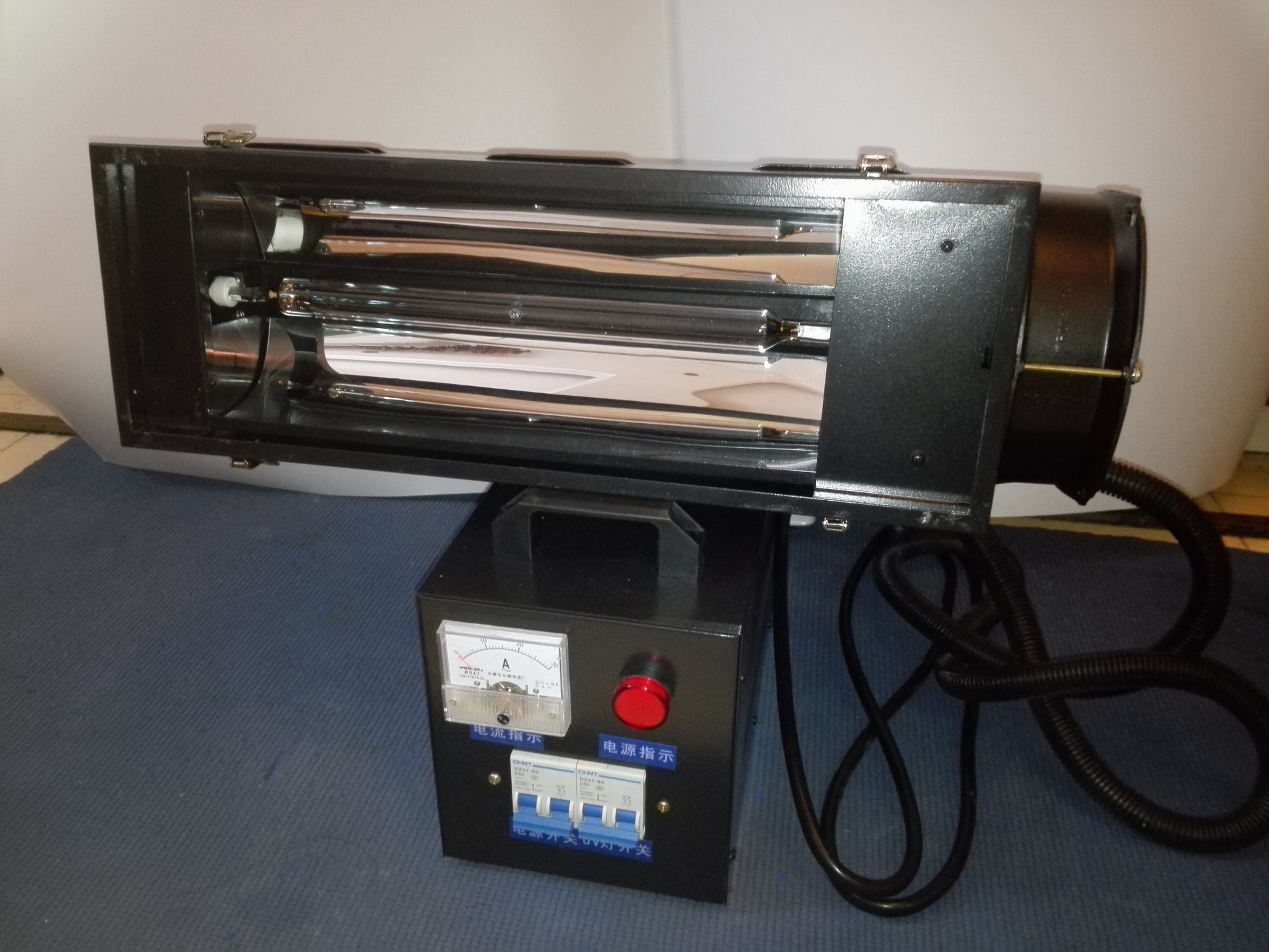

This 2KW portable UV curing machine uses a separate control box and lamp box for movable UV curing work. This listing is for the 400 mm total lamp length model with a 365nm high-pressure mercury lamp and single-phase 220V 50Hz power.
Use it for UV coating, UV ink, UV glue, varnish, paint, conformal coating and similar UV-sensitive surface curing tasks where a fixed conveyor curing line is not required.
Best-fit use
- UV glue and UV adhesive curing.
- UV ink curing for printing, packaging and special printing work.
- UV coating, varnish, paint and conformal coating curing.
- Furniture, floor, model, craft and surface-finishing work.
- Automotive paint repair, headlamp refurbishment, laboratory work and temporary repair tasks.
Key features
- 2KW UV curing output: Built around a 2KW lamp system for industrial UV curing tasks.

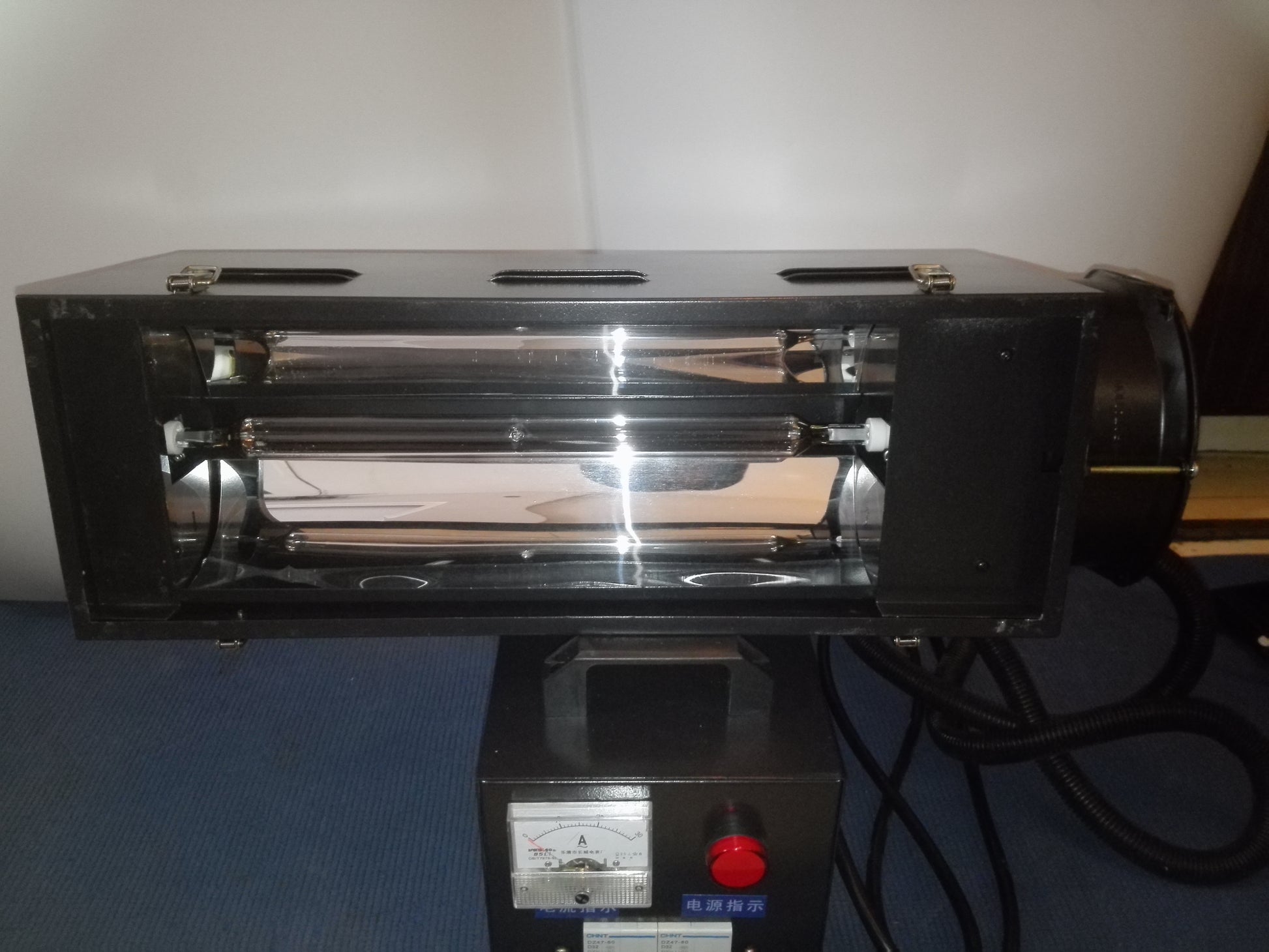

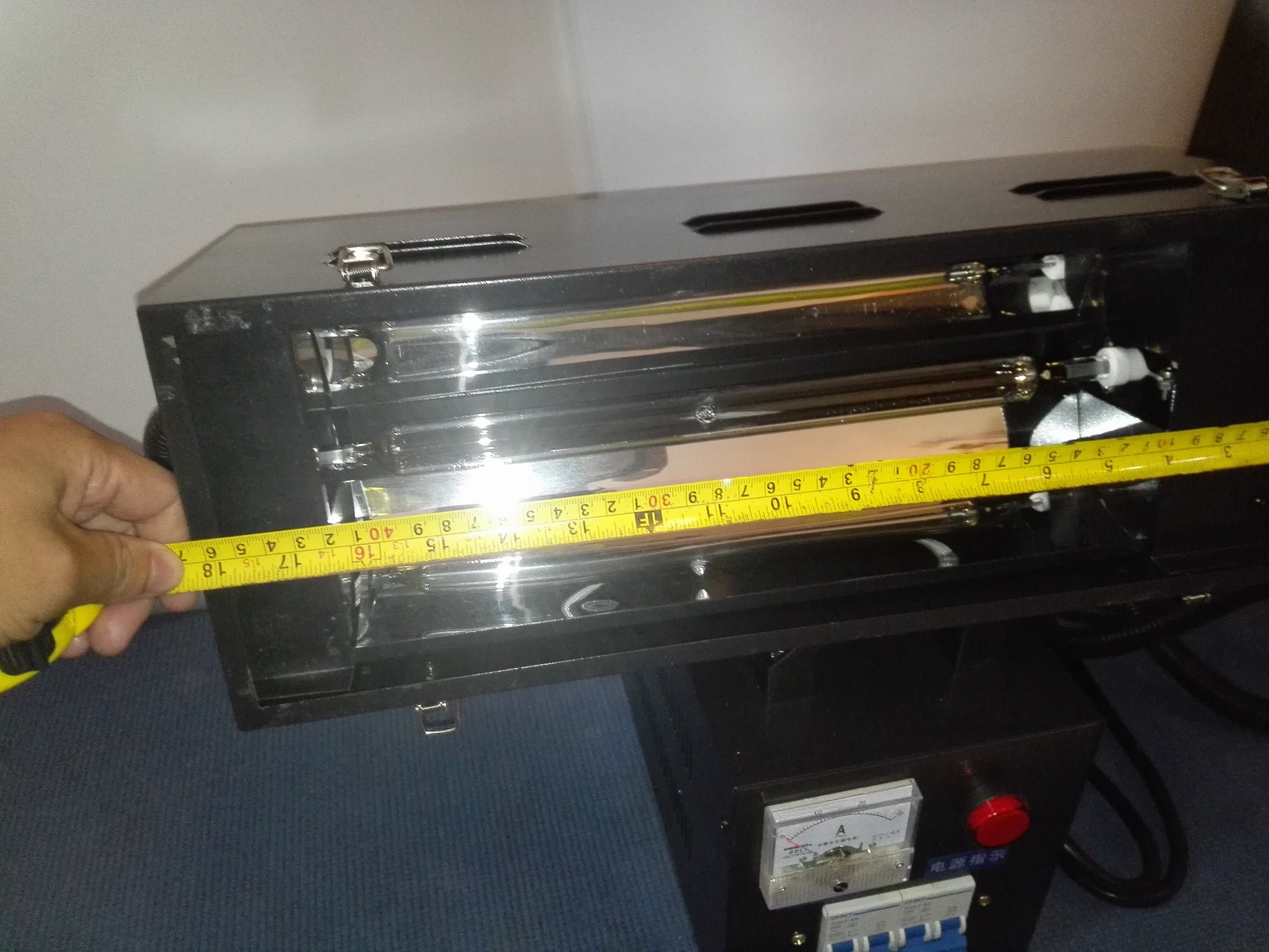

- 400 mm total lamp length: The approximate emitting length is the lamp total length minus 100 mm, so the 400 mm lamp corresponds to about 300 mm emitting area.
- 365nm mercury lamp: Uses a high-pressure mercury lamp with 365nm peak wavelength.

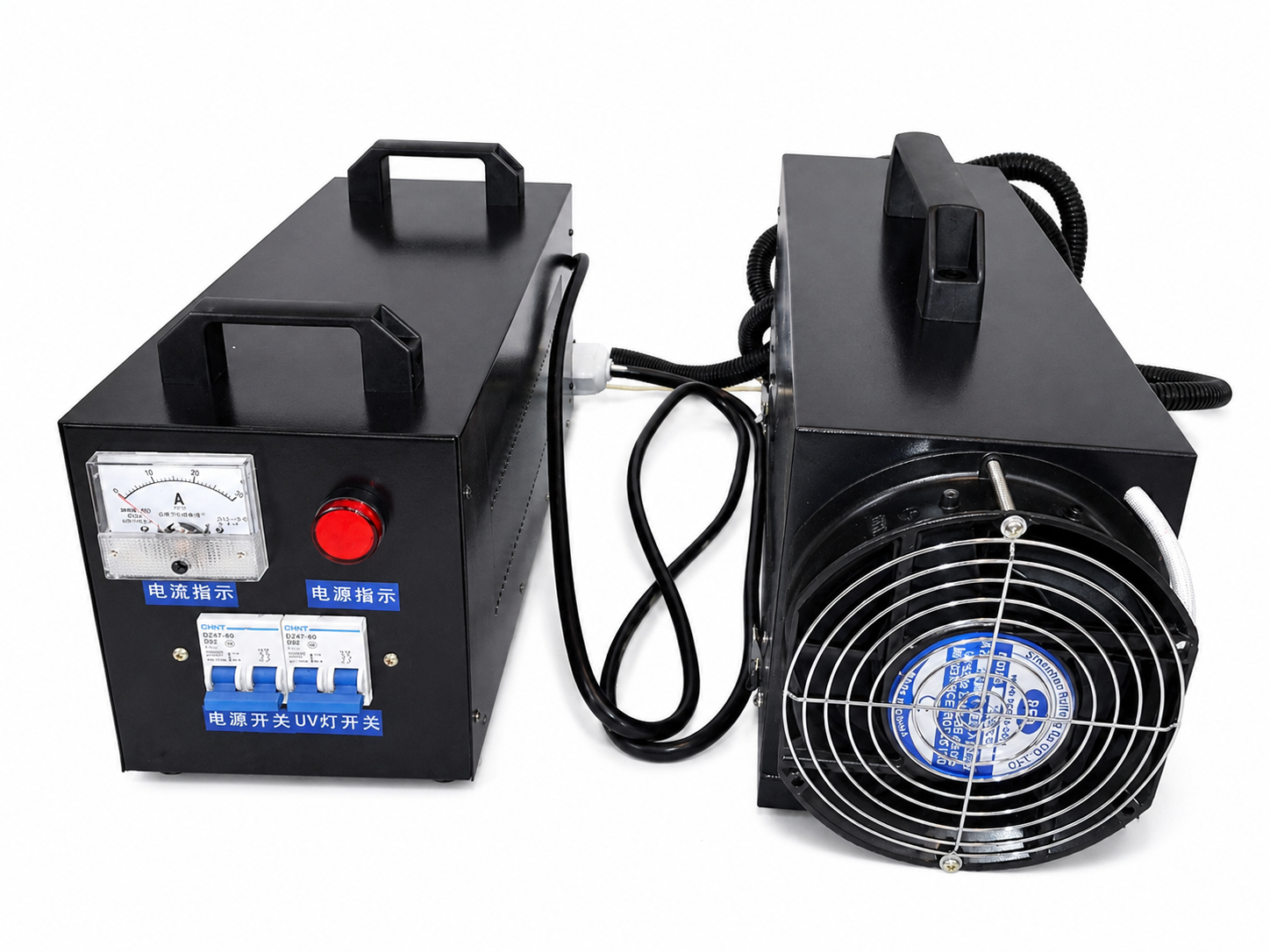

- Separate control box and lamp box: Easier to move around a workpiece than a fixed conveyor curing line.
- Fan-cooled exhaust design: Rear fan and exhaust layout help manage operating heat.
- 80-200 mm irradiation distance: Listed irradiation distance range for matching the lamp box to the work surface.
Specifications
| Product type | Portable UV curing machine |
|---|---|
| Model | 2KW, 400 mm total lamp length |
| Power supply | Single-phase 220V, 50Hz |
| Peak wavelength | 365nm |
| Lamp type | High-pressure mercury lamp |
| Cooling method | Fan-cooled exhaust |
| Irradiation distance | 80-200 mm |

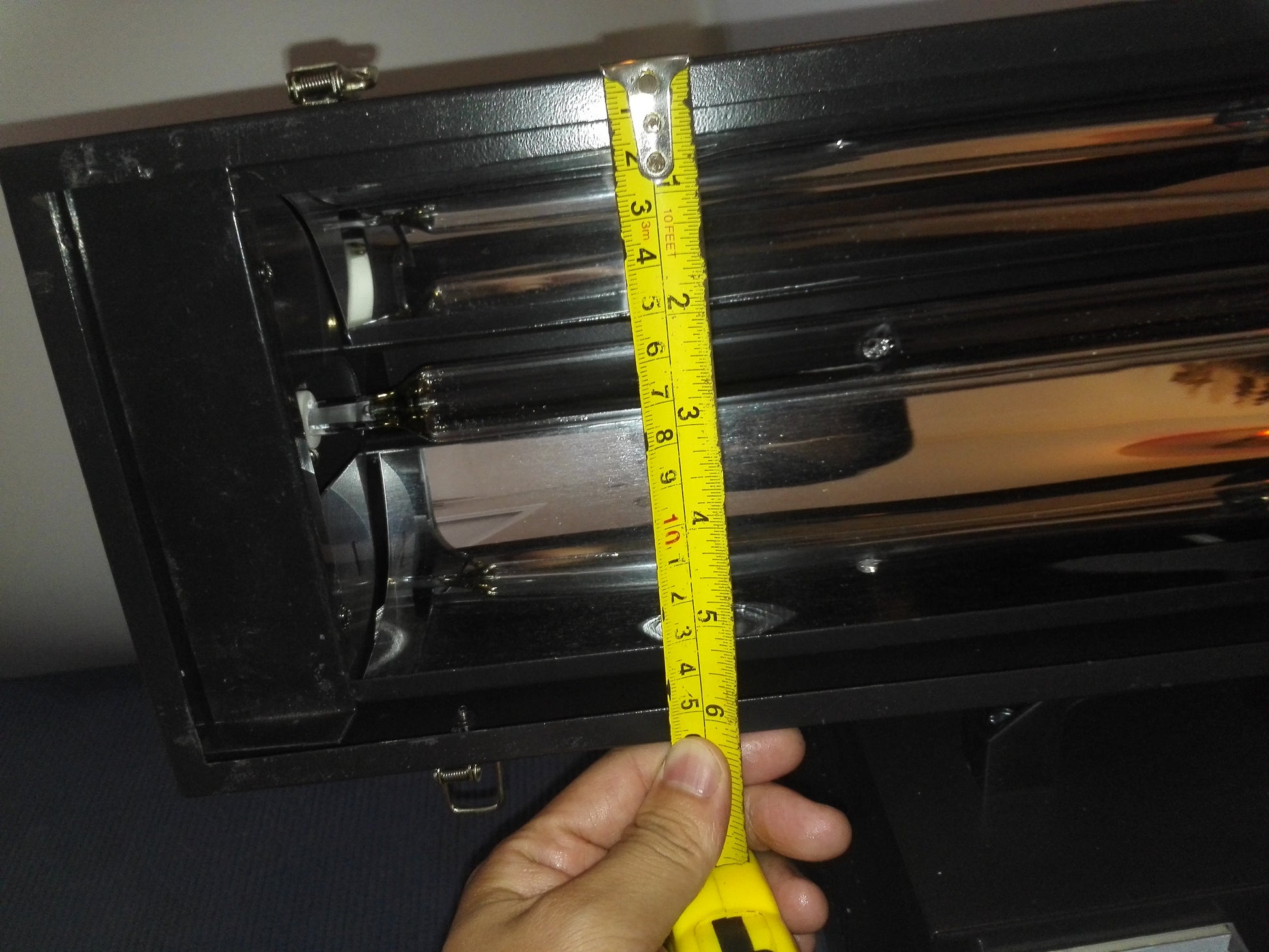

| Lamp box size | 400 x 130 x 180 mm |

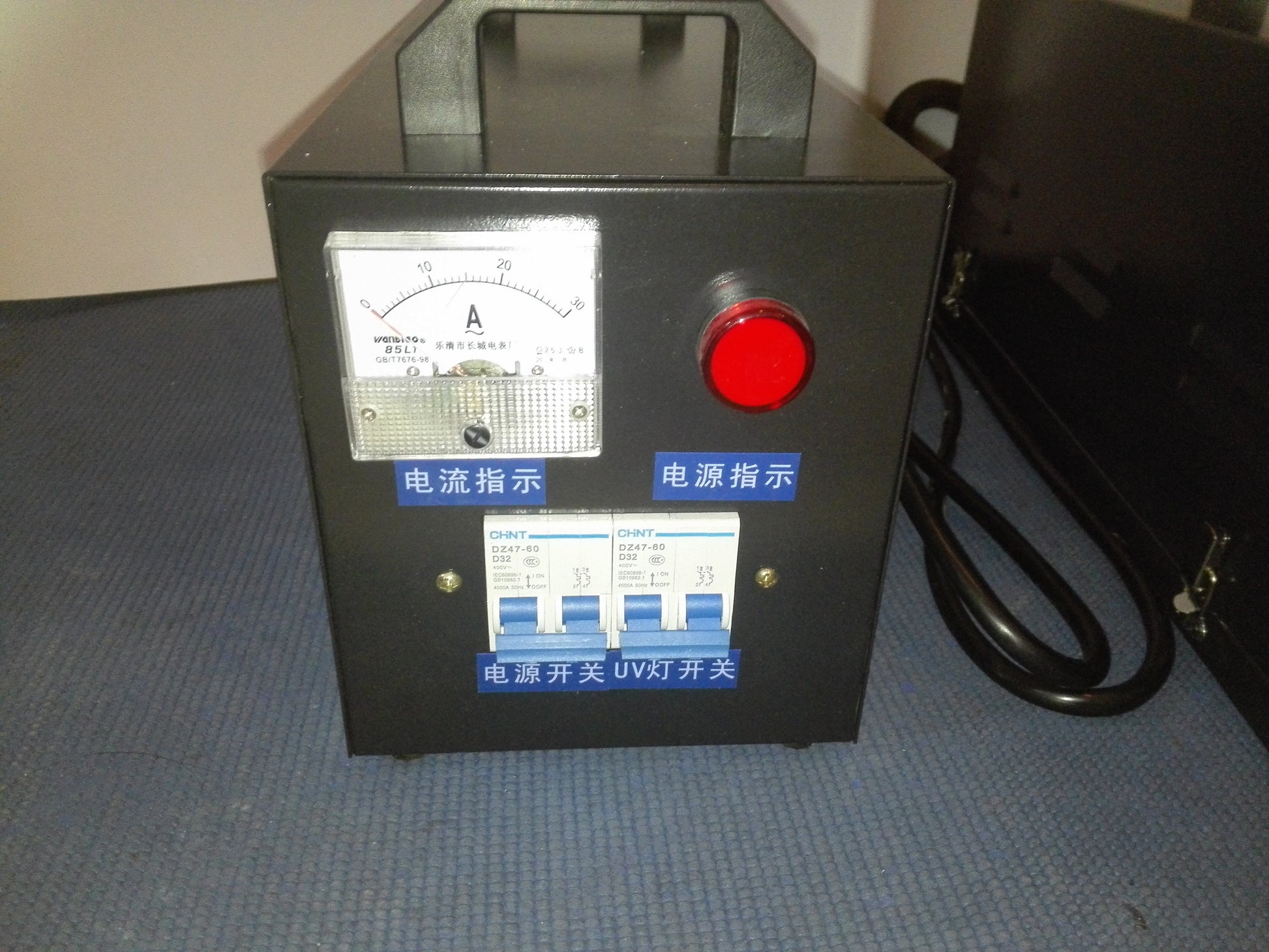

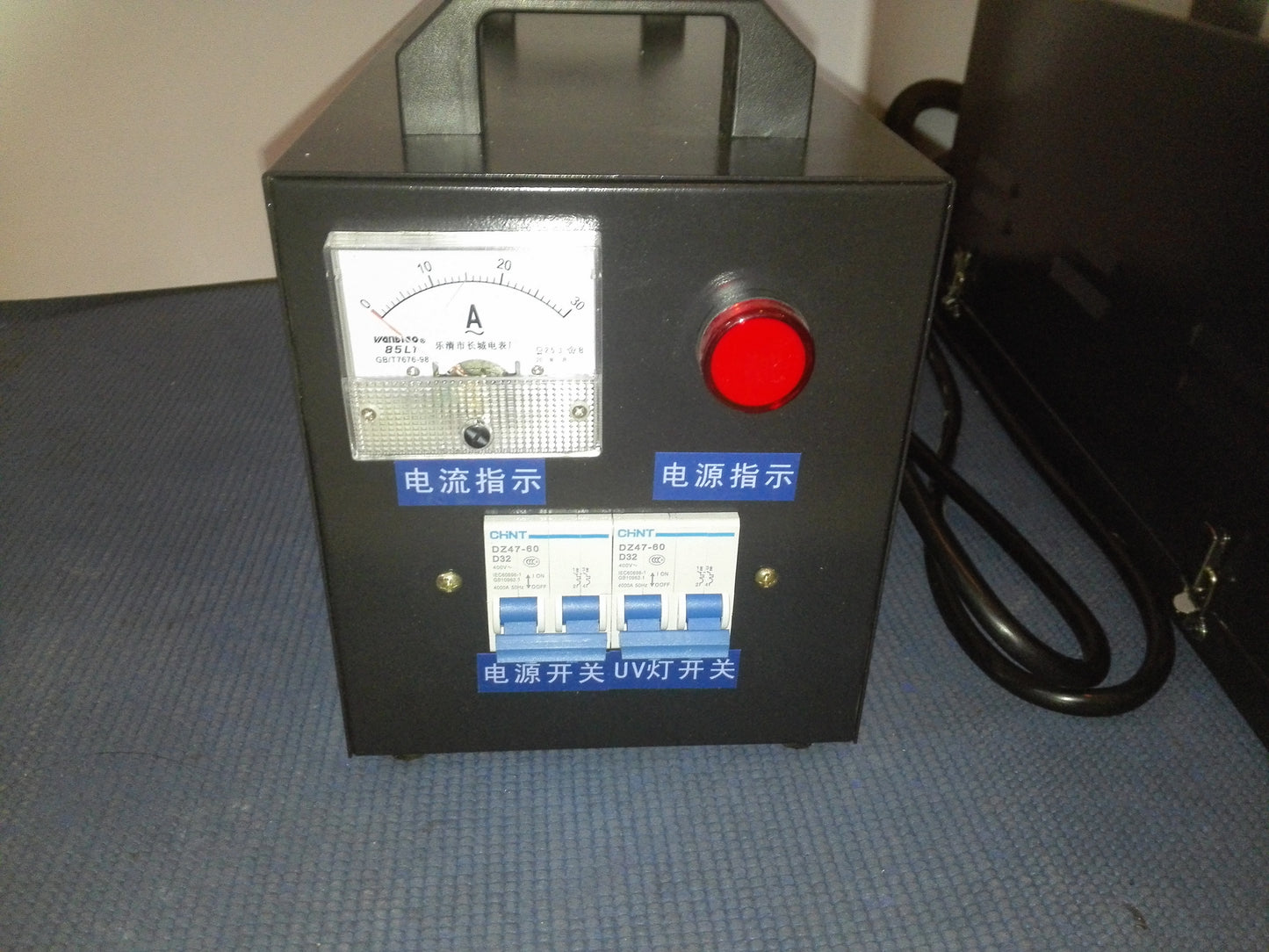

| Control box size | 360 x 160 x 240 mm |
| Lamp box weight | 4 kg |
| Control box weight | 14 kg |
| Power density | 67 W/cm2 |
| UV intensity | 140 mW/cm2 |
| Light energy range | 1000-9500 mJ/cm2 |
Ordering notes
- This listing is for the 2KW / 400 mm lamp length / 220V model.
- The plug is configured according to the customer's shipping country by default.
- Confirm the curing material, exposure distance and required lamp length before ordering.
- For a specific plug, voltage or curing setup, contact us before ordering.
FAQ
What is this portable UV curing machine used for?
It is used for UV glue, UV ink, UV coating, varnish, paint, conformal coating and similar UV-sensitive curing work.
Is this the 2KW 400 mm version?
Yes. This listing is for the 2KW model with a 400 mm total lamp length.
What wavelength does the lamp use?
The listed peak wavelength is 365nm, and the lamp type is a high-pressure mercury lamp.
What power supply does this model use?
This model uses single-phase 220V, 50Hz power. The plug is configured according to the customer's shipping country by default.
Is this a conveyor UV curing machine?
No. This is a portable lamp-box and control-box curing machine for movable work, temporary repairs and local surface curing tasks.
What irradiation distance is listed?
The listed irradiation distance range is 80-200 mm.
