1000g x 0.01g Digital Balance with 100 cm2 GSM Fabric Cutter Set
1000g x 0.01g Digital Balance with 100 cm2 GSM Fabric Cutter Set
Couldn't load pickup availability
Product Overview
This GSM fabric sampling set combines a 100 cm2 rotary fabric sample cutter with a 1000g x 0.01g digital electronic balance for measuring fabric weight per square meter.
The cutter produces a 100 cm2 (0.01 m2) sample. After weighing the sample, multiply the gram reading by 100 to calculate GSM. For example, a 3g sample equals 300g/m2.
Key Specifications
| Part | Verified Details |
|---|---|

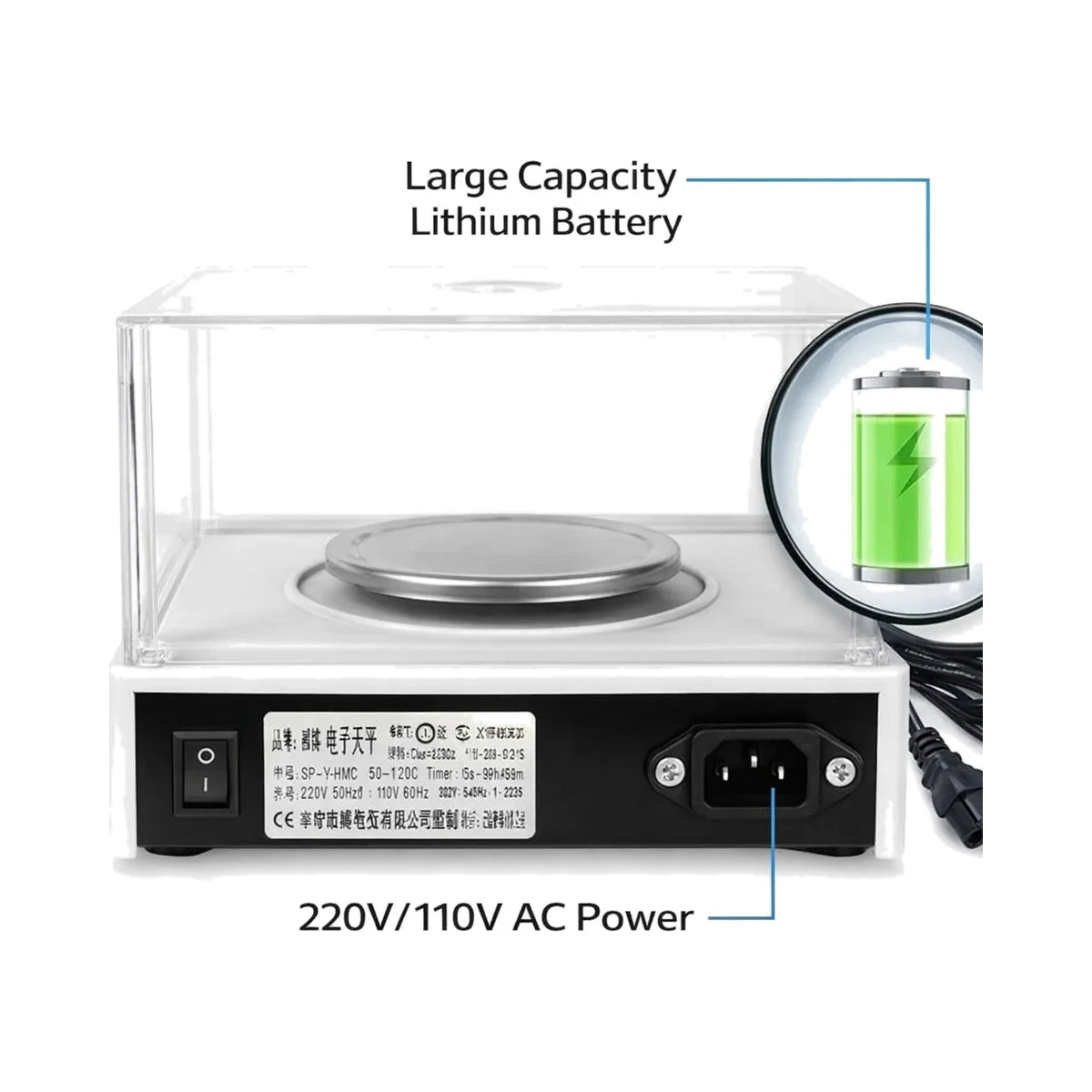

| Digital electronic balance | 1000g capacity, 0.01g readability, AC 110-220V power supply, built-in rechargeable lithium battery |
| Fabric GSM cutter | 100 cm2 sampling area, 5 mm sampling thickness, replaceable blade, aluminum alloy body |
| Cutter dimensions | 165 mm diameter x 130 mm height |
| Sample size | 100 cm2 / 0.01 m2 circular sample |
Applications
Suitable for GSM sampling and weighing of thin textile materials including cotton, wool, silk, linen and chemical fiber fabrics.
The set can also be used for one-time cutting of thin leather, thin cardboard and thin aluminum foil. For cardboard or other thick materials at 3 mm or thicker, use the manual press type GSM cutter instead; consult customer service for that version.
How GSM Measurement Works
- Place the fabric flat on the rubber pad.
- Position the GSM cutter on the material, release the safety lock and rotate the handle clockwise to cut the circular sample.
- Return the safety lock after cutting and remove the waste material.
- Weigh the 100 cm2 fabric sample on the electronic balance.
- Multiply the gram reading by 100 to get the fabric GSM value.
Package Includes
- GSM fabric cutter
- 1000g / 0.01g digital electronic balance
- Wind shield
- Calibration weight
- Rubber pad
- Spare blade
Buyer Notes
This listing is for the electronic balance and classic GSM fabric cutter set shown. Use the thin-material guidance above before cutting cardboard or other thicker materials.
