YD-II Digital Tablet Hardness Tester, 220V 50Hz
YD-II Digital Tablet Hardness Tester, 220V 50Hz
No se pudo cargar la disponibilidad de retiro

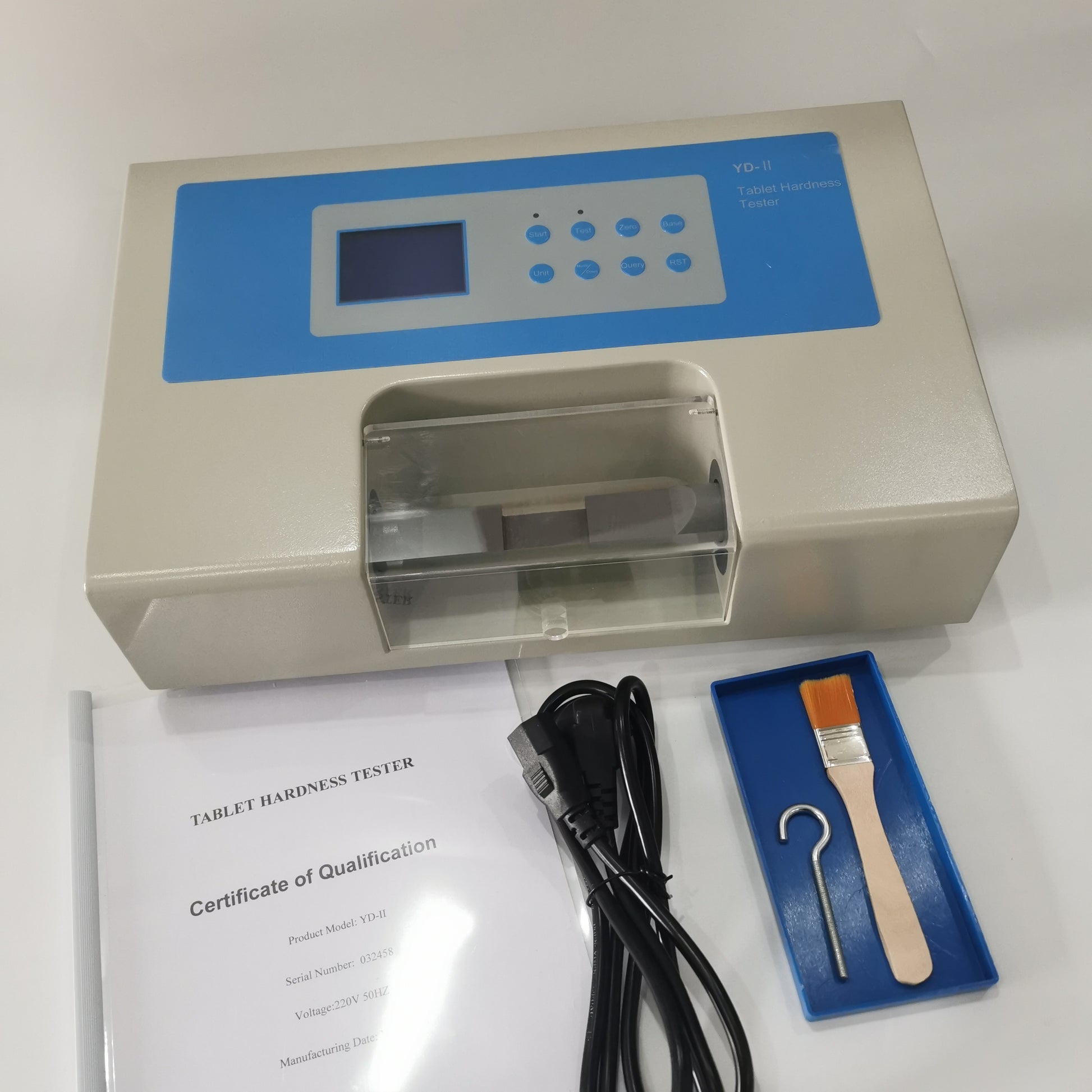

YD-II Digital Tablet Hardness Tester
The YD-II digital tablet hardness tester is used to measure tablet crushing hardness. The machine holds the tablet in the test chamber, applies pressure through the test mechanism, and displays hardness results on the front screen.

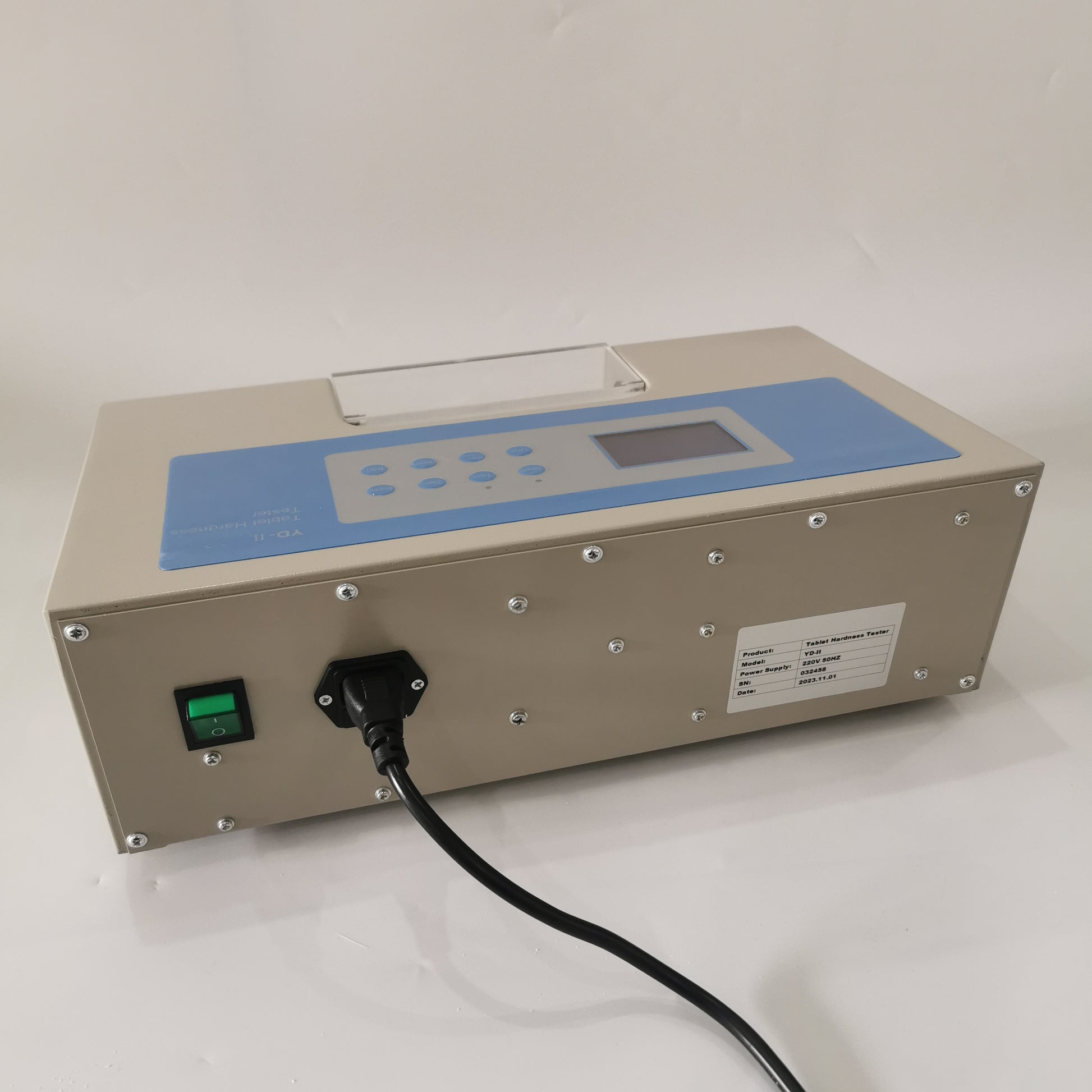

The unit shown for this listing is marked YD-II and 220V 50Hz. Confirm that 220V 50Hz matches your laboratory or workshop power before ordering.
Key Features
- Digital tablet hardness tester for measuring crushing hardness of tablets.

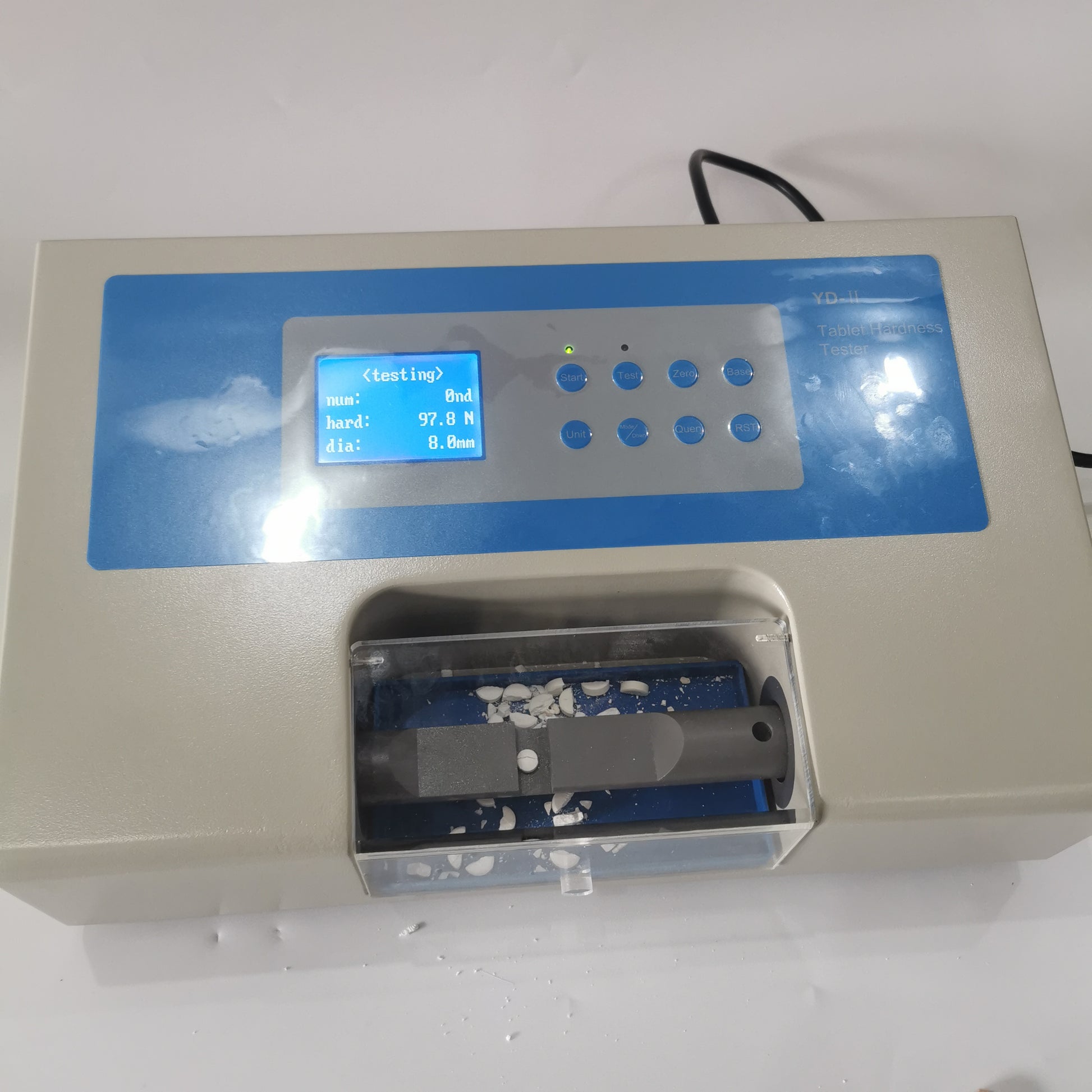

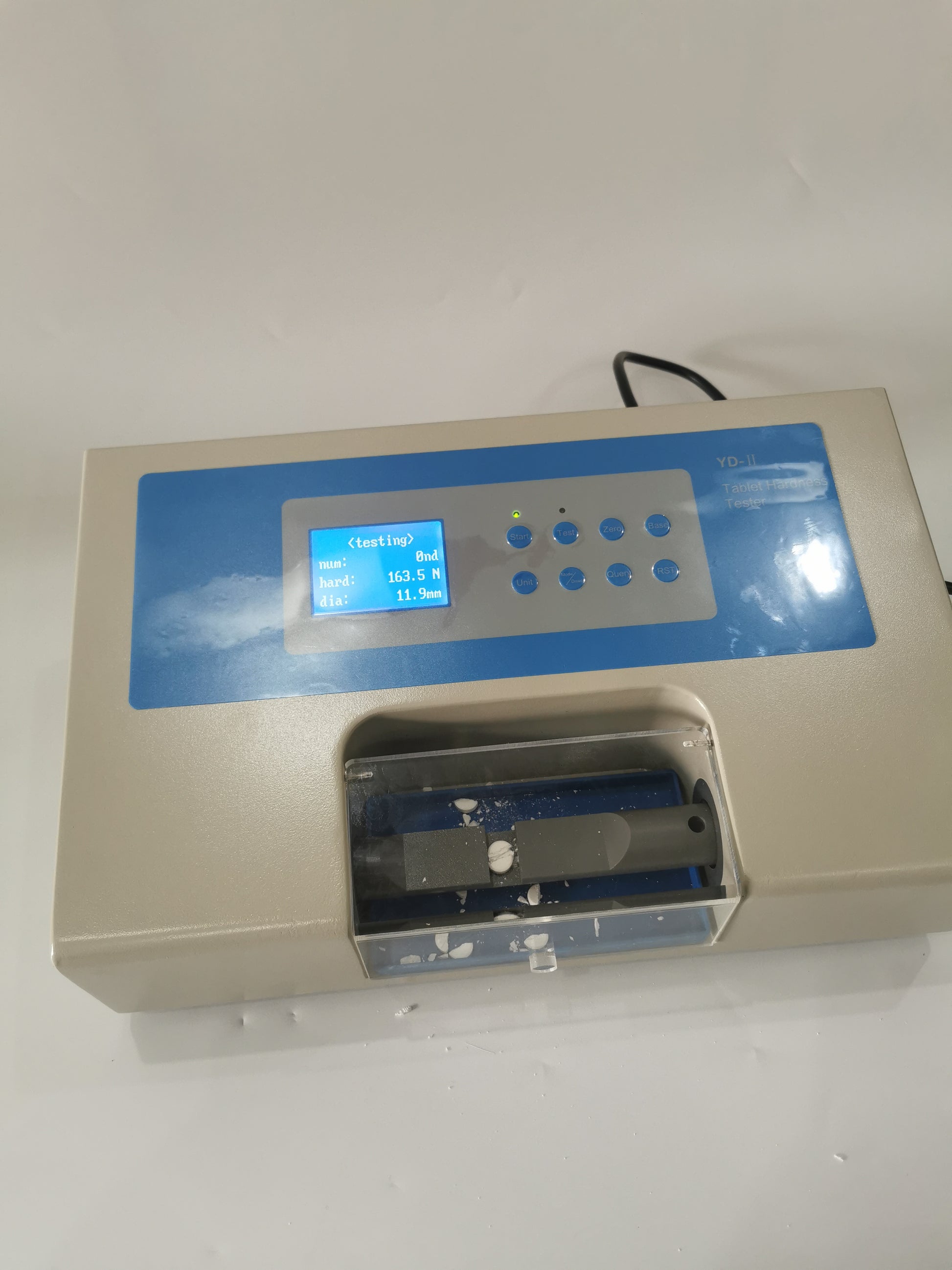

- Front display shows hardness readings in N and tablet diameter in mm.

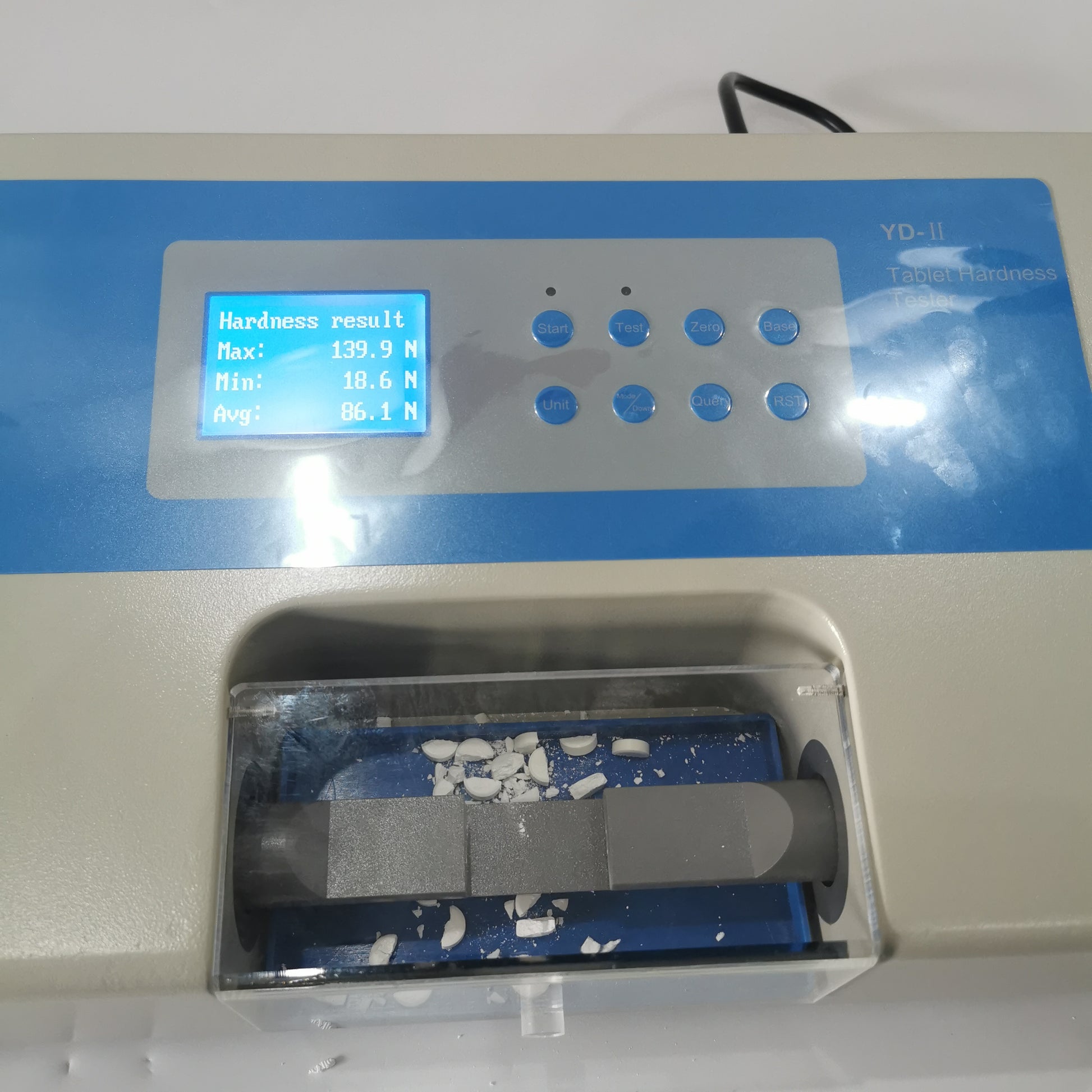

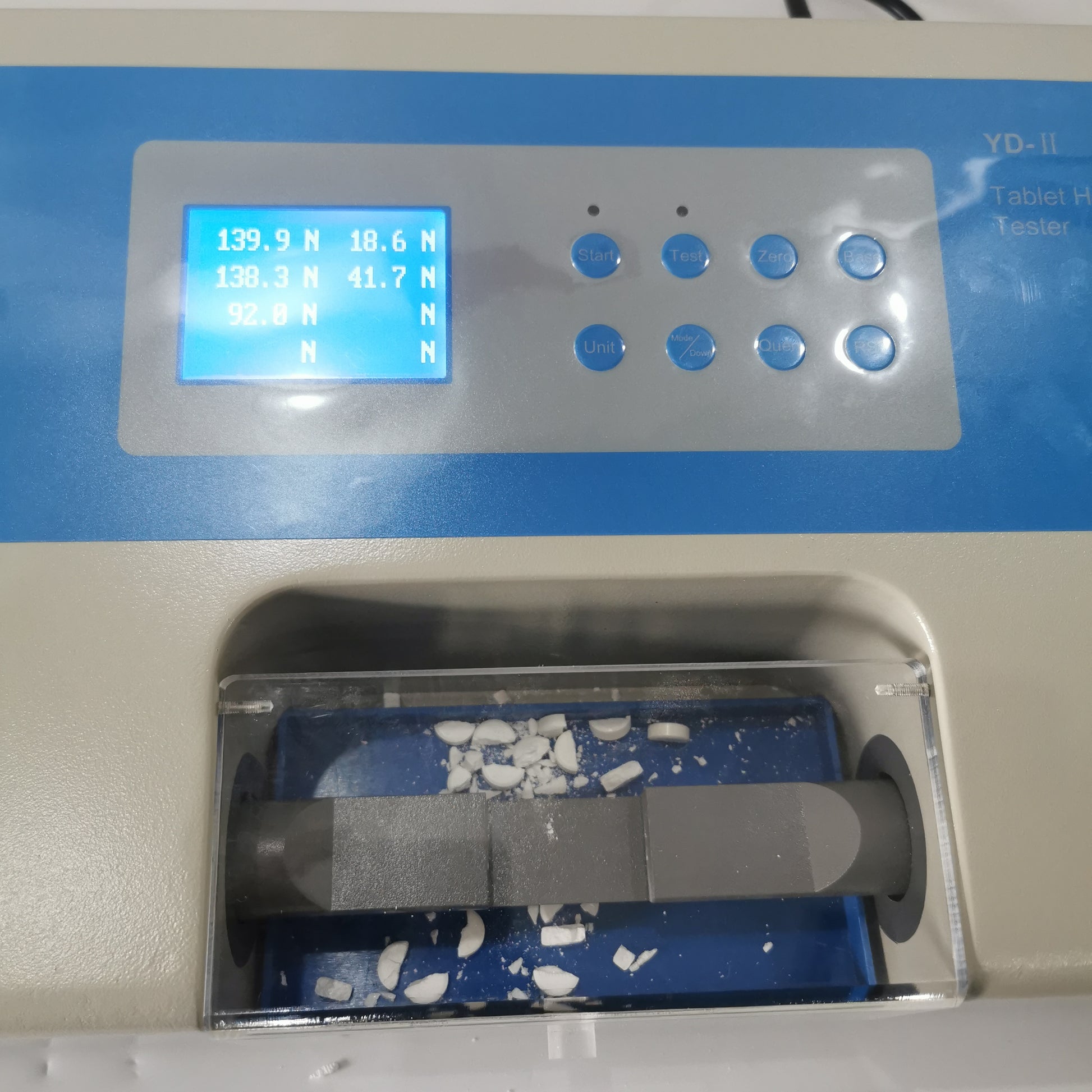

- Result display can show Max, Min, and Avg values for recorded tests.
- Buttons include Start, Test, Zero, Base, Unit, Mode/Down, Query, and RST.
- Manual single-tablet and automatic continuous measuring modes are listed in the product data.
- Unit conversion between Newton and kilogram is listed in the product data.
- Tablet diameter measurement is listed in the product data and shown on screen in mm.
Technical Specifications
| Model | YD-II |
|---|---|
| Product type | Digital tablet hardness tester |
| Test object | Tablets |
| Measured value | Tablet crushing hardness |
| Hardness display unit | N; Newton/kilogram unit conversion listed in product data |
| Diameter display | mm |
| Measuring modes | Manual single tablet / automatic continuous mode listed in product data |
| Result query | Previous result query function listed in product data |
| Power supply | 220V 50Hz |
| SKU | FMF-YD-2-07129 |
How It Works

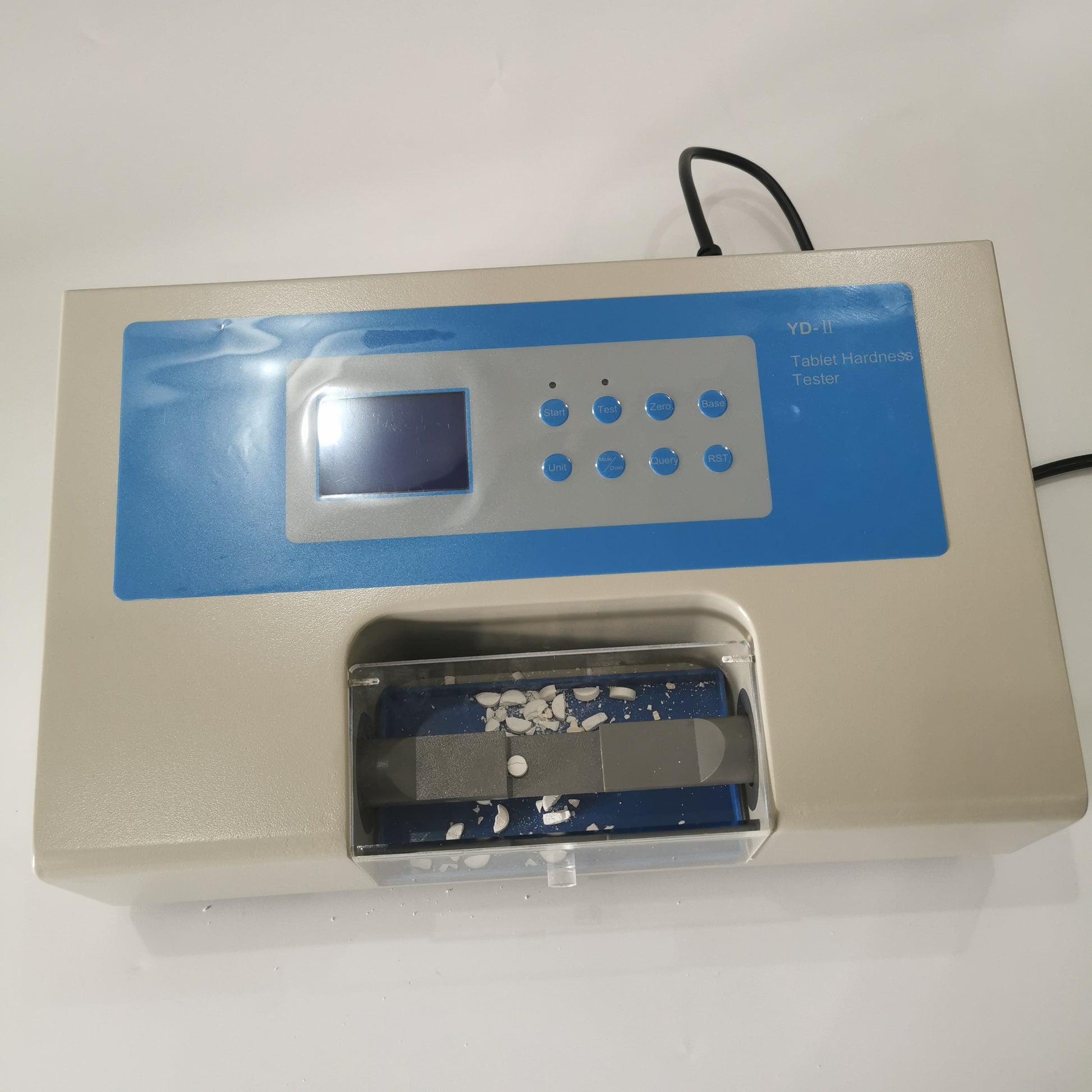

- Place the tablet in the protected test chamber.
- Use the control panel to start or run the required test mode.
- The machine applies pressure until the tablet breaks or reaches the test end condition.
- Read the hardness value on the display and record the related diameter value when needed.
- Use the query function when previous test results need to be checked for recording.
Before Ordering
- Confirm that the YD-II model matches the tablet hardness testing workflow you need.
- Confirm that 220V 50Hz is suitable for your site power.
- Confirm whether your workflow requires manual single-tablet testing, automatic continuous testing, result query, N/kg unit conversion, and tablet diameter measurement.
- Do not treat this listing as a fruit hardness tester or penetrometer; it is a tablet hardness tester.
FAQ
What does the YD-II tablet hardness tester measure?
It measures tablet crushing hardness. The display shows hardness readings in N, and the product data lists Newton/kilogram unit conversion.
Does this tester measure tablet diameter?
Yes. Tablet diameter measurement is listed in the product data, and the display shows diameter values in mm.
What power supply does this unit use?
The unit shown in the product images is marked 220V 50Hz.
Can it run manual and automatic tests?
The product data lists manual single-tablet mode and automatic continuous measuring mode.
Is this a fruit hardness tester?
No. This product is a YD-II tablet hardness tester for tablet hardness testing.
