ortable Handheld LCR Meter 100-10KHz USB TH2822A

I.Introduction:

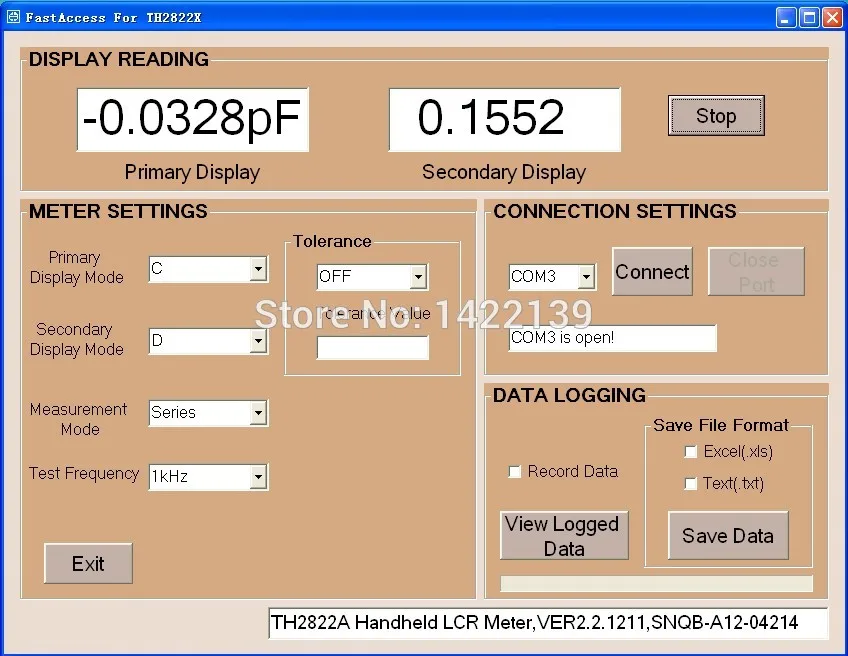

TH2822A adopts the ultra-low dissipation design and high density SMD assembly techniques and can simultaneously display primary and secondary parameters by the use of backlit LCD display. The dual-color shells are gorgeously once shaped; functions are easy to operate. Gorgeously once shaped dual-color shells and easy operating functions are the characteristics of the meter. The test frequency is up to 10 KHz, the readings of primary parameter 40,000 counts and the resolution of dissipation factor 0.0,001. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. With USB interface TH2822A can conveniently make data communication and remote control with PC. In order to satisfy the increasing test requirements for SMD and balance the different needs for performance and price, two types of 4-terminal Kelvin test tweezers: TH26009C and TH26029C are available for users choice.

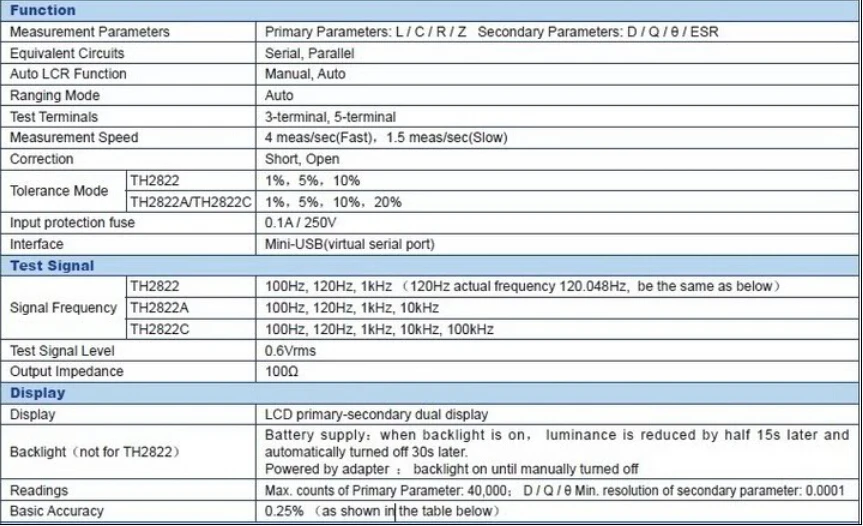

II.Feature:

Basic measurement accuracy: 0.25%

Gorgeous dual-color cast shell

Maximum test signal frequency: 10kHz(TH2822A)

40,000 counts for primary parameter, D/Q resolution 0.0001

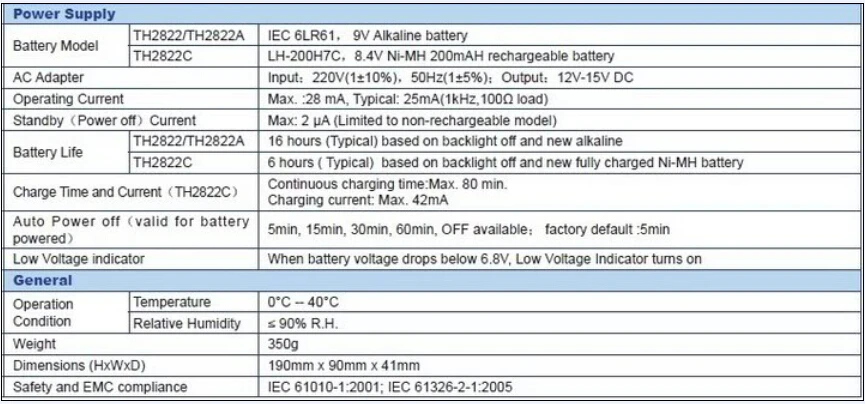

Typical ultra-low consumption : 25mA

Battery capacity: TH2822/TH2822A,continuously used for 16hours

TH2822C rechargeable batteries are optional

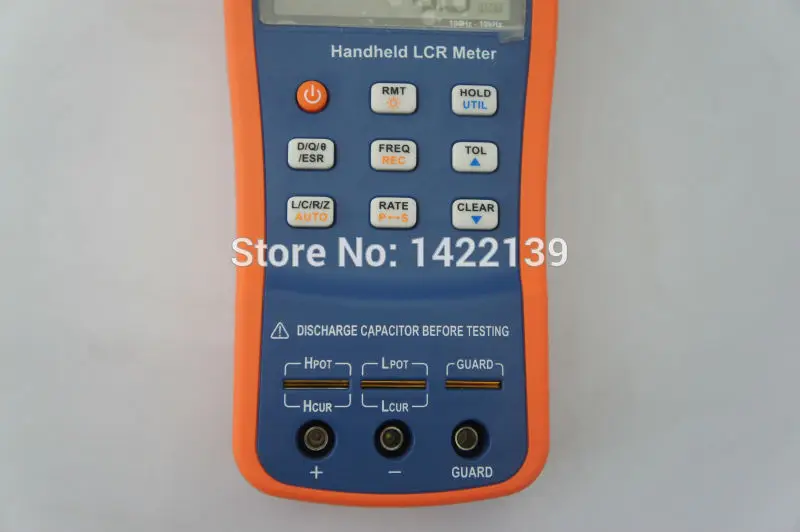

Innovatively compatible terminal configuration : 5-terminal test

slot and 3-terminal banana jack

Intelligent Auto LCR function

Measurement speed up to 4 meas/sec, fast automatic range
