QERS-QD Pneumatic Vial Crimping Machine for Aluminum and Aluminum-Plastic Caps

$600.00 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Crimping Head Size 13A - 13 mm Aluminum-Plastic Cap 15A - 15 mm Aluminum-Plastic Cap 20A - 20 mm Aluminum-Plastic Cap 20 - 20 mm Pure Aluminum Cap

Overview

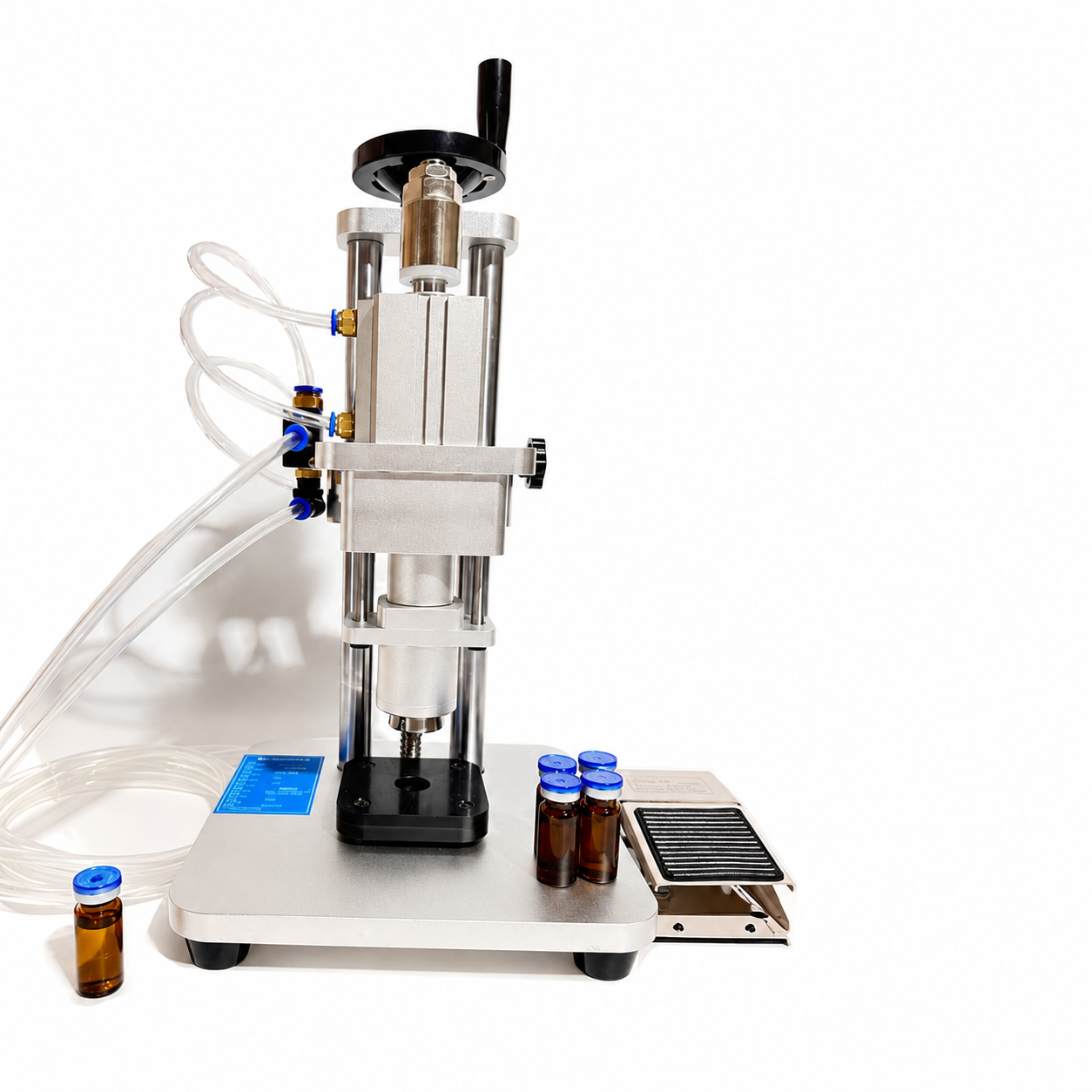

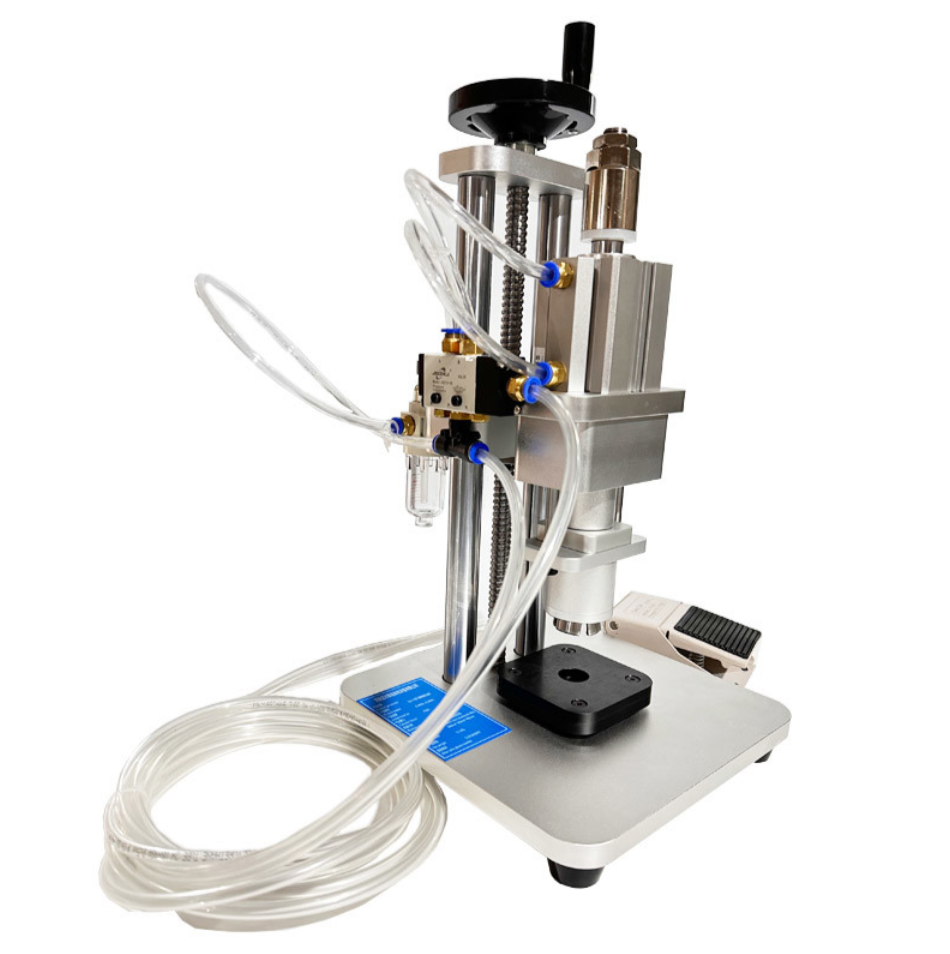

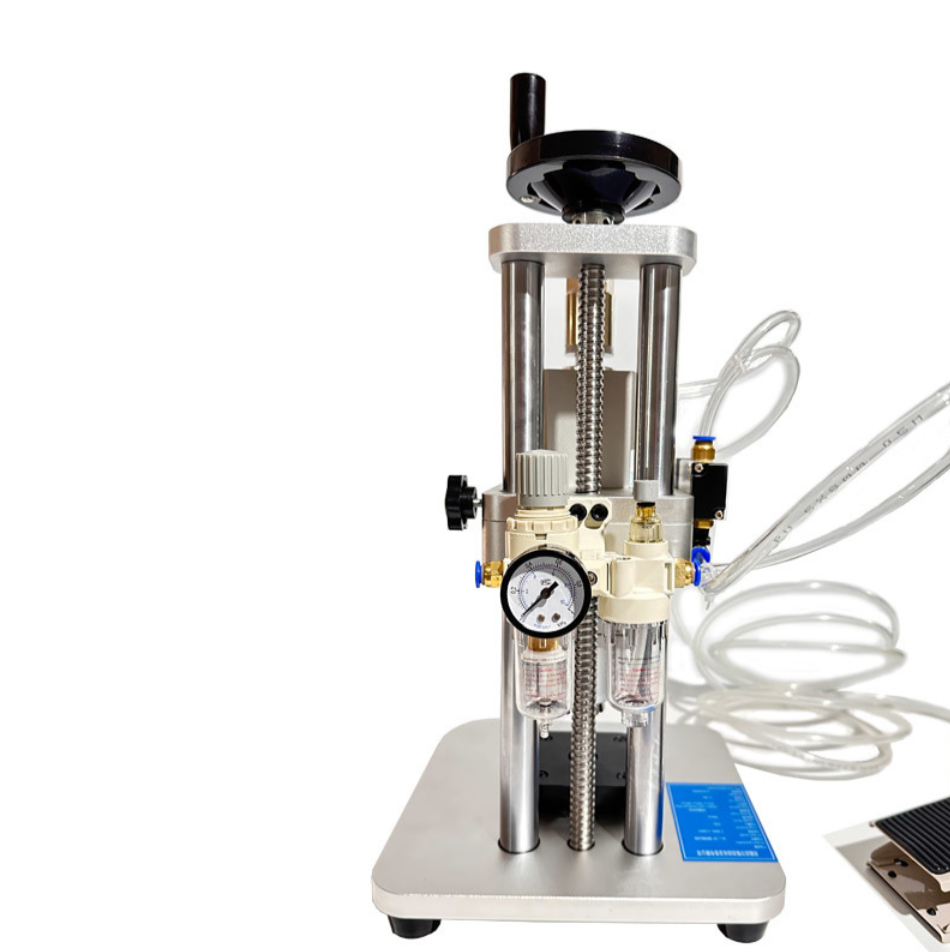

The QERS-QD pneumatic vial crimping machine is a benchtop vial cap crimper for sealing compatible vial caps with compressed air and a foot pedal switch. It can be matched with the correct crimping head for aluminum-plastic caps or pure aluminum caps according to the vial mouth diameter.

Key Features

Pneumatic operation with a 0.4 MPa to 0.8 MPa compressed air range.
45 kg cylinder thrust and 200 mm machine travel.

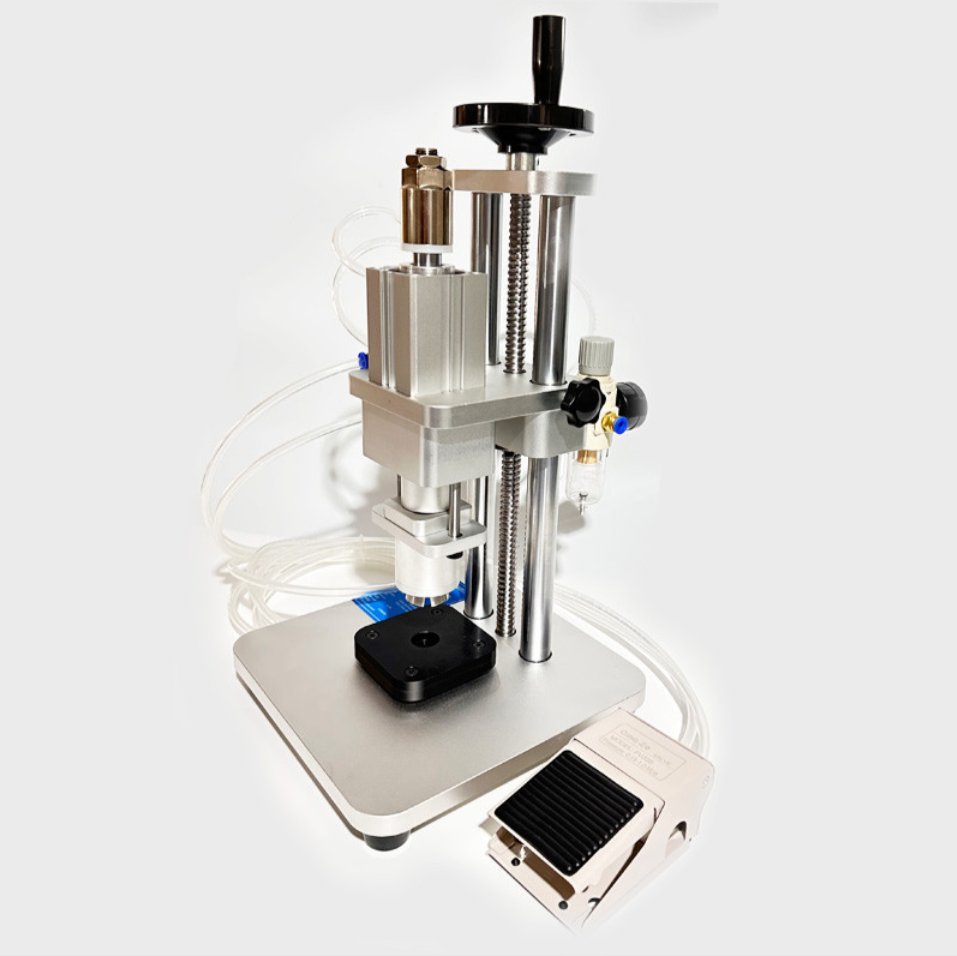

Foot pedal switch for controlled cap crimping operation.
Adjustable cylinder limit nut for cap-tightness adjustment.

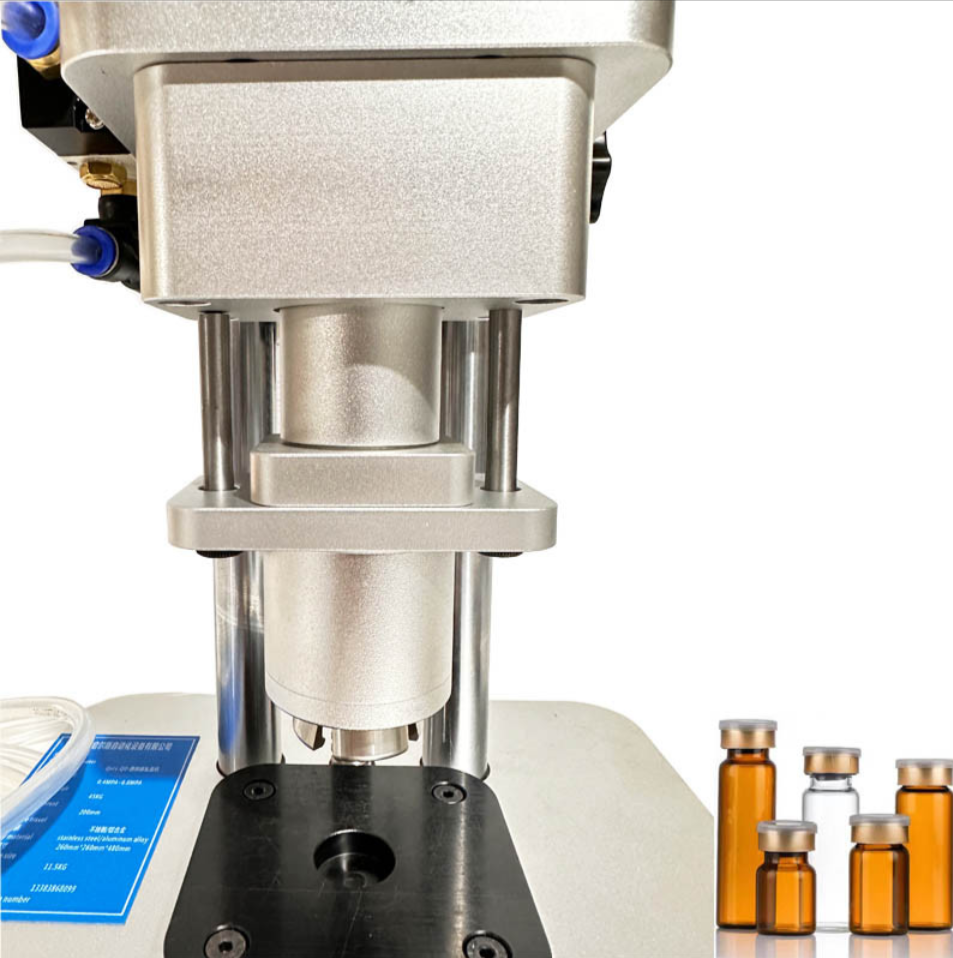

Spring base helps reduce excessive pressure on the vial during crimping.
Body material: stainless steel and aluminum alloy.

Technical Specifications

Model	QERS-QD pneumatic vial crimping machine
Operation type	Semi-automatic pneumatic operation
Compressed air range	0.4 MPa to 0.8 MPa
Cylinder thrust	45 kg
Machine travel	200 mm
Machine size	260 x 260 x 480 mm
Net weight	11.5 kg
Body material	Stainless steel and aluminum alloy
Control	Foot pedal switch

Crimping Head Selection Guide

Choose the crimping head by vial mouth diameter and cap type. Measure the vial mouth before ordering, and provide the bottle body diameter and bottle height when a matching base hole is required.

Vial mouth diameter	Aluminum-plastic cap	Pure aluminum cap

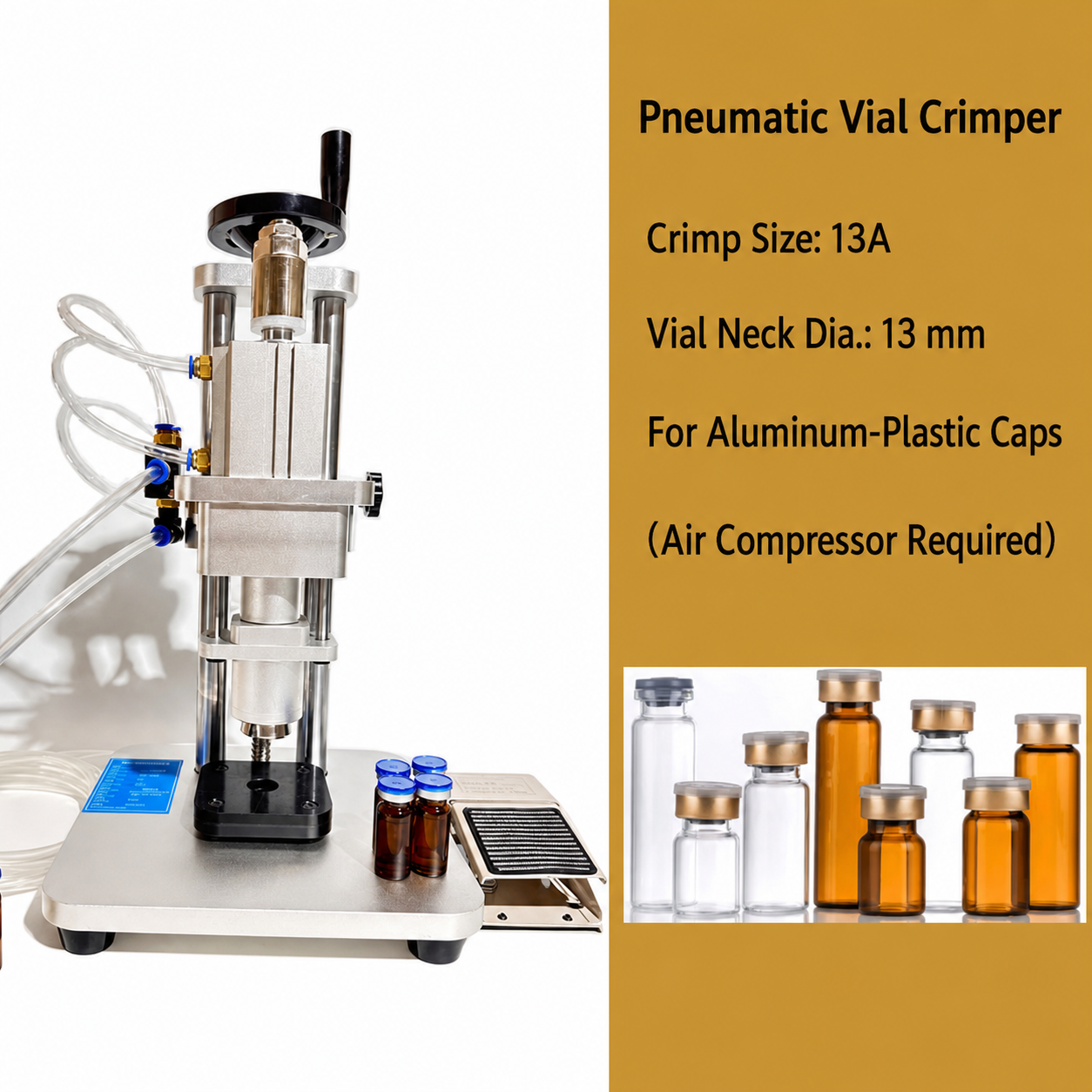

12.8-13.0 mm	13A crimping head	13 crimping head

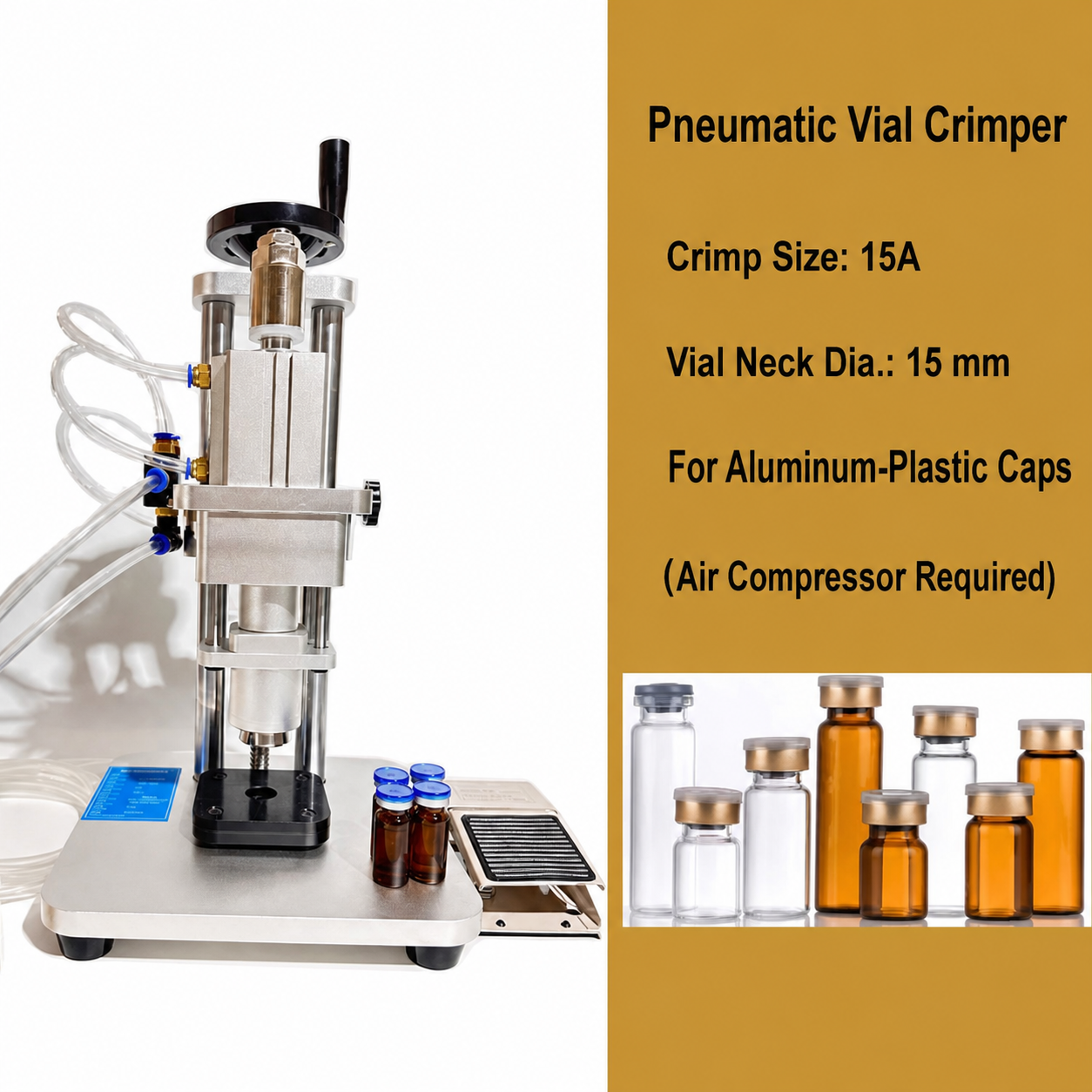

14.8-15.0 mm	15A crimping head	15 crimping head

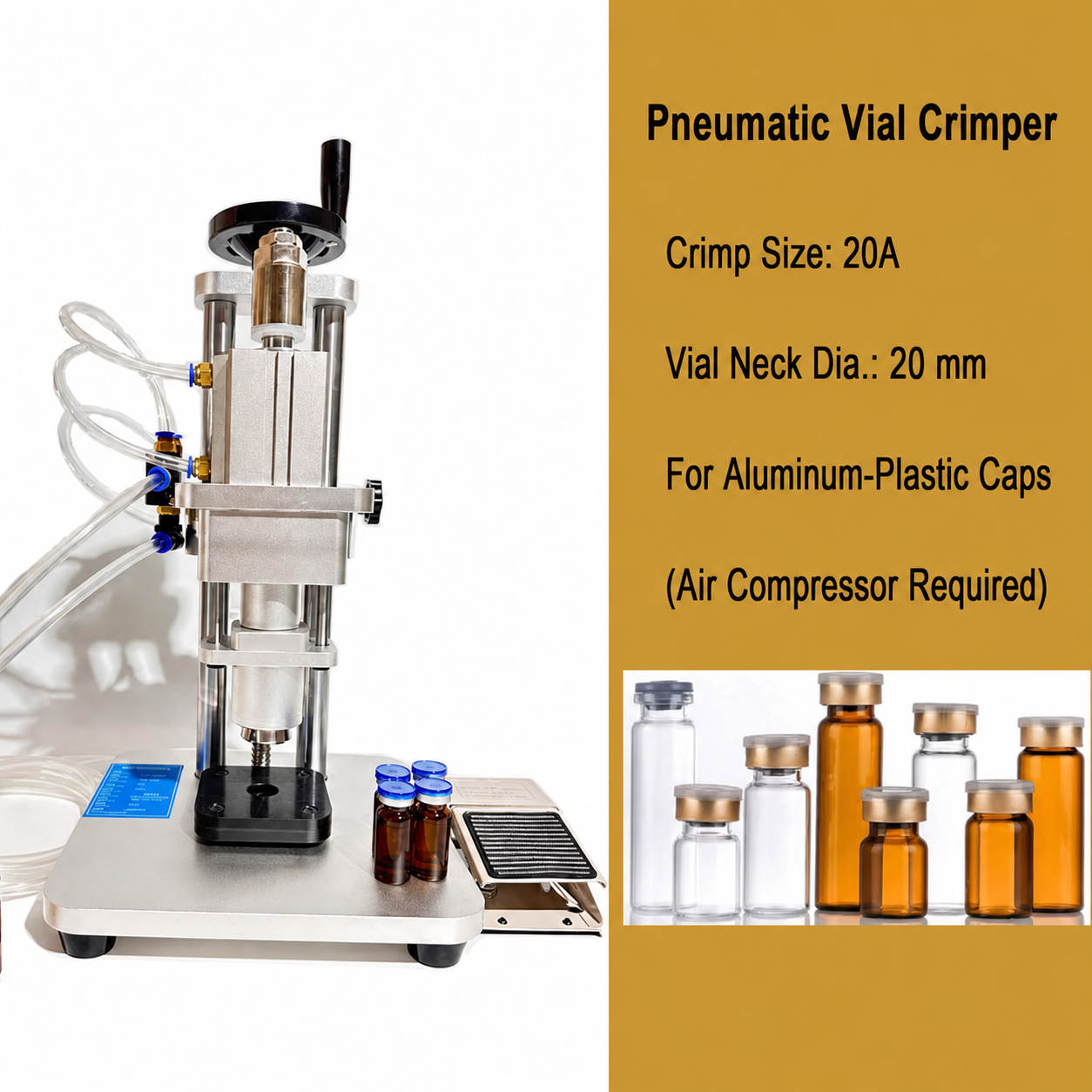

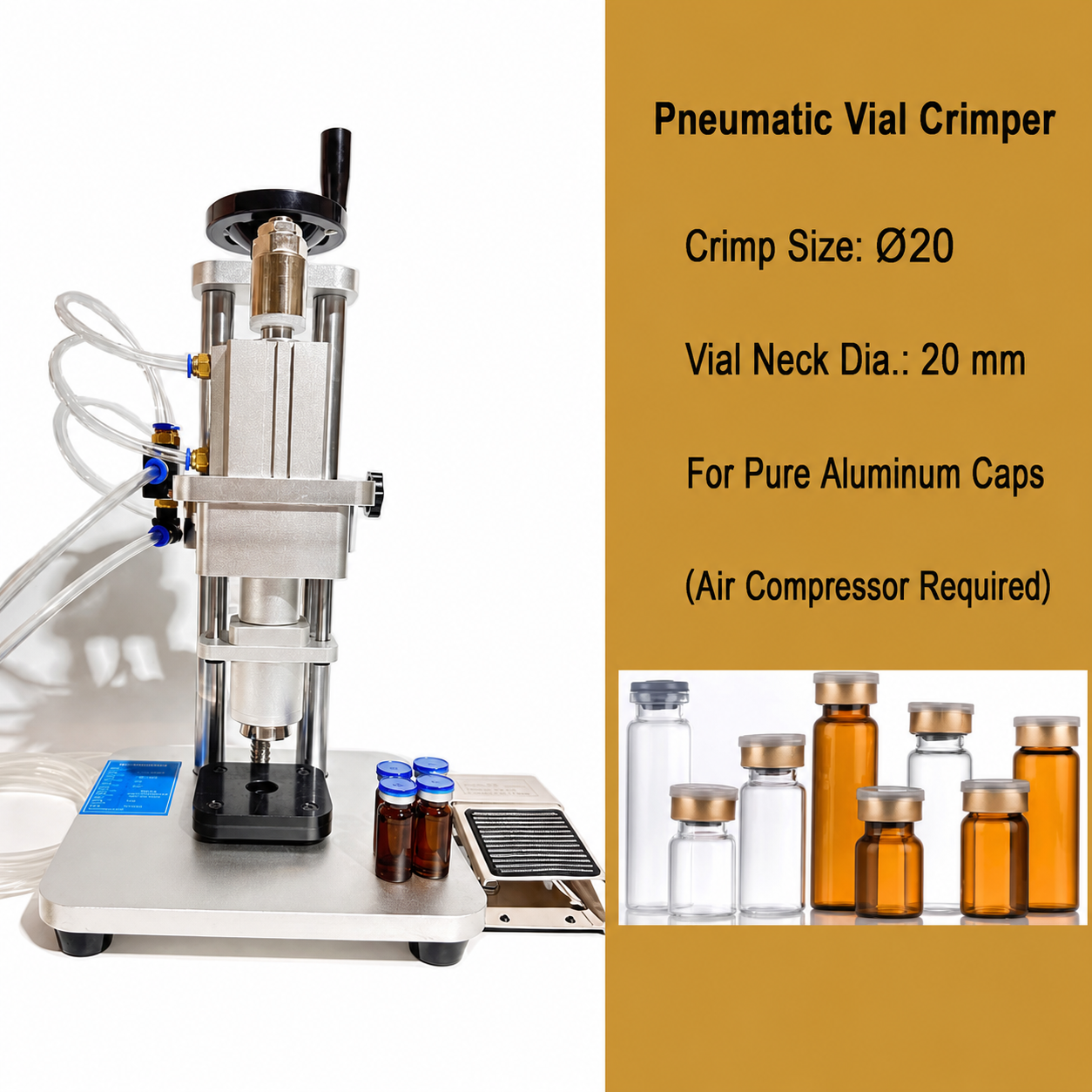

19.5-20.0 mm	20A crimping head	20 crimping head

Compatible Cap Types

Aluminum-plastic vial caps
Pure aluminum vial caps

b1 (mm): Vial mouth diameter, used to select the correct crimping head.

b2 (mm): Vial body diameter, used to determine the size of the custom base hole. (Customer-provided dimension required.)

h1 (mm): Vial body height.

Applications

The QERS-QD pneumatic vial crimping machine is used for vial cap crimping and for oral liquid bottle or infusion bottle cap sealing when the bottle mouth, cap type and selected crimping head match the application.

FAQ

What air pressure range does this vial crimping machine use?

The compressed air range is 0.4 MPa to 0.8 MPa.

What vial mouth sizes can be selected?

The selection guide includes 13 mm, 15 mm and 20 mm vial mouth ranges, with different crimping head models for aluminum-plastic caps and pure aluminum caps.

Which cap types are supported?

Compatible cap types include aluminum-plastic caps and pure aluminum caps.

How do I choose the correct crimping head?

Measure the vial mouth diameter, confirm whether the cap is aluminum-plastic or pure aluminum, then select the matching 13/13A, 15/15A or 20/20A crimping head.
