EPC-A12 Edge Guiding System Web Guide Controller + Sensor + Servo Actuator Edge Position Control

$677.86 USD

~~$0.00 USD~~ $677.86 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Color Photoelectric Type Ultrasonic Type

Two sensor options available: Ultrasonic Sensor or Photoelectric Sensor. Please select the required version when ordering.

Available Sensor Configurations:

Ultrasonic Type:

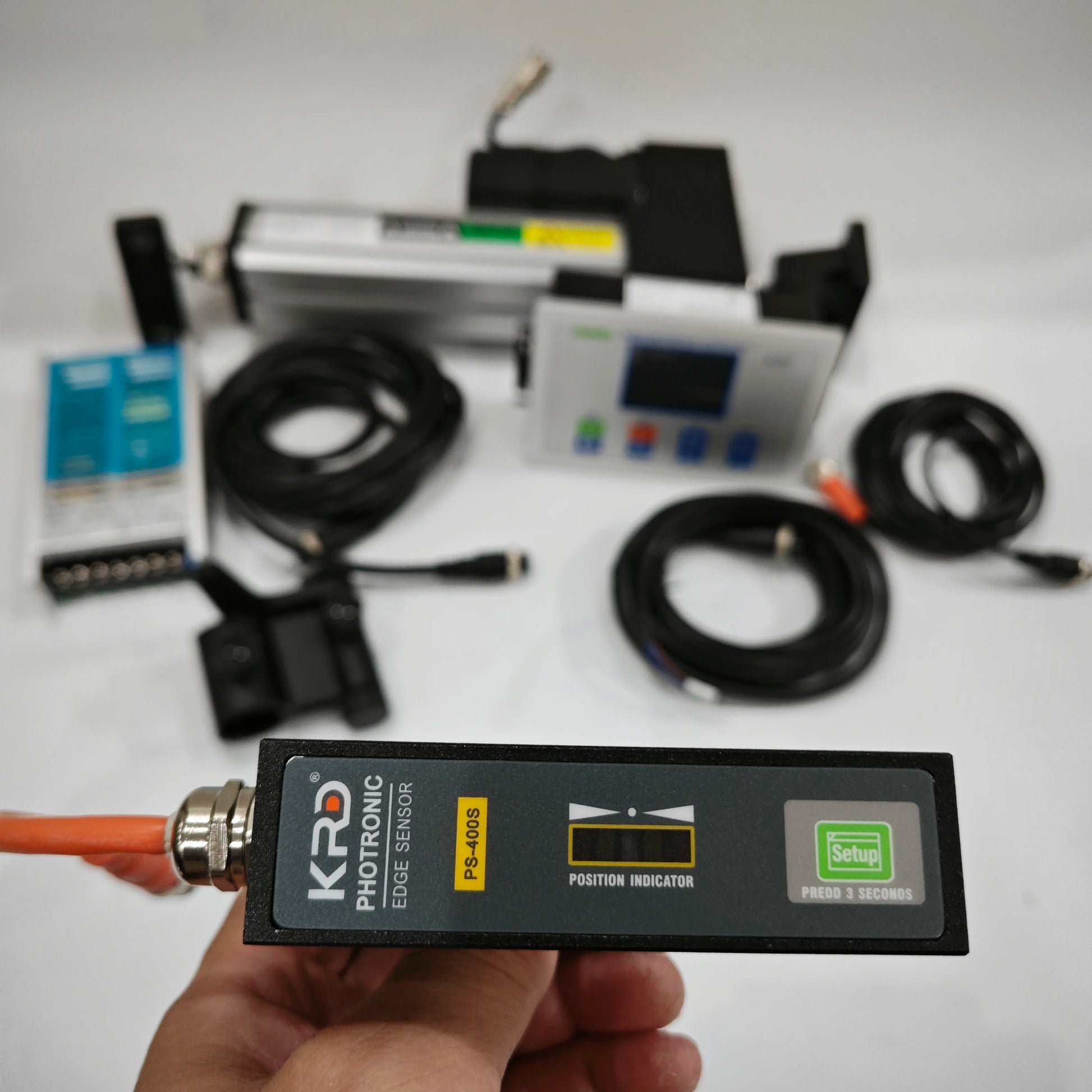

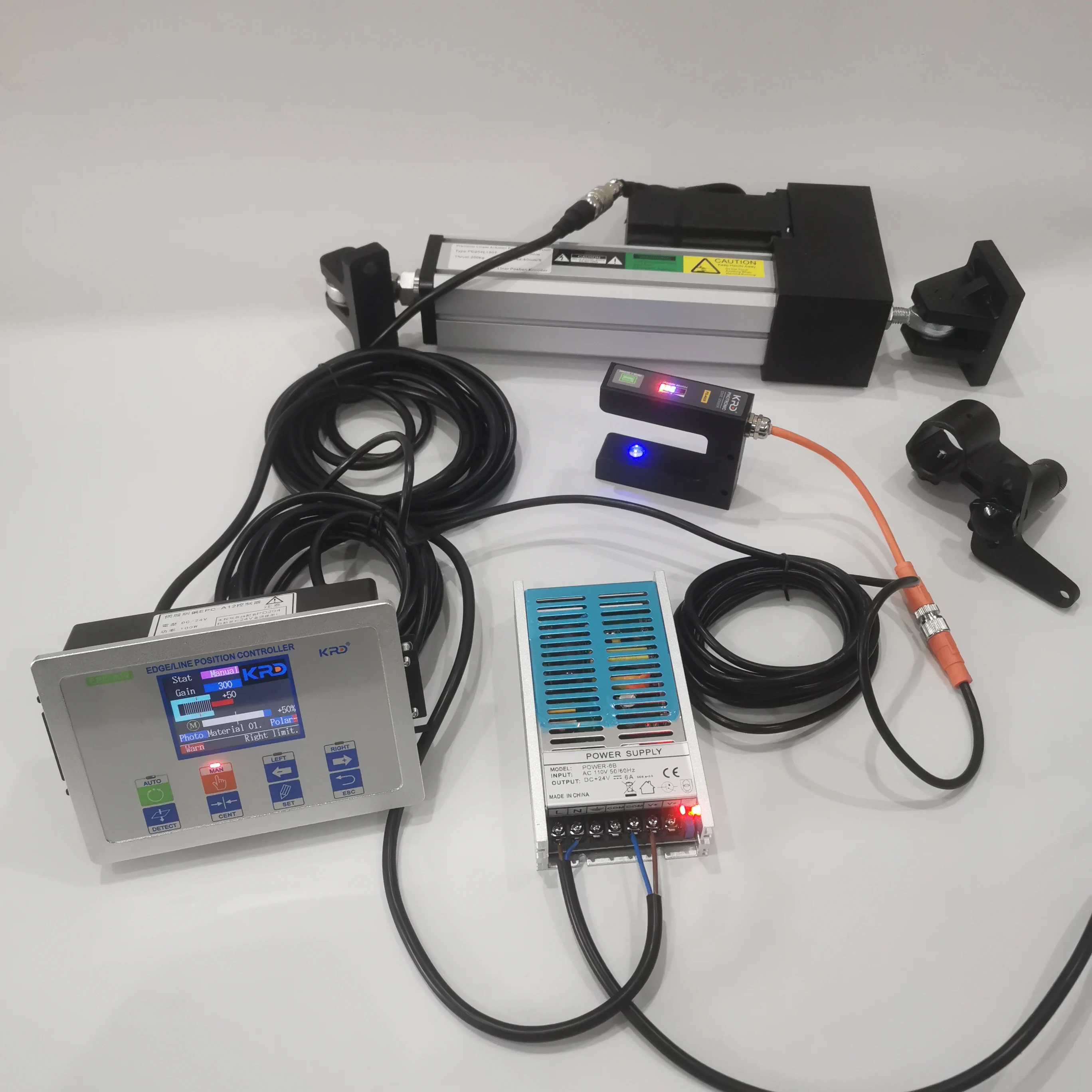

1 × EPC-A12 Edge/Line Position Controller

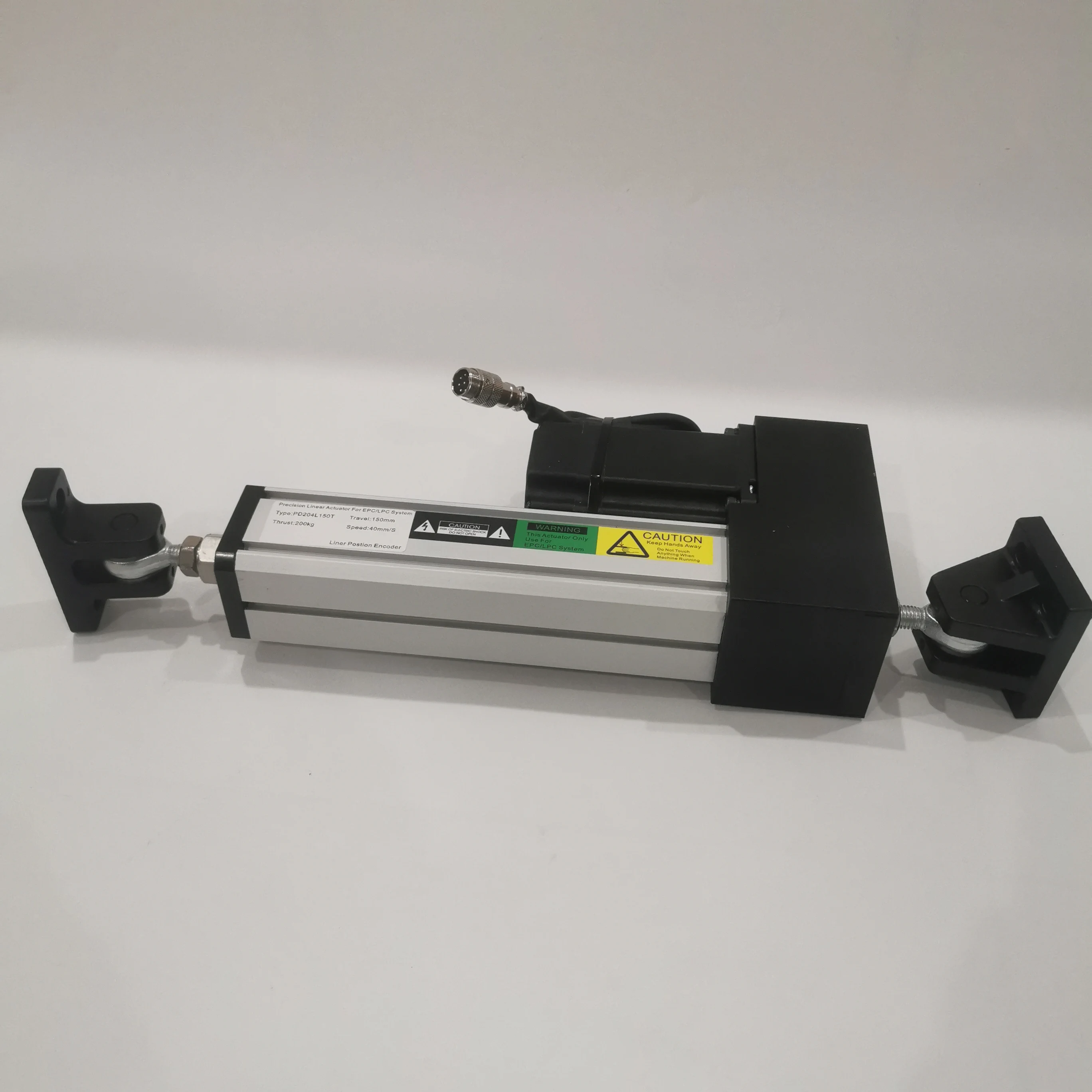

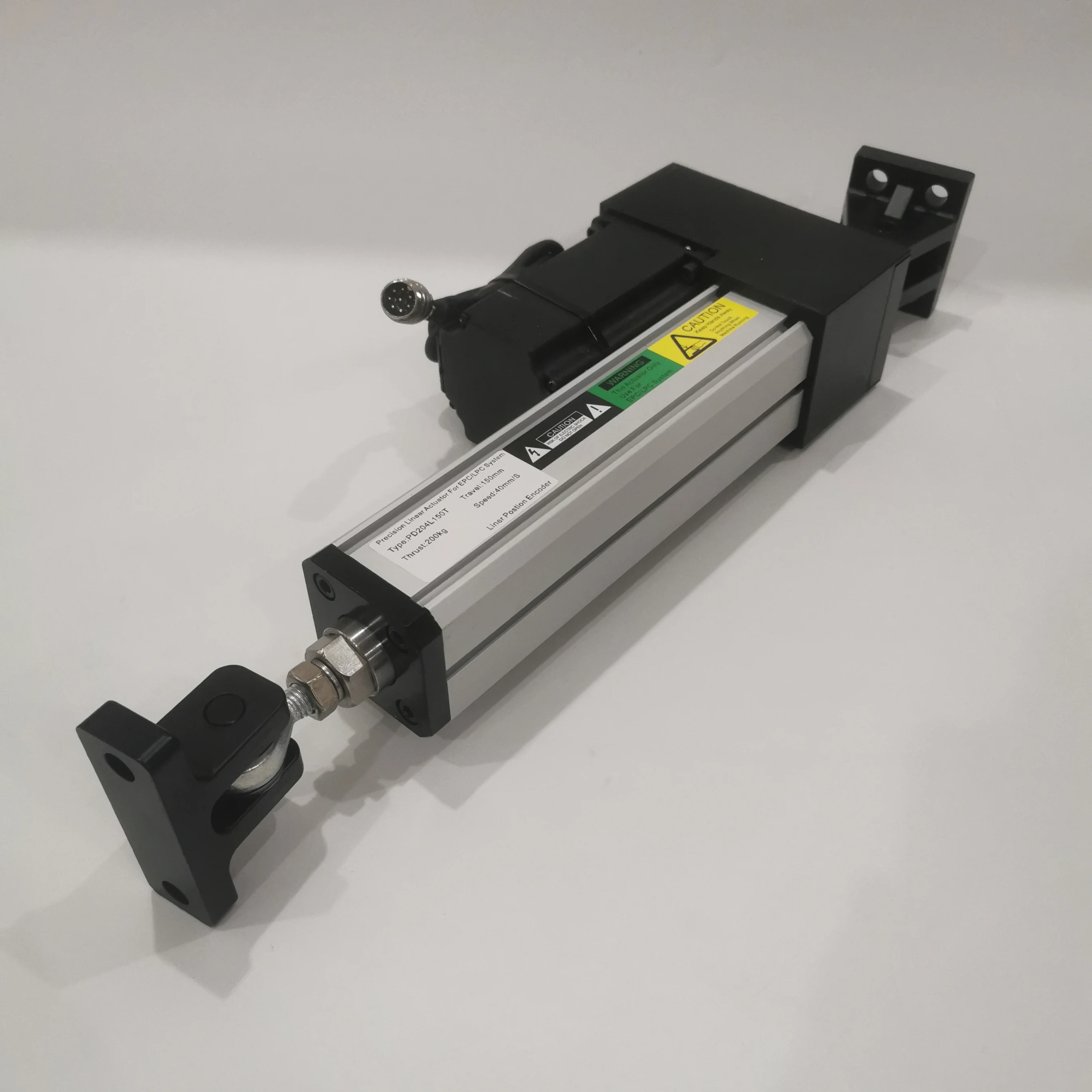

1 × Servo Actuator PD-204L150T
1 × US-400S Ultrasonic Sensor
Power Supply, Cables, Bracket Mount

Photoelectric Type:
1 × EPC-A12 Edge/Line Position Controller
1 × Servo Actuator PD-204L150T

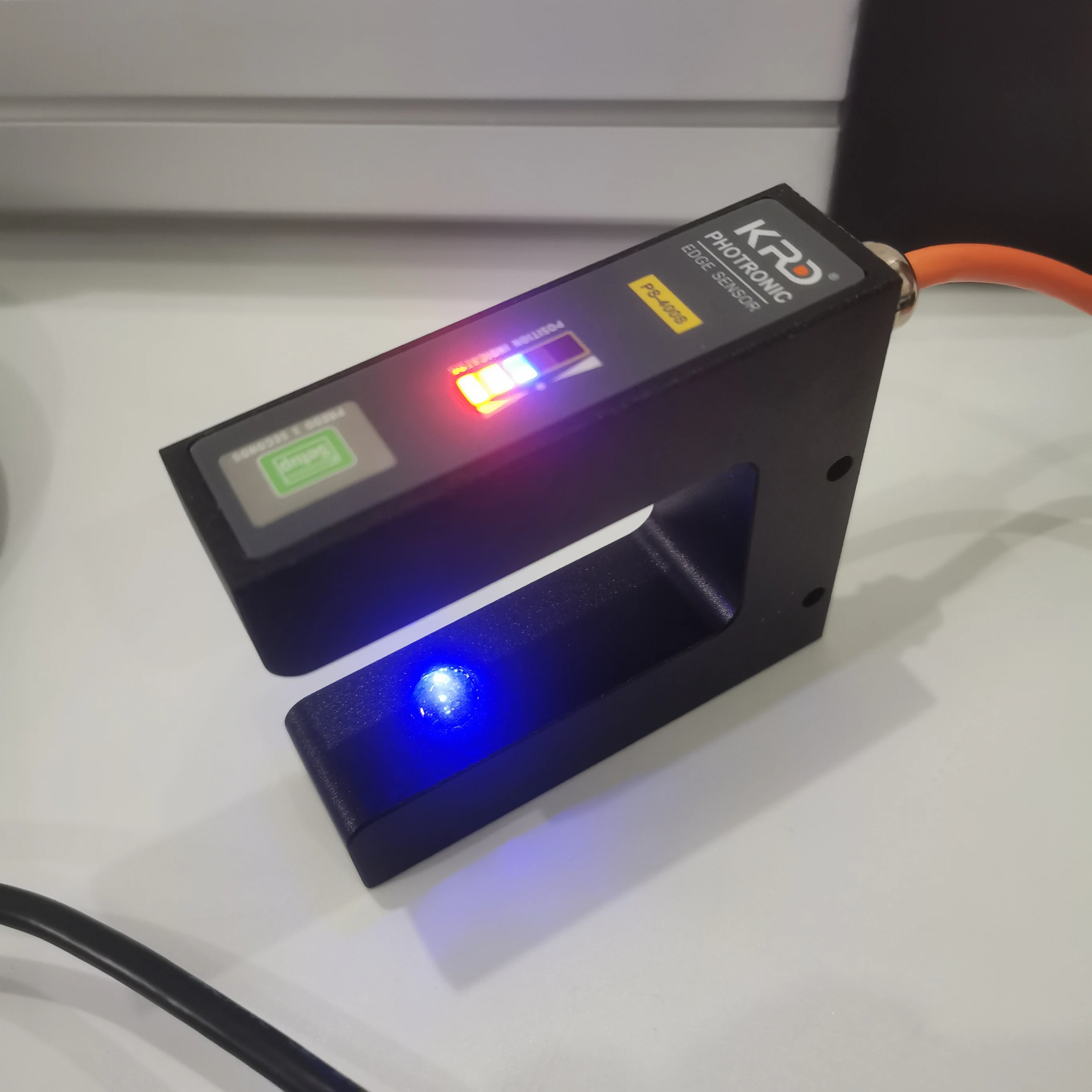

1 × PS-400S Photoelectric Sensor
Power Supply, Cables, Bracket Mount

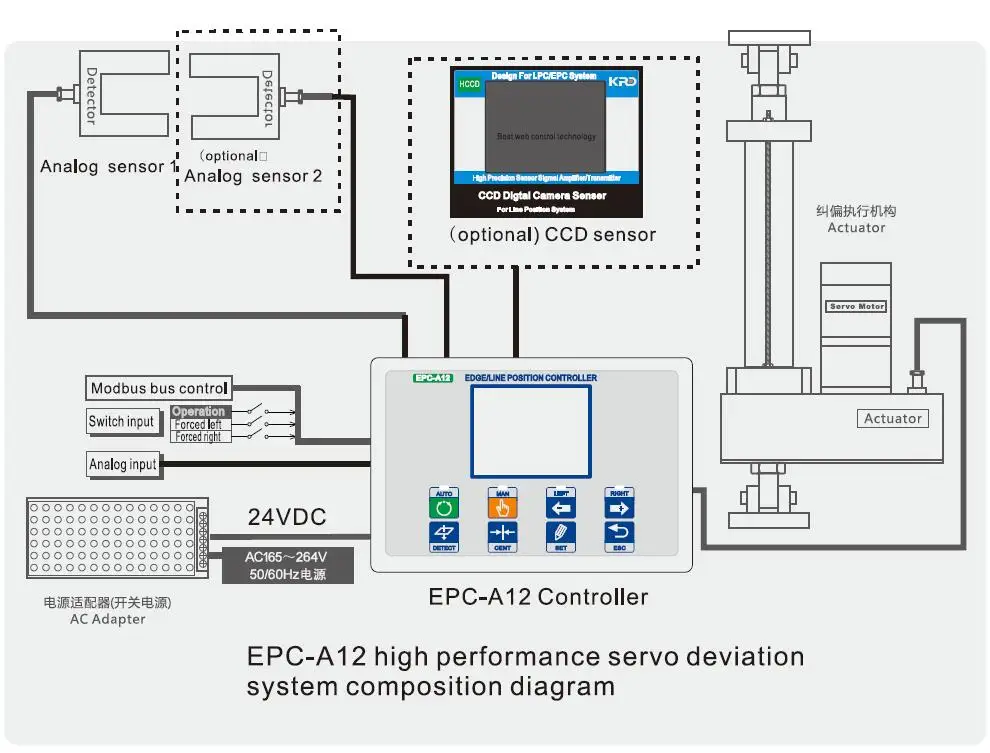

Product Introduction

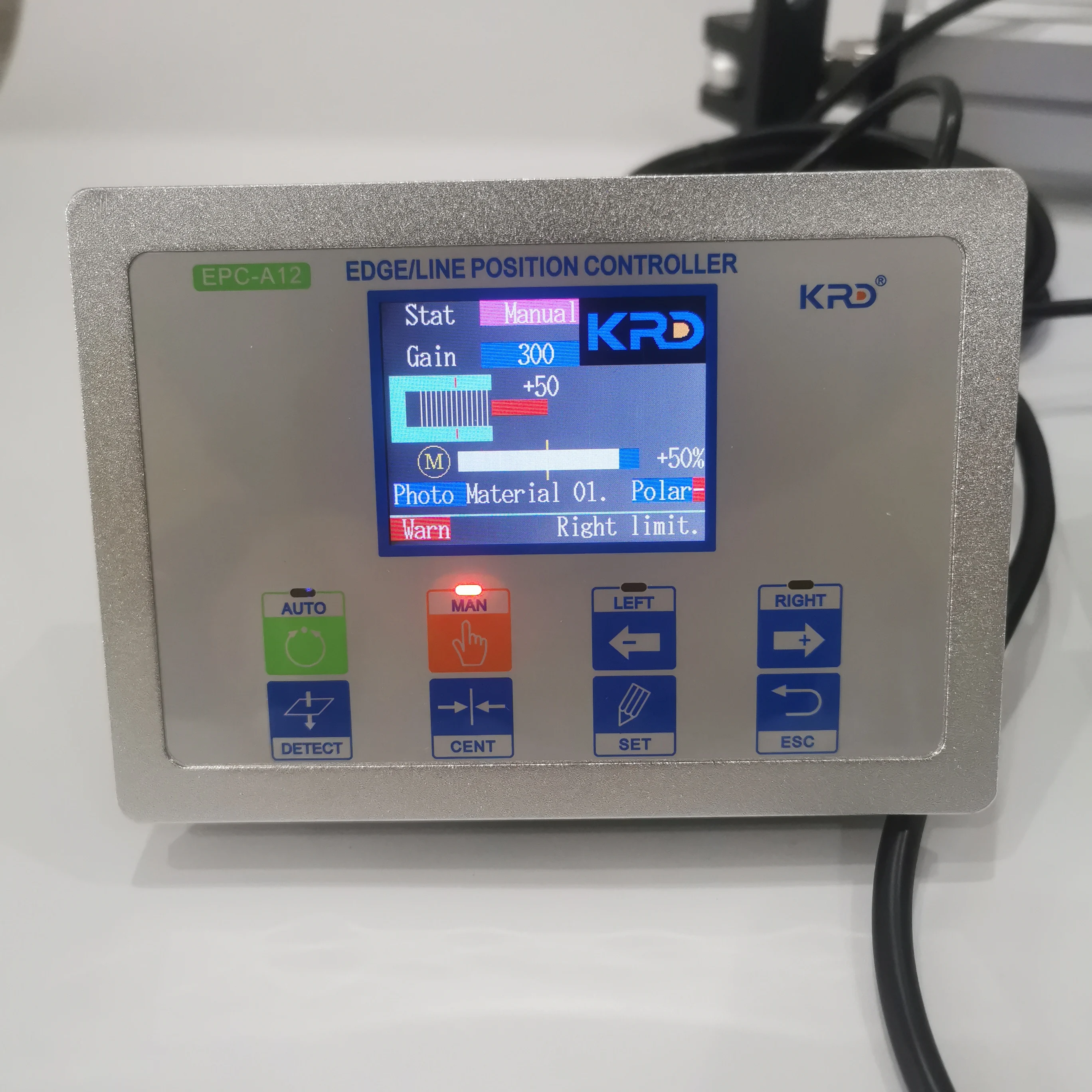

Thank you very much for using the EPC-A12 servo correction system! The system can connect various types of rectifying sensors and propeller, support EPC and side LPC with line, CPC pair, SPC misalignment (serpentine) and other correction methods. The color large-screen touch screen is a human-machine interface. It is easy to operate, beautiful and generous, with a setup wizard and online help system. Even if you use this system for the first time, you can easily complete the basic setup.

Functional characteristics

Motor high performance servo vector drive, fast speed response, support direct torque control, acceleration and deceleration, speed limit.
High speed CPU operation, supporting EPC and edge LPC line, CPC alignment, SPC misalignment (snake) and other correction methods.
It supports ultrasonic sensors, photoelectric sensors and CCD sensors.
Large screen color touch screen, human-machine interface is beautiful and practical, easy to operate.
Integrated setup wizard and help system, each operation page has help button to view concise help information.
The driver has encoder and absolute value linear position feedback device, adaptable to different mechanical stroke, no need of travel limit switch, and the position of position will never drift.
The propeller adopts servo motor to drive ball screw, with high accuracy, low noise and no maintenance.
With 3 high-speed analog inputs, it can connect two analog sensors and one external control analog (such as fine-tuning position, snake speed, etc.).
The switch input with 3 photoelectric isolation can set different functions individually.
Multiple software and hardware protection measures are stable and reliable, and have strong anti-interference ability. There are different emergency solutions for failure of components. Ensure uninterrupted operation for 24 hours.

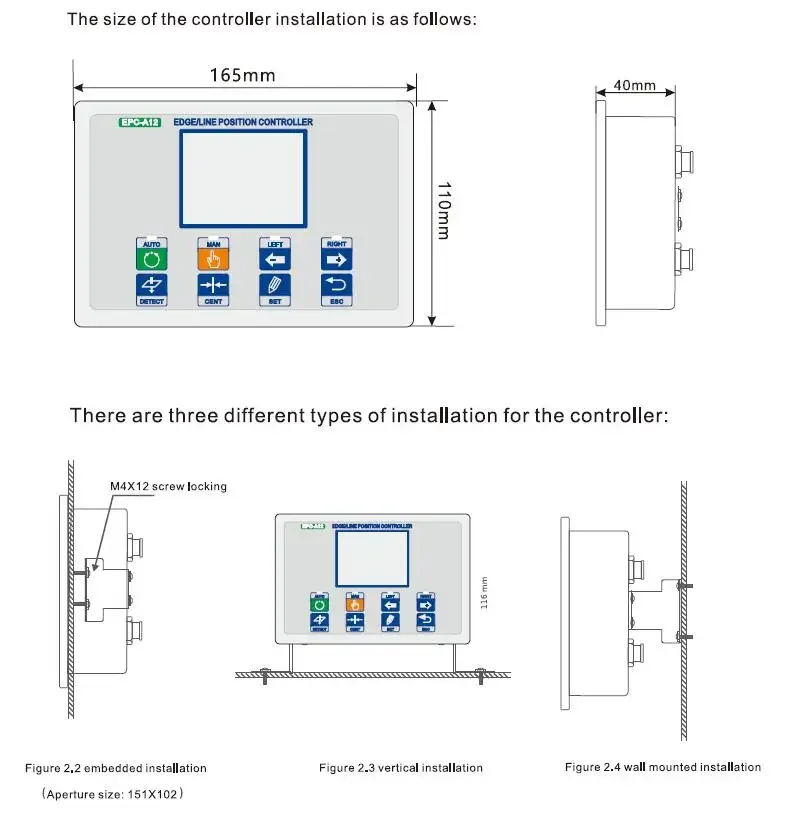

Flexible installation.

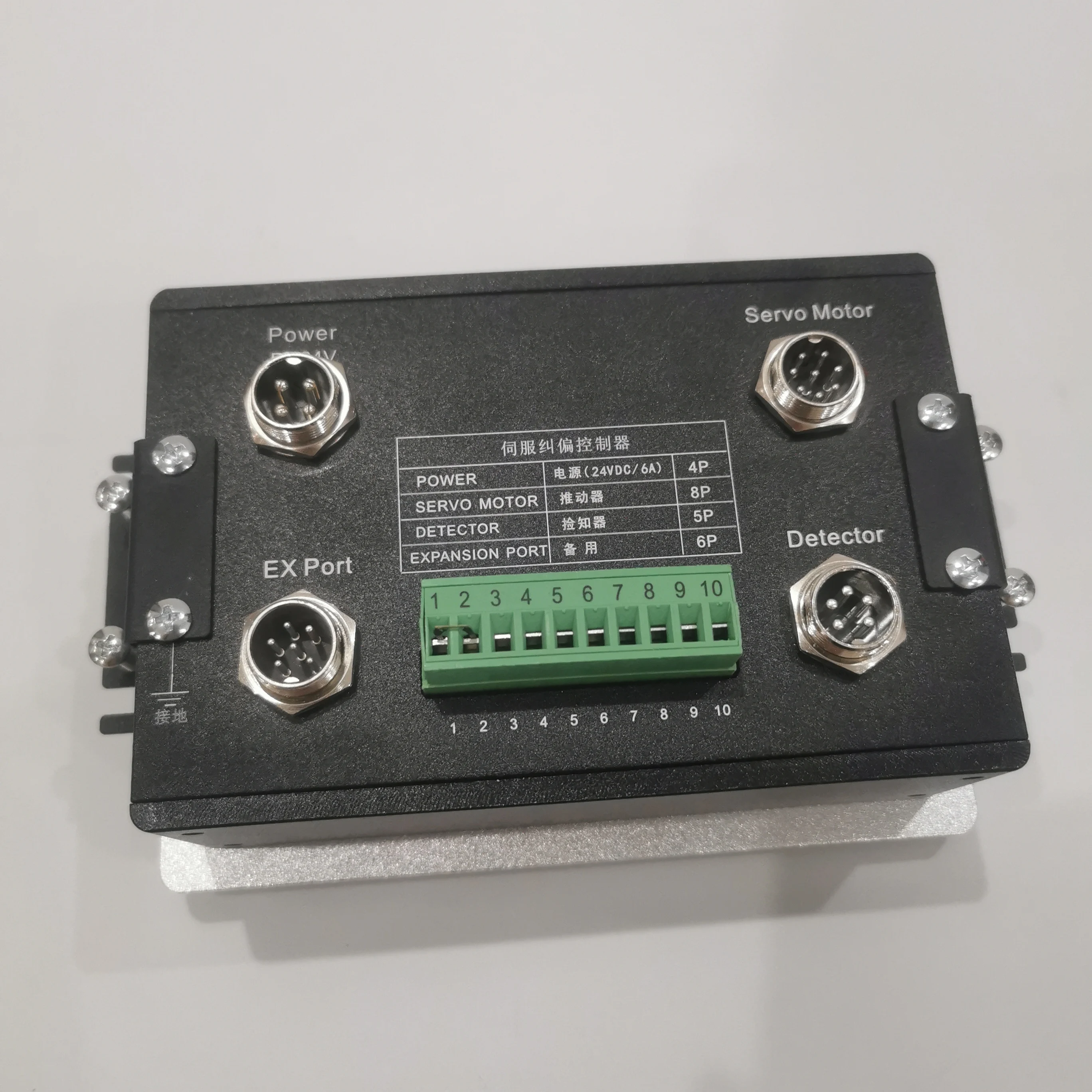

EPC-A12 Controller technical parameter

Power supply voltage	DC24V ~ 45V, standard 24V
Motor driving capability	AC24V ~ 45V, 10A Max
Encoders power supply voltage	DC15V, 200mA Max
Analog input	3 channel 0 ~ 5V, impedance 20K
Sensor power supply voltage	DC12V, 350mA Max
Rectifying response time	0.5ms
Analog input resolution	12 bit ADC
Switch input	3 road NPN
Correction method	3 way NPN unilateral/ line rectification, alignment correction, snake correction.
Support sensor type	Ultrasonic sensor, photoelectric sensor, CCD sensor
Drive speed	1mm/S~75mm/S
Drive thrust	100KgF-1500Kgf, selectable
ESD protection	IEC1000-4-2, ±15Kv(Air), ±8Kv( Contact )
Screen display	2.8 inch 260 thousand color or 4.3 inch 260 thousand color
Human-computer interaction	TFT touch screen
Protection grade	Ip53

Photoelectric Sensor Technical parameters

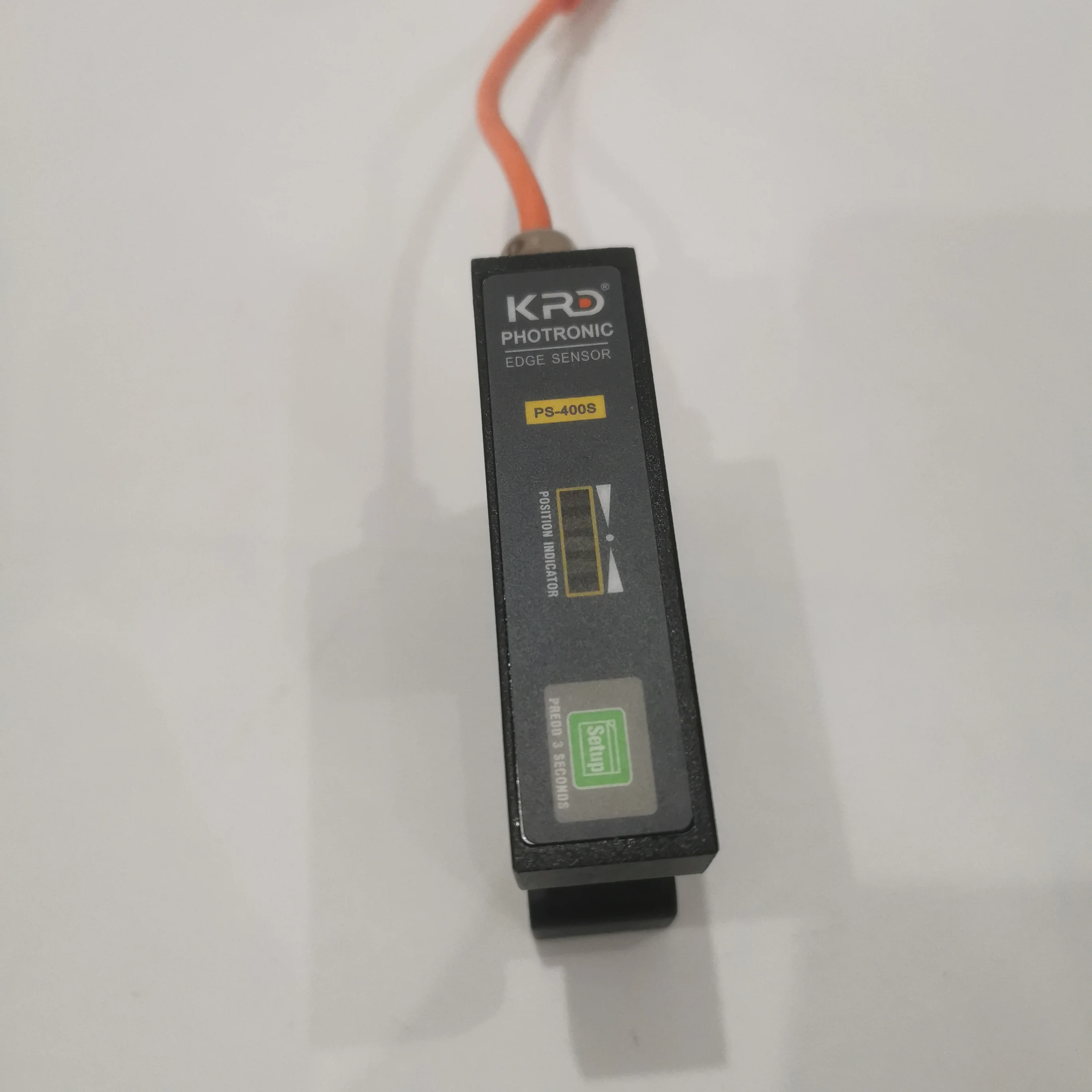

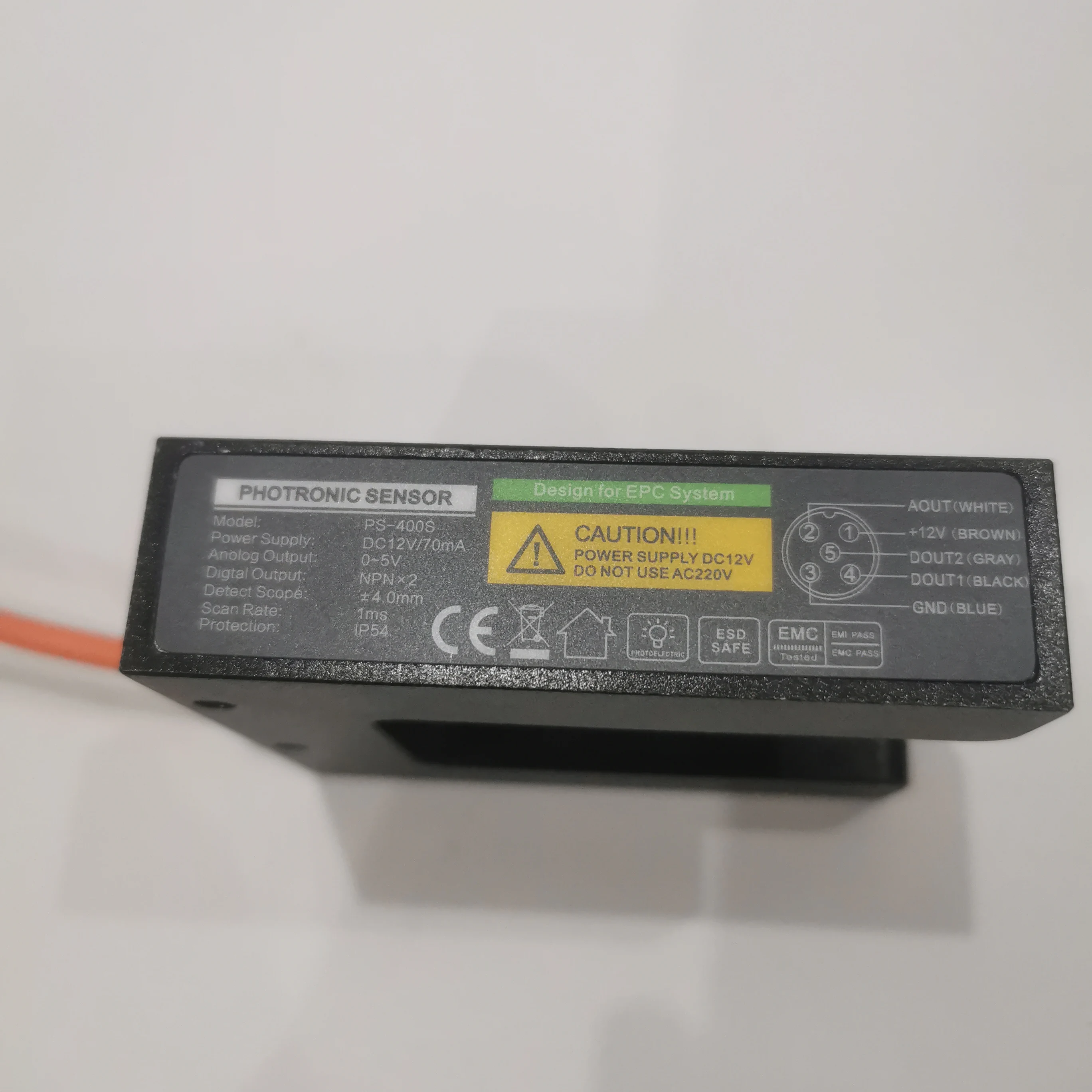

photoelectric sensor	PS-400S
Power supply	DC-12V
Power Output	DC 0-5V
Detective range	8mm(+/-4mm)
detective accuracy	0.1mm
detector methods	Photoelectric reflection
Frequency	100KHZ
Shell material	Aluminum alloy

Ultrasonic Sensor Technical parameters

Ultrasonic sensor	US-400S
Power supply	DC-12V
Power Output	DC 0-5V
Detective range	8mm(+/-4mm)
detective accuracy	0.1mm
detector methods	Ultrasonic reflection
Frequency	100KHZ
Shell material	Aluminum alloy

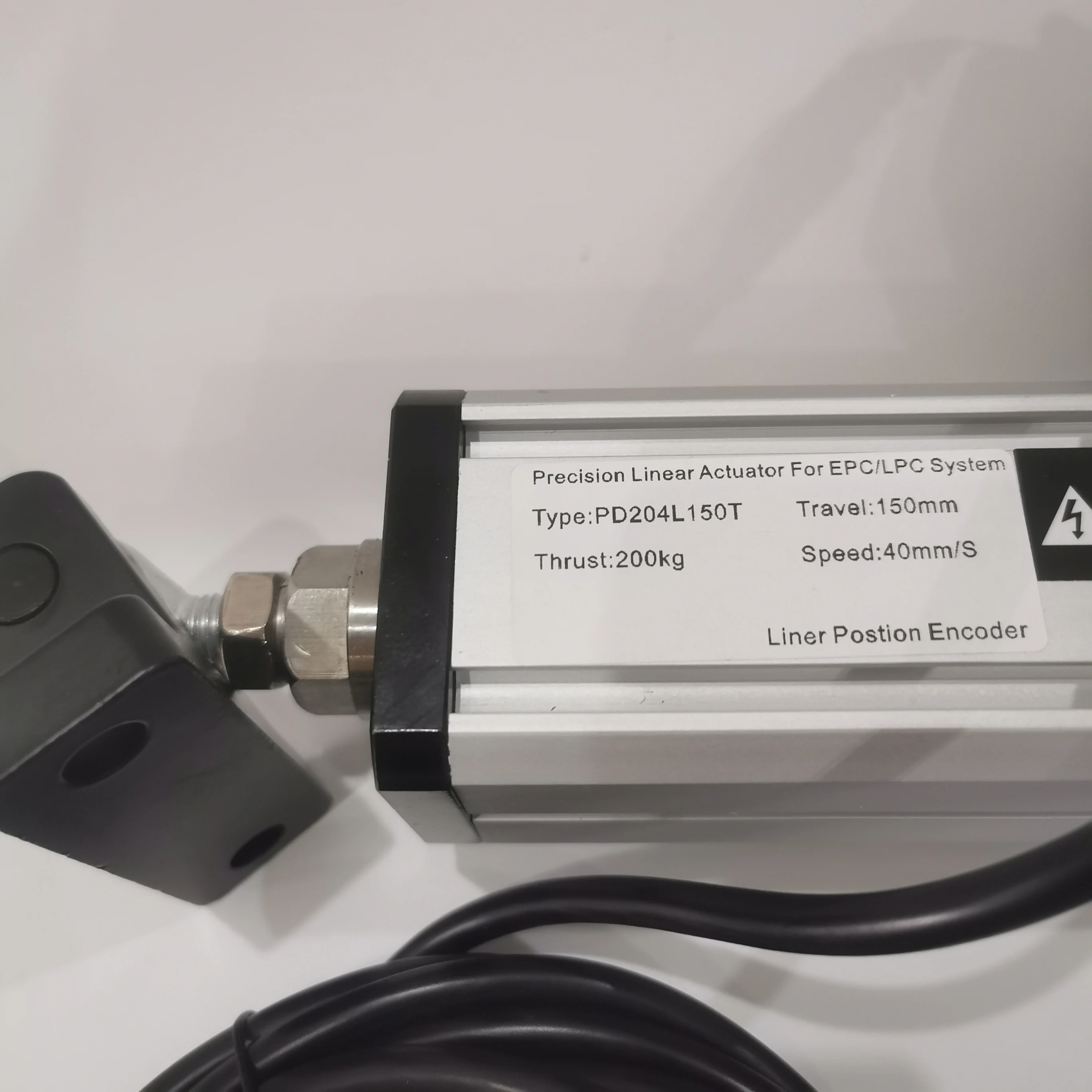

Servo Actuator Parameter

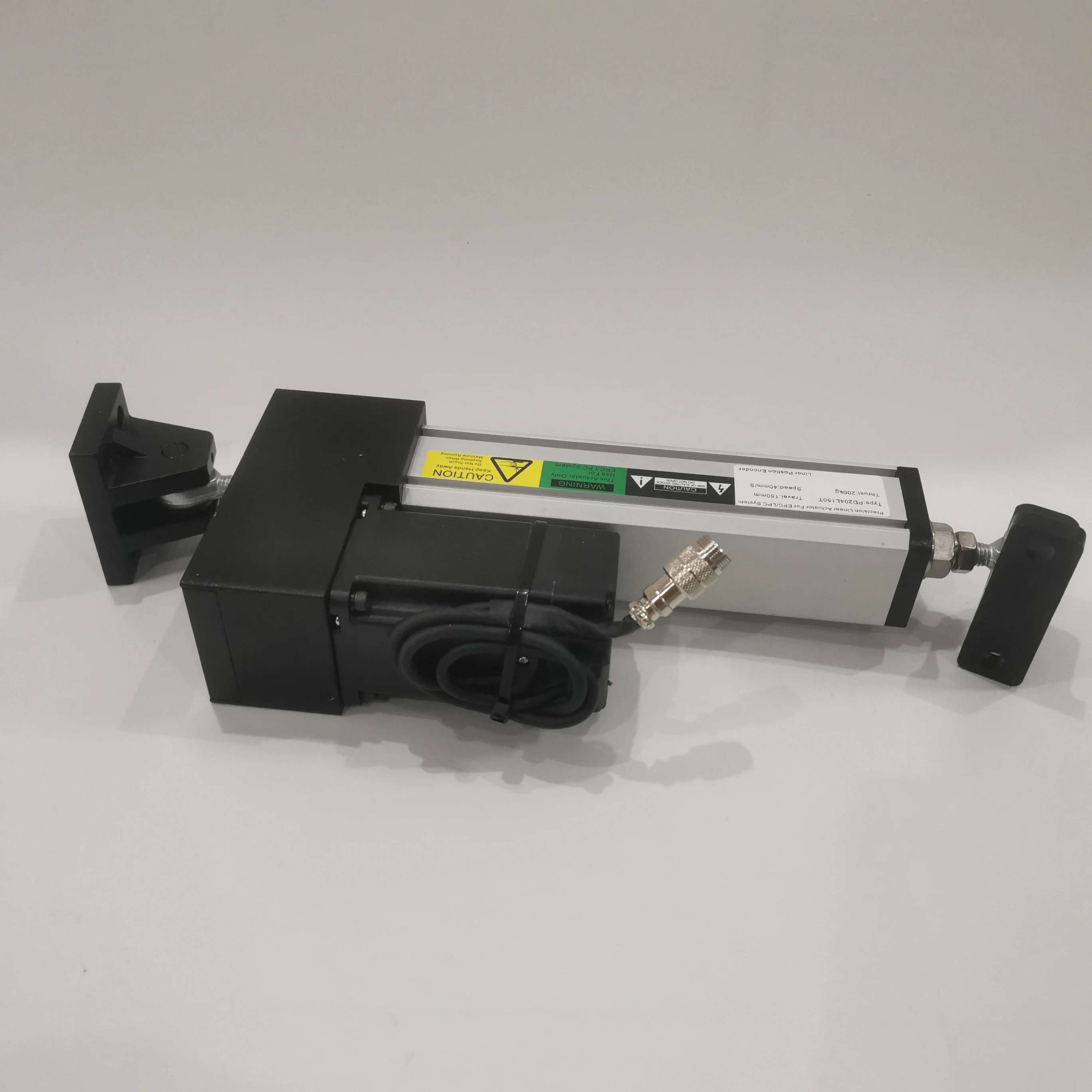

Model No	PD-204L150T
Max thrust	200KG
Rod Stroke	150mm(+/-75mm)
Max Driving Speed	40mm/s

Application

Textile machinery: fiber twisters, treatment machines, weaving machines
Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
Machine tool systems: lathes, Millers, steel extruders, CNC lathes, specialized machinery
Transportation equipment: hoists, feeders, conveyors, rollers, winders
Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machinesusers
