DG-13 Professional Drill Bit Sharpener | Precision Grinder 3-13mm 90°-140° Drill Grinding Machine 110V/220V

DG-13 Professional Drill Bit Sharpener-Precision Grinder drill grinding machine Sharpening 3-13mm 90°-140° 220V/110VProduct Overview

Enhance your drilling operations with our Drill Bit Cutter Grinder, a state-of-the-art machine designed for precision sharpening of drill bits. Whether you're working with high-speed steel or carbide drills, our grinder ensures optimal performance and longevity for your tools. With user-friendly features and robust construction, this grinder is a must-have for professionals and businesses alike.

Key Features

• Precision Grinding: Achieve accurate sharpening with adjustable settings for drill diameters ranging from Φ3mm to Φ30mm.

• Versatile Compatibility: Compatible with both high-speed steel and carbide drill bits.

• Ease of Use: Simple operation with clear instructions and adjustable components.

• Durable Construction: Built to last with high-quality materials and a robust design.

• Safety First: Equipped with safety features such as a secure side cover and fastening knobs to prevent accidents.

Technical Specifications

Included Accessories

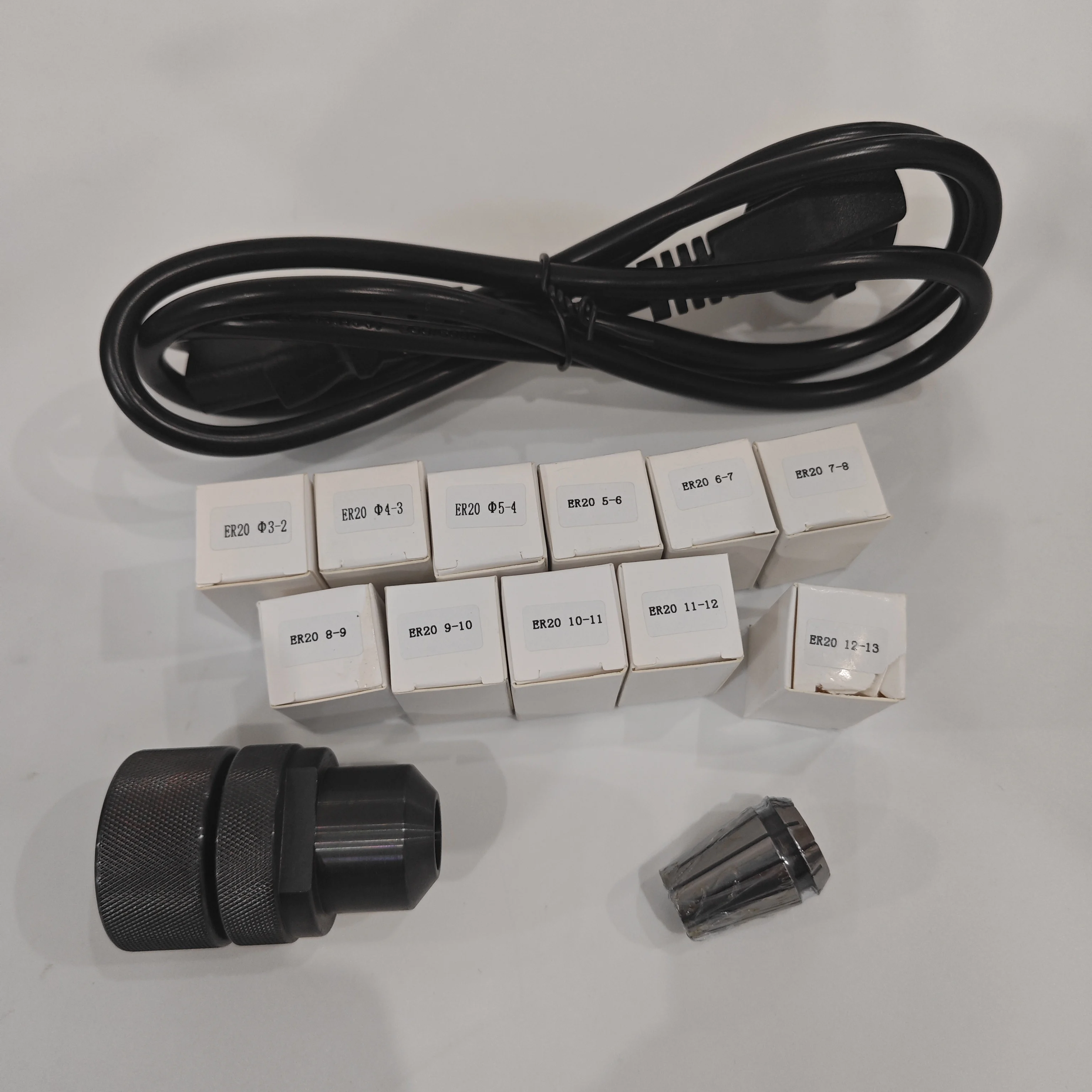

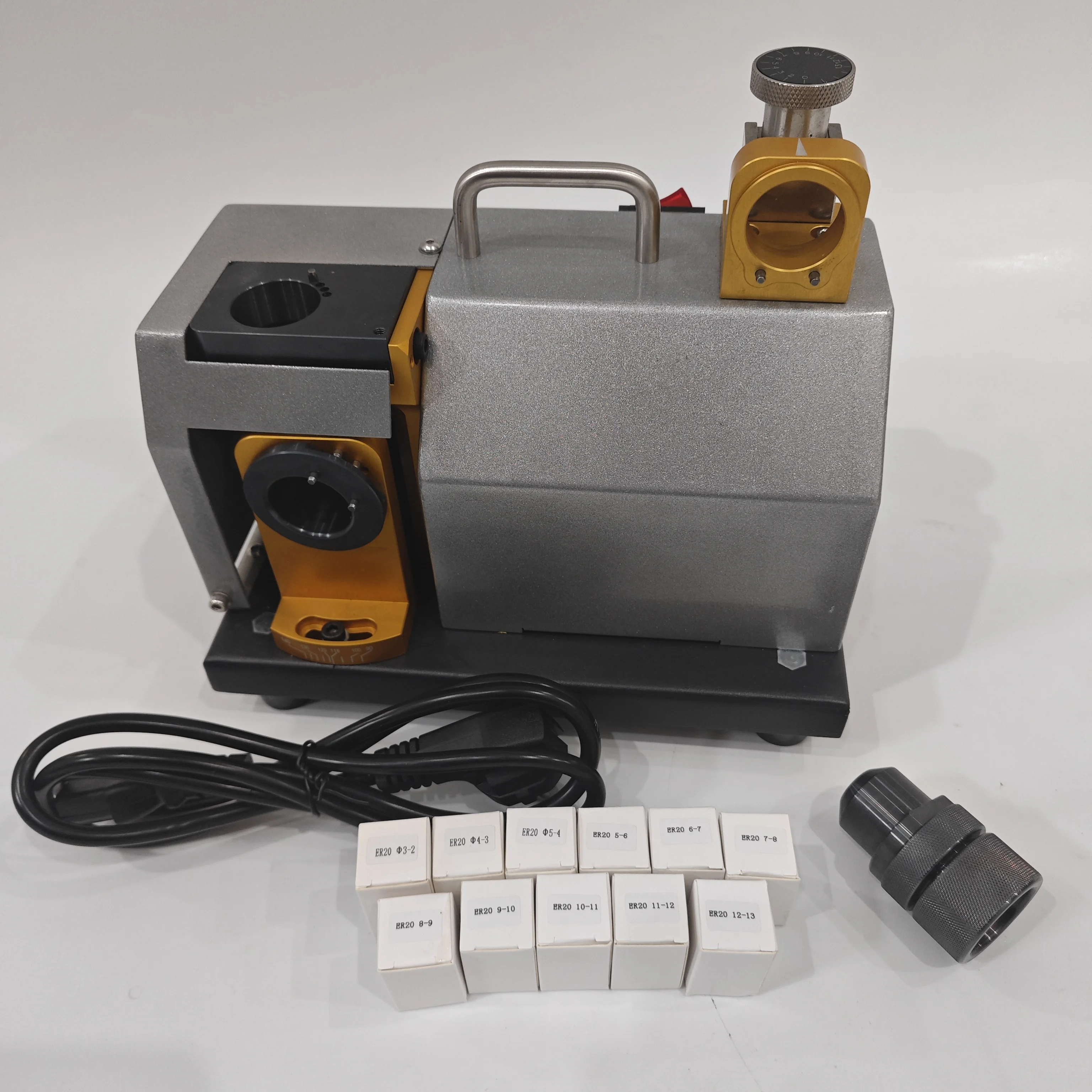

Standard Accessories:

• Hex Wrench Set

• ER Collets

• CBN Diamond Wheel #230 (for High-Speed Steel Drills) or  SDC#400 Diamond Wheel (for Carbide Drills)

     Choose different grinding wheels to grind drill bits made of different materials.

Use a CBN grinding wheel for grinding high-speed steel materials.

Use an SDC grinding wheel for grinding tungsten carbide alloy materials.

Please select the appropriate grinding wheel based on the material of the drill bits you are grinding to avoid issues such as ineffective grinding or poor grinding results.

• operate

1. Preparation:

• Select the appropriate collet based on the drill diameter.

• Insert the collet into the holder at the correct angle.

• Place the drill bit into the collet, leaving a 35mm extension, and secure it without over-tightening.

2. Setting Drill Length:

• Adjust the scale ring to the required drill size.

• Insert the collet chuck set into the preset length bracket and lock it in place.

• Tighten the ER Collet Holder and ensure the drill cutting edge is parallel to the slot.

3. Point-Angle Grinding:

• Insert the collet chuck set into the point angle bracket.

• Lightly touch the wheel and rotate until the grinding sound disappears.

• Rotate the drill 180° and repeat the process for the other side.

4. Center Point Trimming:

• Insert the collet chuck set into the grinding unit.

• Place the collet chuck set upright and grind until the sound disappears.

• Rotate 180° and repeat for the other side.

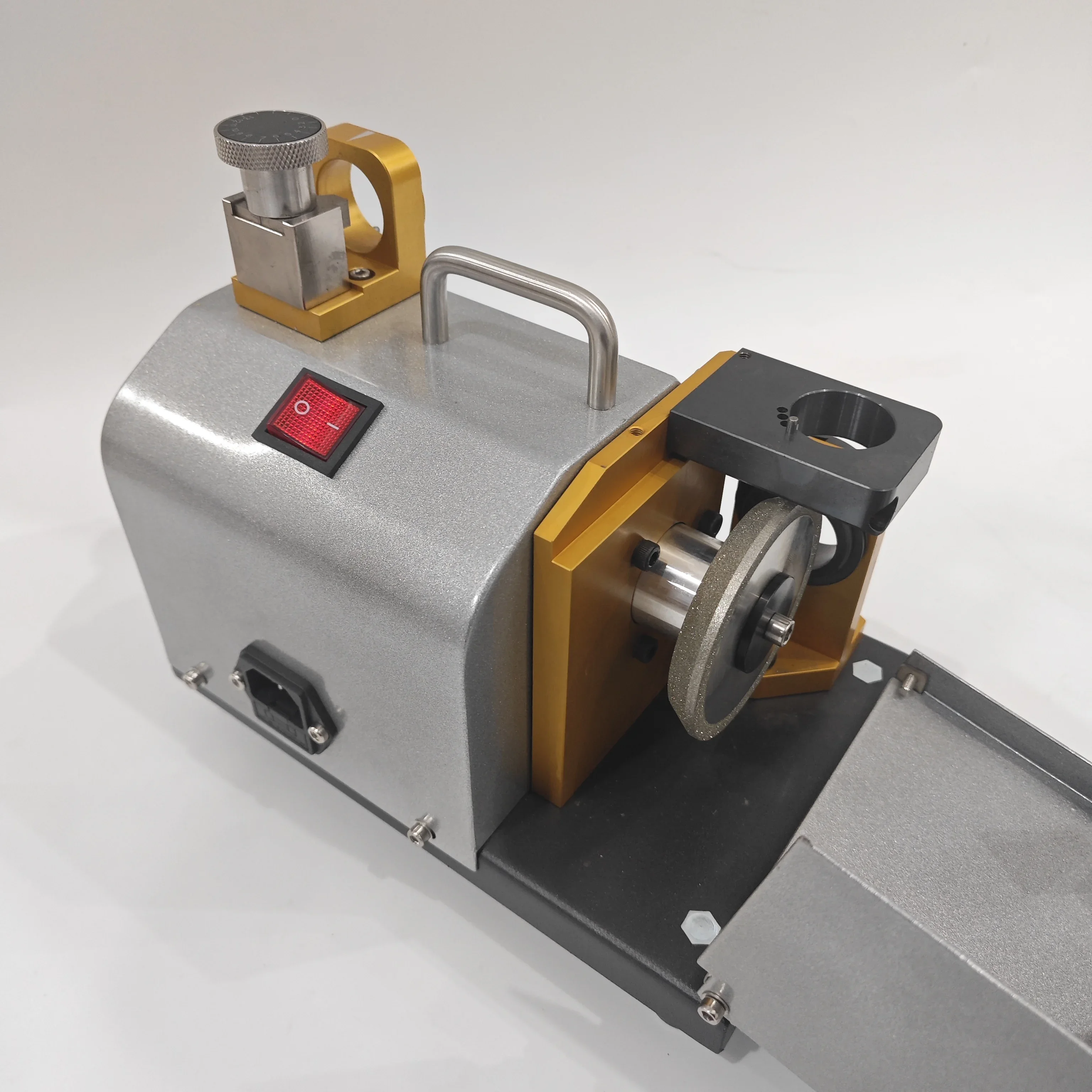

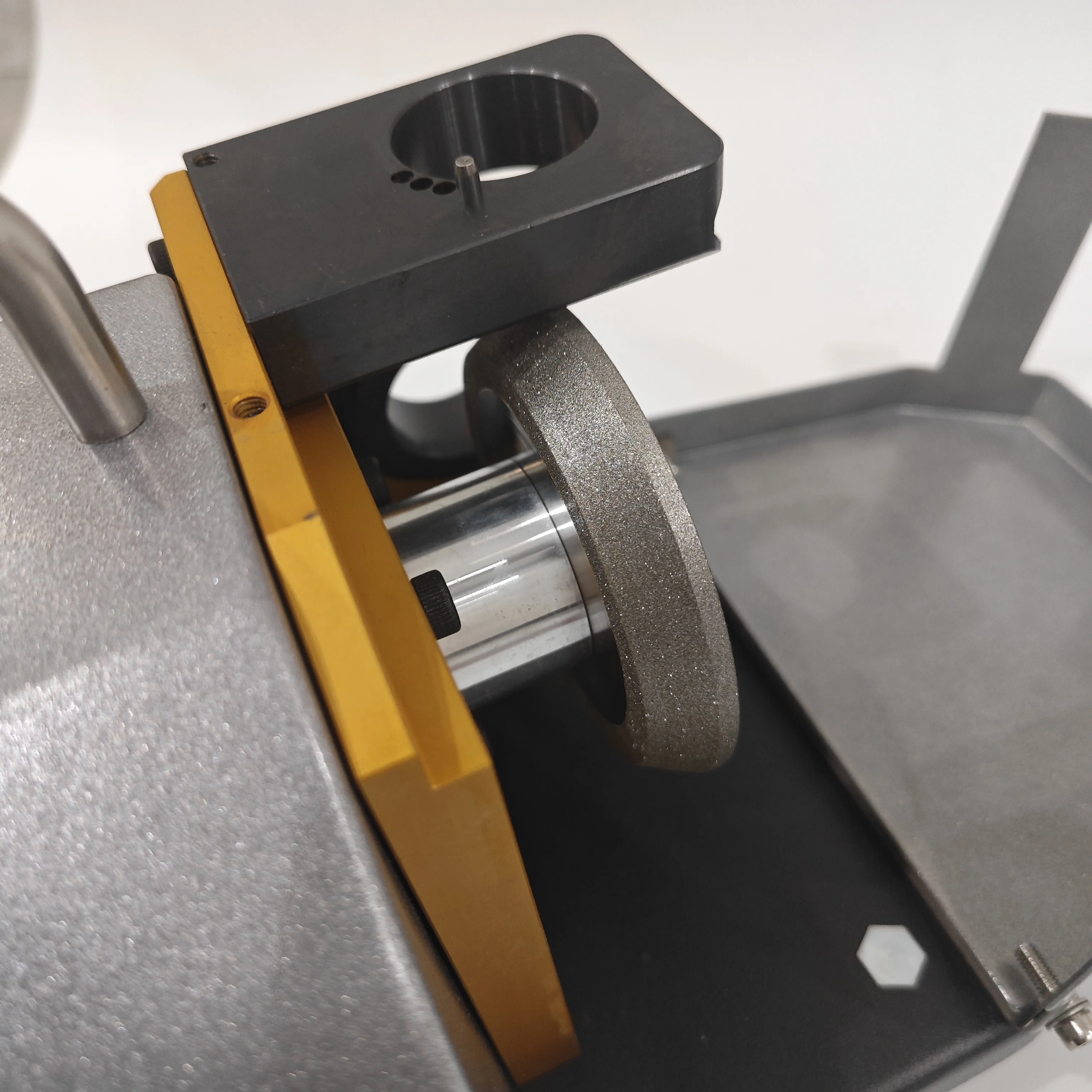

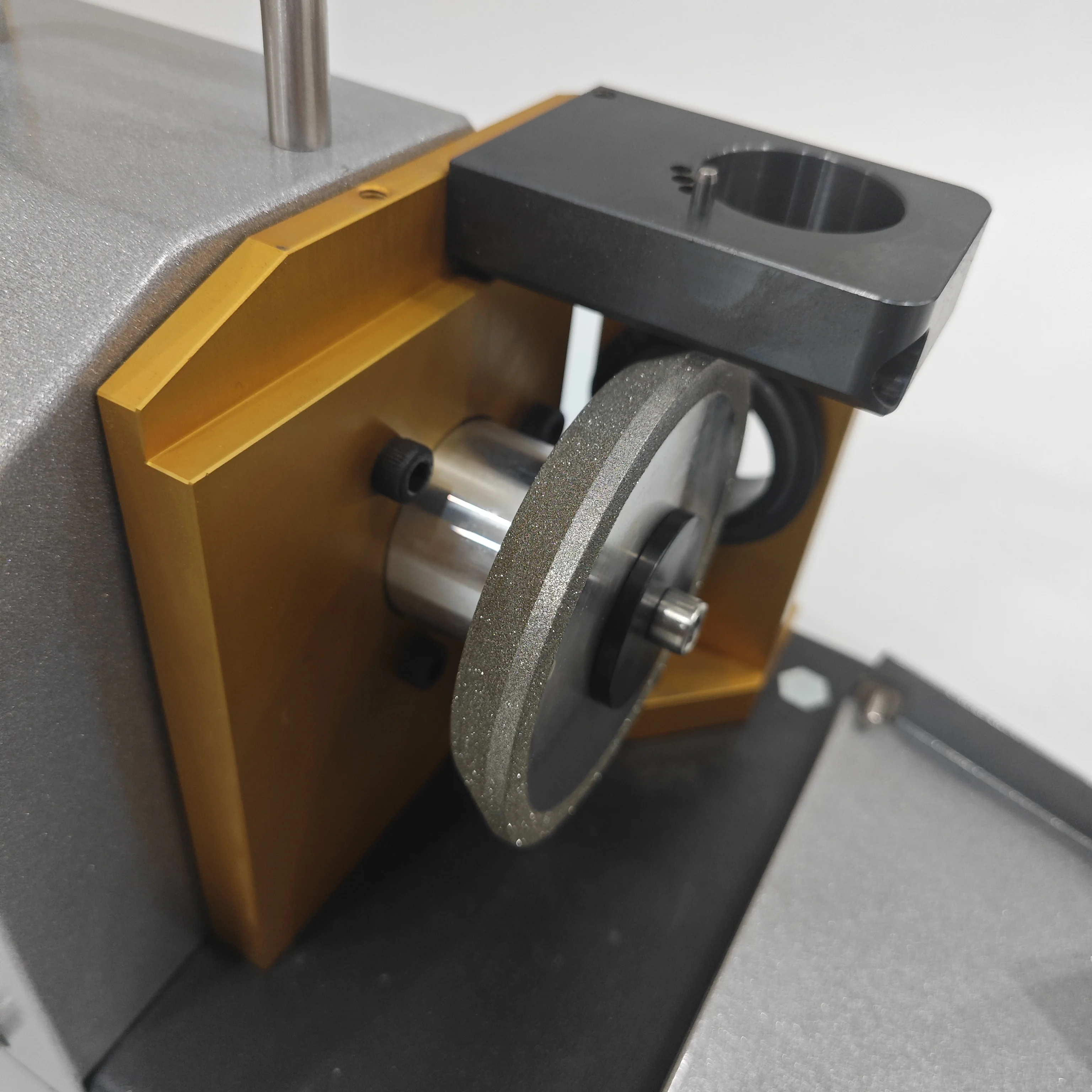

5. Changing the Grinding Wheel:

• Loosen the side knob and open the side cover.

• Use a 4mm hex wrench to remove the old wheel and replace it with a new one.

• Secure the side cover and fasten the knob.
