What This Meter Is

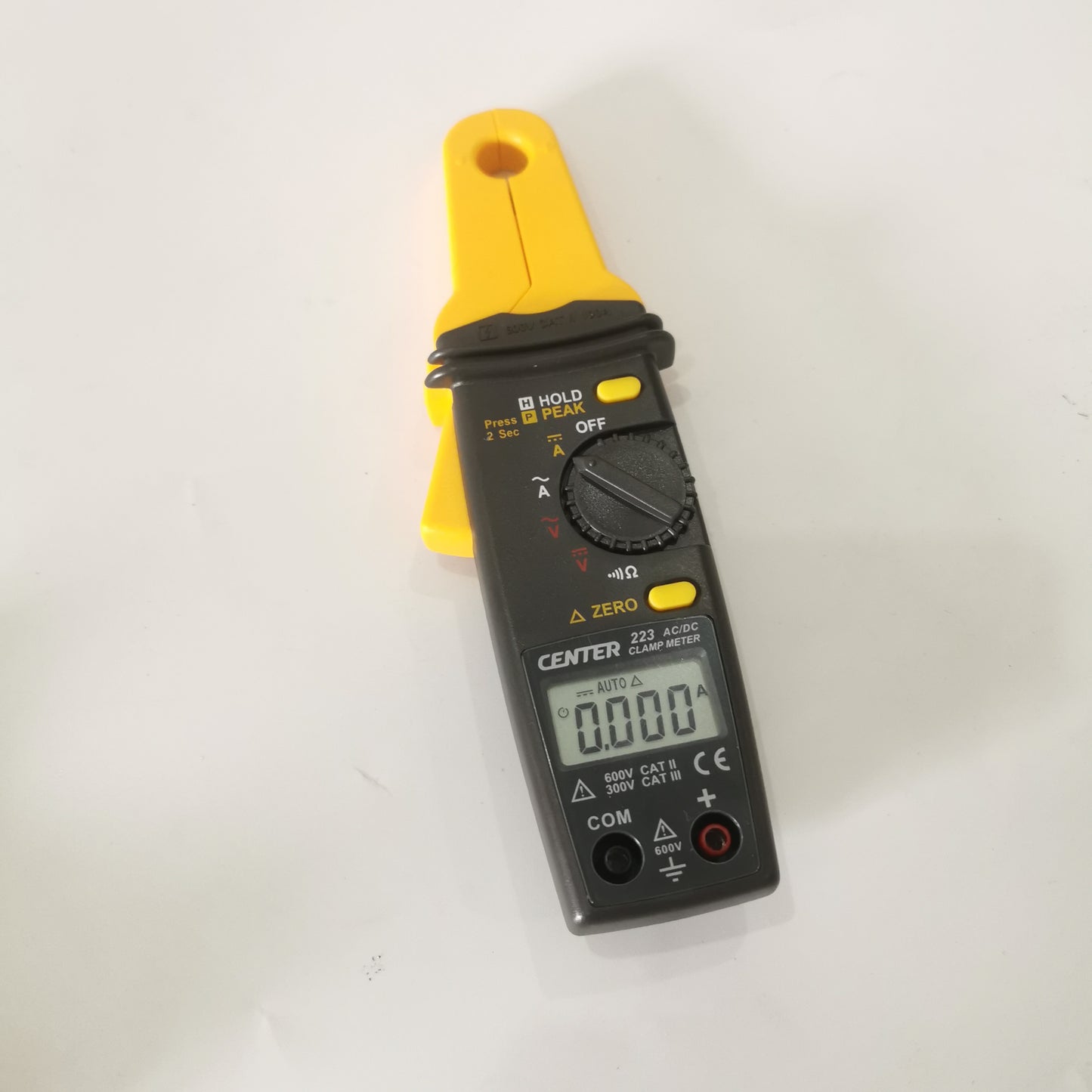

The CENTER 223 is a mini AC/DC clamp meter for compact electrical testing work. It measures AC/DC current up to 100A, AC/DC voltage up to 600V, resistance up to 10 kOhm, and includes autoranging, peak hold, data hold, touch zero, analog signal output, and auto power off.
Key Specifications
| Specification | Value |
|---|---|
| Model | CENTER 223 |
| Product type | Mini AC/DC clamp meter |
| AC current range | 10A to 100A |
| DC current range | 10A to 100A |
| Current resolution | 1 mA to 10 mA |
| AC voltage range | Up to 600V |
| DC voltage range | Up to 600V |
| Voltage resolution | 0.1V |
| Resistance range | Up to 10 kOhm |
| Resistance resolution | 0.1 Ohm |
| Display | 4-digit LCD, maximum reading 9999 |
| Sampling rate | 2 times per second |
| Maximum jaw opening | 12.5 mm |
| Battery | 1.5V AAA battery x 2 |
| Dimensions | 202 x 70 x 34 mm |
| Weight | 180 g |
| SKU | FMF-TM-86233 |
Functions
- AC/DC current measurement for 10A to 100A ranges
- AC/DC voltage measurement up to 600V
- Resistance measurement up to 10 kOhm
- Continuity check with active sound level at 100 Ohm or lower
- Peak hold and data hold for recording changing readings
- Touch zero and autoranging for faster one-handed operation
- Analog signal output for advanced testing setups
- Auto power off to reduce idle battery drain
Included Items
- CENTER 223 clamp meter
- Red and black test leads
- Instruction manual
- Soft carrying pouch
- Retail box
When to Choose This Model
- Choose this model when you need a compact clamp meter for AC/DC current measurement up to 100A.
- Use it when 1 mA current resolution, peak hold, data hold, and touch zero are useful for troubleshooting.
- The 12.5 mm jaw opening is best for smaller conductors and tight testing spaces.
Before Ordering
- Confirm the 100A current range, 600V voltage range, and 12.5 mm jaw opening match your test requirement.
- Check the product images for the dial layout, test leads, pouch, and instruction manual.
- Use the meter within its listed measurement ranges and follow the instruction manual during testing.
FAQ
What current range does the CENTER 223 measure?
It measures AC and DC current from 10A to 100A, with 1 mA to 10 mA resolution depending on the range.
Can it measure voltage?
Yes. The listed AC and DC voltage range is up to 600V with 0.1V resolution.
Does it support resistance and continuity testing?
Yes. The meter measures resistance up to 10 kOhm and supports continuity checking.
What functions help capture readings?
Peak hold and data hold help capture and freeze changing readings. Touch zero and autoranging help speed up routine testing.
What is included with the meter?
The product images show the CENTER 223 clamp meter, red and black test leads, instruction manual, soft carrying pouch, and retail box.
