BST600 AC/DC Gaussmeter Teslameter with Horizontal Hall Probe, 0-2000 mT

$281.60 USD

~~$0.00 USD~~ $281.60 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Sensor Version Horizontal Sensor

BST600 AC/DC Gaussmeter with Horizontal Hall Probe

The BST600 is a portable gaussmeter/teslameter for measuring magnetic flux density in DC and AC magnetic fields. This version is supplied with a horizontal Hall probe for surface magnetic field checks, with selectable 0-200 mT and 0-2000 mT ranges, mT/Gs unit conversion, zero reset, and peak hold.

What It Measures

Magnetic flux density on magnet and material surfaces.
Working magnetic fields from magnetic separators, iron-removing equipment, magnetic chucks, magnet coils, and demagnetizing coils.
Leakage magnetic fields on iron surfaces.
Magnetic fields inside gaps and narrow structures.
Magnetic field checks for DC motors, speakers, permanent magnetic separators, and induction cooker work areas.

Key Functions

Hall-effect sensor measurement with a microcontroller-controlled digital circuit.
Measures both DC and AC magnetic fields.
Two selectable ranges: 0-200 mT and 0-2000 mT.
Switchable display units: mT and Gs. Reference conversion: 0.1 mT = 1 Gs; 1 T = 10,000 Gs.
Zero reset for measurement setup away from magnetic fields.
Real-time measurement and peak-value hold modes.
9V battery operation for about 20 hours of continuous use.

Technical Specifications

Model	BST600 digital gaussmeter
Sensor version	Horizontal Hall probe
Measurement range	0-200 mT / 0-2000 mT
Accuracy	±2%, ±3 digits; ±5%, ±5 digits at 1000 mT
Sensitivity	0.01 mT / 0.1 mT
Measured field type	DC and AC magnetic fields
Frequency range	DC-200 Hz
Display	4.5-digit LED display
Power supply	9V battery or 9V DC external regulated power supply
Operating temperature	5°C to 40°C
Relative humidity	20%-80%, no condensation
Instrument dimensions	150 mm (L) x 70 mm (W) x 25 mm (H)
Weight	N.W. 400 g; G.W. 900 g

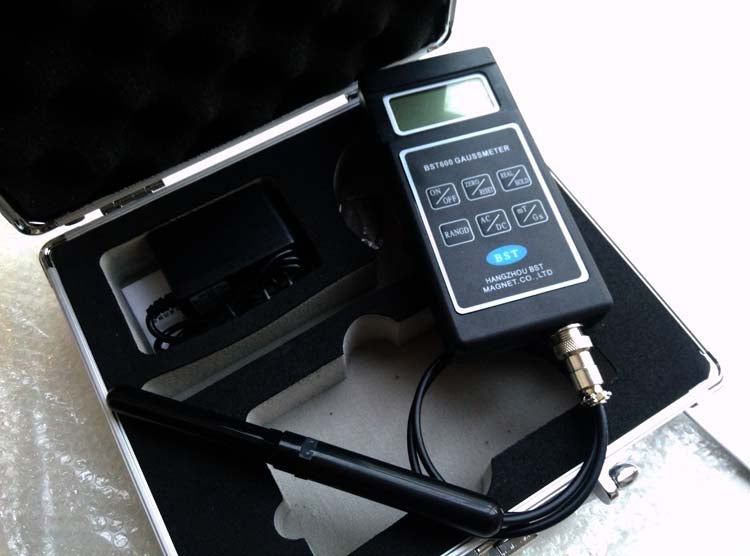

Package Contents

BST600 digital gaussmeter: 1 pc
Horizontal Hall probe: 1 pc
Instruction manual: 1 pc
Certificate document: 1 pc
9V battery: 1 pc

When to Choose This Model

Choose this horizontal sensor version when you need to check surface magnetic fields with the side/contact surface of the probe.
Use the 0-200 mT range for lower field readings and the 0-2000 mT range for stronger fields within the instrument range.
Use peak hold when you need to capture the highest reading during a measurement pass.

Basic Operation

Install the 9V battery, or connect a 9V DC regulated external power supply if used.
Insert the Hall probe into the front-panel sensor socket according to the arrow mark.
Power on the meter and keep the probe away from magnetic fields before zero adjustment.
Select DC or AC mode, choose the 200 mT or 2000 mT range, and switch between mT and Gs as needed.
Lightly contact the measurement surface with the proper sensing side of the horizontal probe. Do not press the probe tip hard against the workpiece.

FAQ

Can the BST600 measure both AC and DC magnetic fields?

Yes. The BST600 supports DC and AC magnetic field measurement, with a frequency range listed as DC-200 Hz.

Which probe version is supplied with this product?

This listing is for the horizontal Hall probe version.

What units can the display show?

The display can be switched between mT and Gs.

When should zero reset be used?

Reset zero with the probe away from magnetic fields before measurement, and reset again after changing the range or switching AC/DC mode.

What power supply does it use?

The meter uses a 9V battery and can also use a 9V DC external regulated power supply.

Probe Care Notes

The magnetic sensing element is at the front end of the Hall probe.
Do not bend, pull, strike, squeeze, or heavily load the probe and cable.
Avoid strong sunlight, high temperature, high humidity, water, oil, corrosive air, heavy vibration, and strong nearby magnetic fields during storage or use.
Remove the battery when the meter will not be used for a long time.
