Product Overview
Digital Cupping Tester Paint Coating Film Testing Machine Max 12mm Dent Depth Complies with DIN ISO 1520 BS 3900 is available from FMF Supply. Use the product details, images, and option selector on this page to confirm the exact model, size, and configuration before ordering.
Key Details
Product name: Digital Cupping Tester Paint Coating Film Testing Machine Max 12mm Dent Depth Complies with DIN ISO 1520 BS 3900
Product type: Testing Meter
SKU reference: FMF-TM-47705
Check the selected option and product images before purchase.
Specifications and Notes
The sample panel(max.

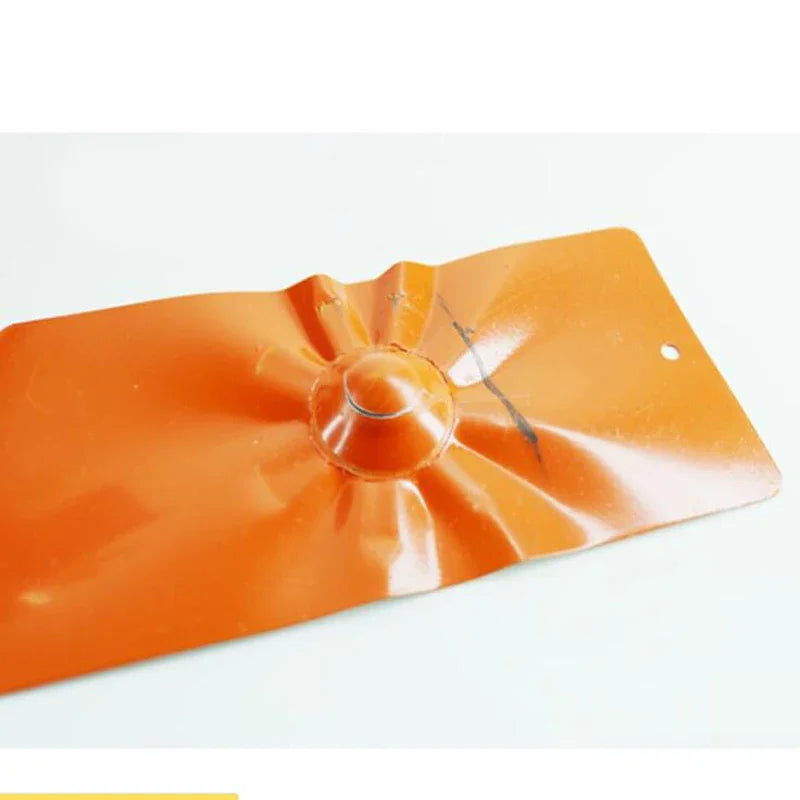

1.25mm thick*70 mm width, coated min.0.03mm)is clamped by an upper wheel and manually cupped by a Φ20mm hemispherical indenter onto a Φ27mm die by a drive wheel.
The depth to cause failure is indicated on a precise digital display.
Therefore, the traditional error caused by replacement or wobble can be eliminated.
Highly precise position sensor: the minimum division value of the depression depth can reach 0.01mm.
Applicable for every kind of substrate, and the maximum pressure can reach 2500N.
The coordinate position of the plug can be zero manually and can be memorized while it is cold.
Hand twist operation: laborsaving and easy-handling.
