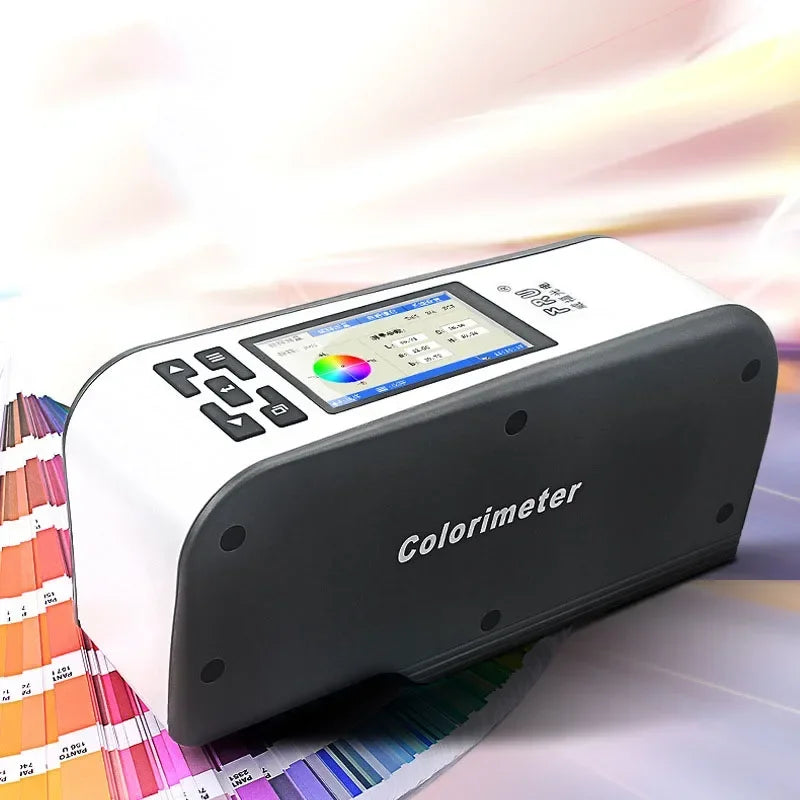

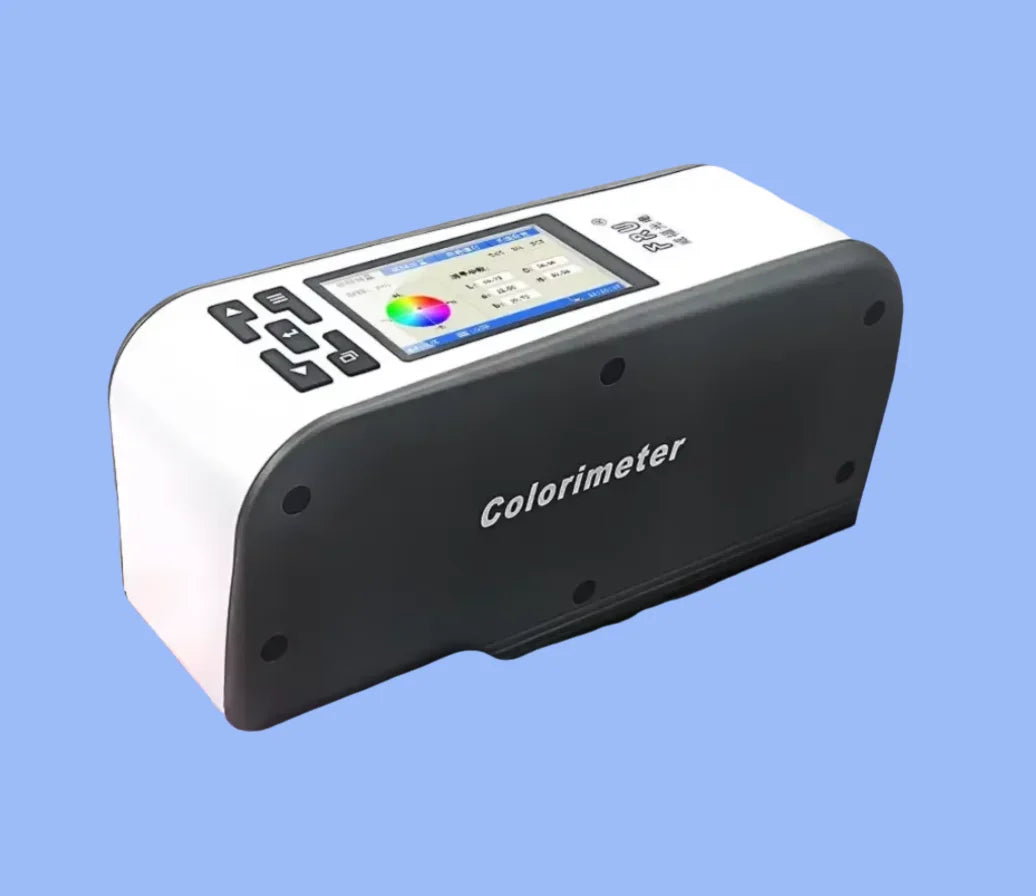

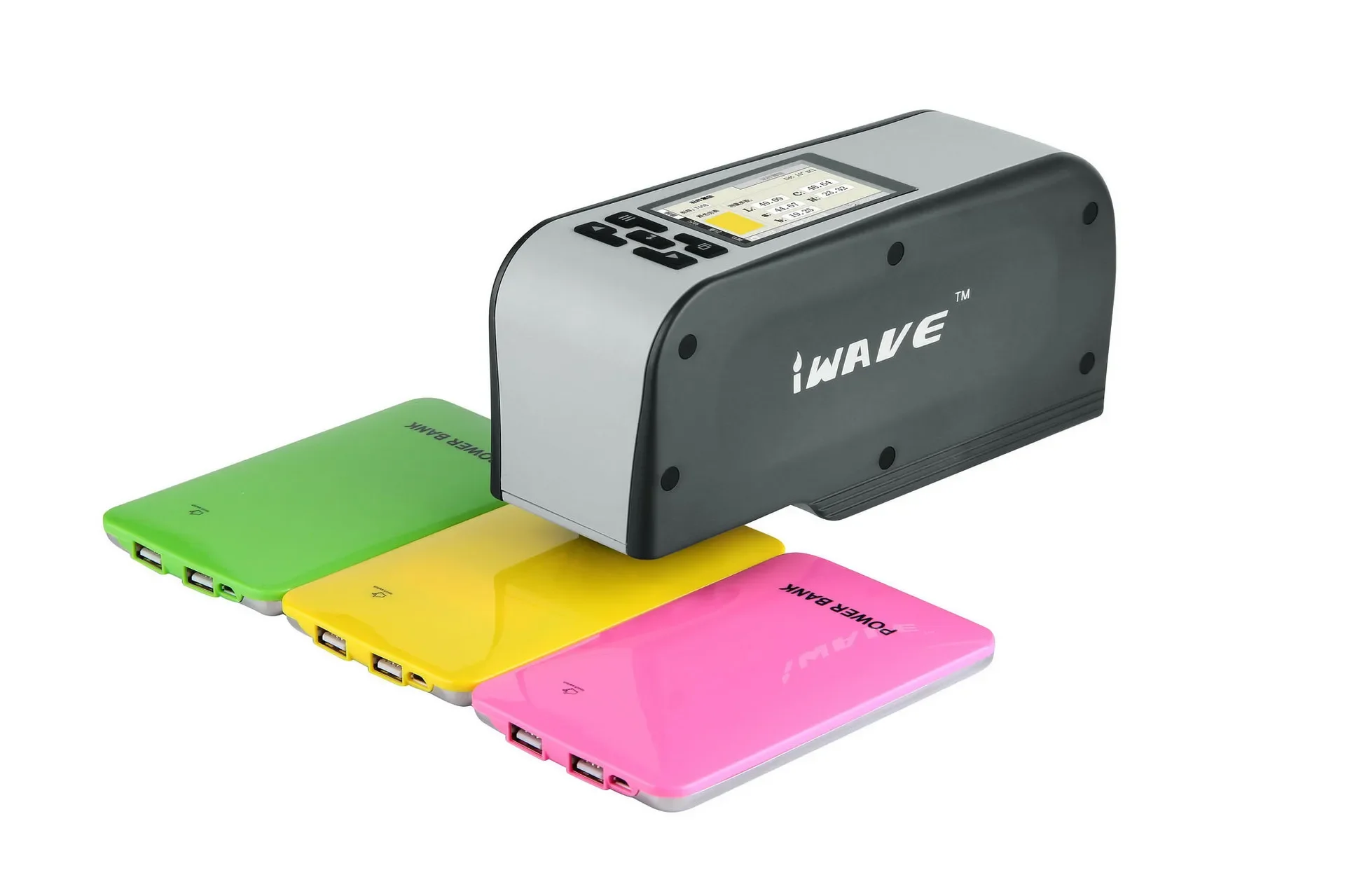

WF32 Portable Digital Colorimeter 4mm High Precision Color Difference Meter Tester for Paint Textile

WF32 Portable Colorimeter Digital Precise Color Difference Testing Meter 4mm

Feature:

1. High-end color difference meter WF32 to fill the gaps in the field of color difference meter high repeat accuracy, repeatability of <0.03;

2. High-end color difference meter WF32 with 8 standard light source, to fill gaps in the domestic color difference meter in the multiple light sources;

3. eight kinds of color difference formula ( E * ab, ECMC, EISO, ECIE94, EFCM Ⅱ, ELuv, Ehunter, EsRGB);

4. It can be used with standard "color analysis system" software.

Technical Specifications

* Model:WF32 (4mm) * Display Mode: CIELAB.CIELCH.CIEXYZ.CIELUV.HunterLAB.sRGB

* Color Difference Formula: △E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB

* Yellowness and Whiteness: Ganci whiteness. ISO brightness. YI yellowness

* Illumination Condition: CIE Recommendation:8/d

* Light Source: LED blue excitation

* Sensor: Photodiode array

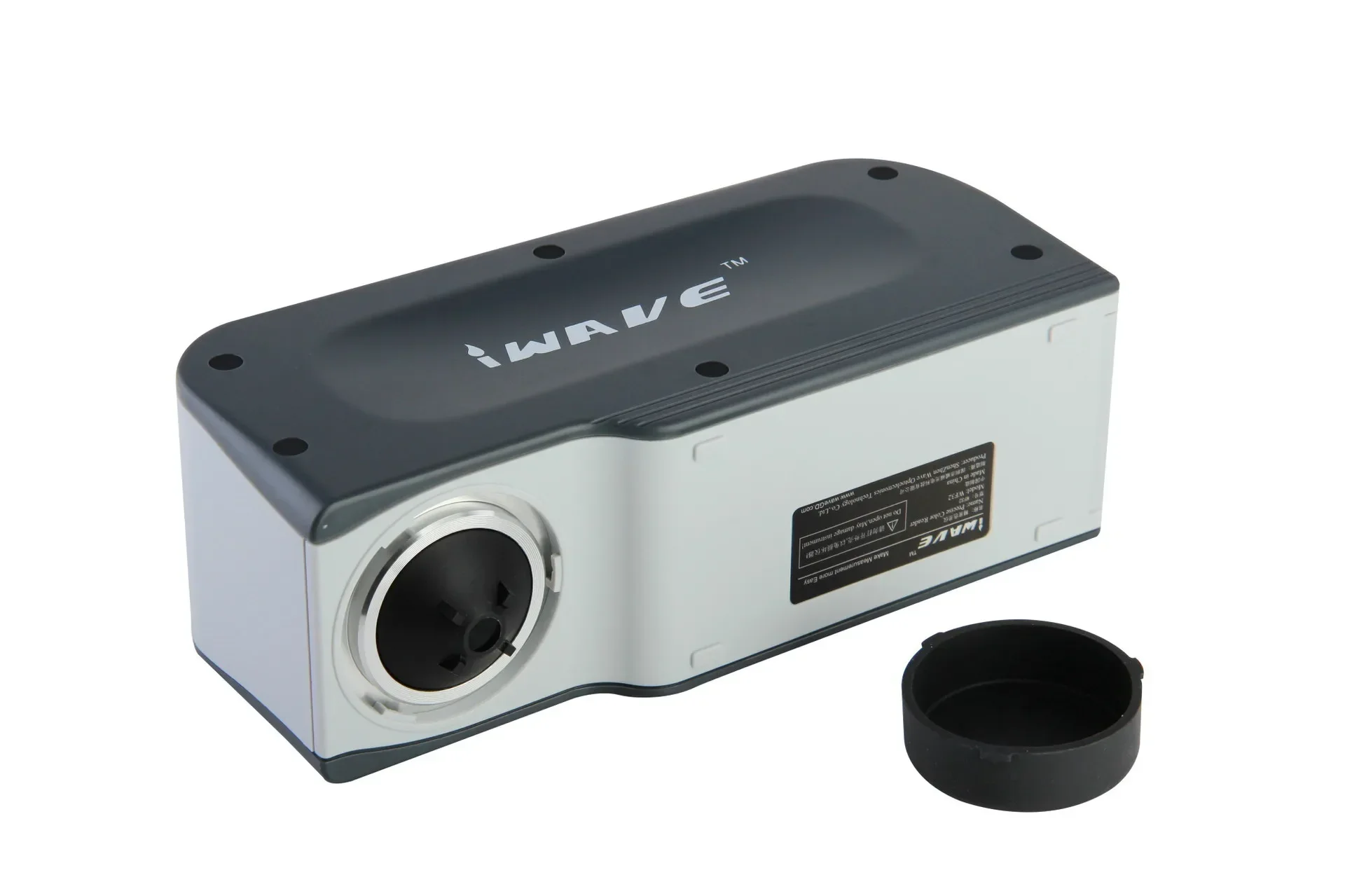

* Measurement Caliber: φ4mm

* Measurement Condition: Observer:CIE 10°Standard observer, Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) , Contain light way:SCI SCE

* Measurement Range: L: 0 to 100

* Repeated Accuracy: E<0.03 (take the deviation average after 30 times measuring the whiteboard)

* Table Difference: E<0.2

* Measurement Interval: 0.5 Sec.

* Average Measuring Function: Average measuring frequency: 1-32 times

* Color Simulation Function: yes

* Storage Capacity: Type sample data: 100 with testing sample data: 20000, Whiteness/ yellowness data: 200

* Language Patterns: English/Simplified Chinese/Traditional Chinese

* Quality Control Software: (Color-Analysis System) software

* Battery Charging Time: 8 hrs

* Battery: Li-ion battery, 5000 times Measurement

* Lifetime of Bulb: 5 years more than 1.6 million measurements

* Display Screen: TFT true color 2.8inch@(16:9) Resolution ratio:400x240

* Interface of External: USB2.0 (USB-B)- data communication with (color analysis system)software RS-232 (115200bps)- connected with micro printer

* Weight: 700g; Size: 199*68*90mm

* Standard Accessories: Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD(Color analysis software)/User manual/Warranty card

* Optional Accessories: Flour measuring device/Liquid measuring device/Micro printer

Details

1. Precision colorimeter WF32 is based on the International Commission on Illumination CIE relevant standards, national standards developed and produced through the National Measurement SCM certified professional colorimeter. The colorimeter with a new import key components, carefully designed, with accuracy and stability, simple operation, easy to learn, affordable and so on.

2. The colorimeter for plastic, surface treatment, painting, printing, toys, clothing, building materials, rubber, leather, glass, household appliances, printing and dyeing industry, color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color.
