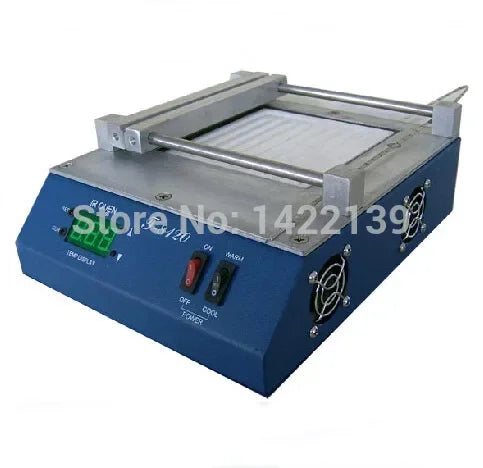

  • T8120 Infrared Preheating Oven PCB BGA SMD Rework Station Welder Heating Machine for product detail image
1 2

FMF Supply

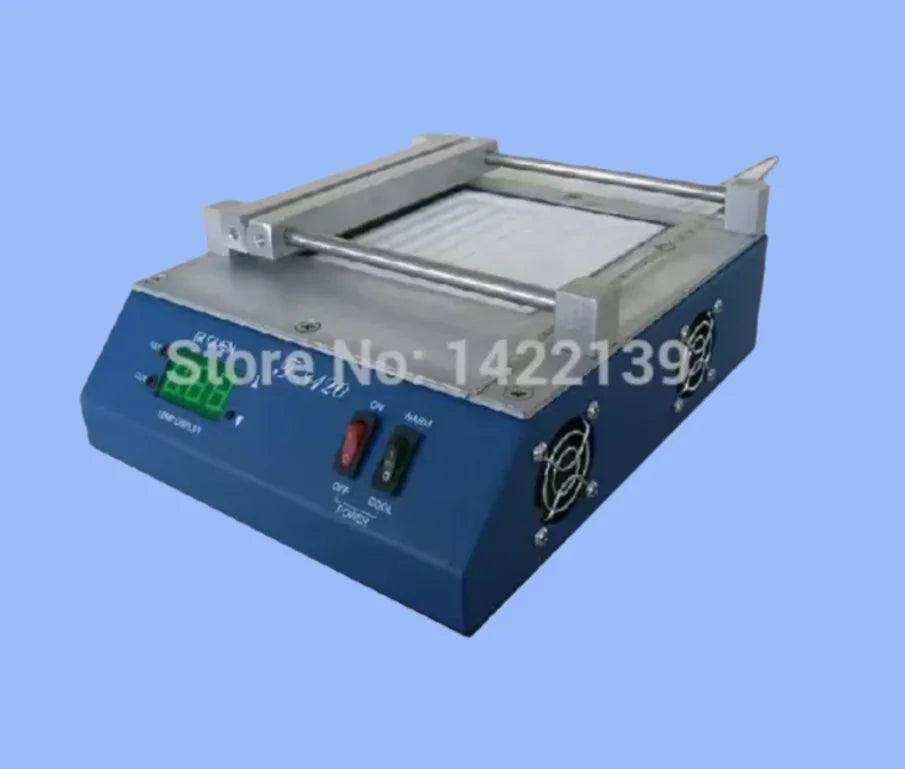

T8120 Infrared Preheating Oven PCB BGA SMD Rework Station Welder Heating Machine for Electronics Repair

T8120 Infrared Preheating Oven PCB BGA SMD Rework Station Welder Heating Machine for Electronics Repair

$124.89 USD
$0.00 USD $124.89 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Welder Infrared Preheating Oven Rework Station T8120

Features:

1. The machine selects the infrared highly effective component to give off heat which independent exploration, adopt advanced PID intelligent controlling warm heating technology, controls warm precisely.

2. Can achieve to heat PCB board and component which contains lead or not,especially suit to BGA,,SMD.

3. Use infrared heat, easy to cut through, heat proportion, don`t have sirocco flow. Don`t shift the small component on the PCB board,ensure the welding quality.

4. This machine has 600W heating system, widely to 120x120mm.Can use with the handhold infrared welder T-835.

5. Easily operate, can operate it through easy training.

Parameter:

Work floor size

200x240mm

Rated voltage and frequency

AC220-230v/AC110V   60/50Hz

Complete machine power

800W

Preheating chassis power

600W

Preheating chassis size

120x120mm

Preheating chassis temperature adjustable

0-450

Main Component:

Preheating oven main body

                          1

Temperature sensor

1

Board support of the circuit

1

Power line

1

User manual (compact disc)

1
Operation instructions:
1. Starting and inspects before starting:
Check the temperature sensor and the power line.
Turn on the power line. Don`t use until passing check. (The nixie tube displays the indoor temperature.)
The black switch on the front panel use to control the infrared preheating chassis; press up,down,can be at 0-450,adjust the infrared preheating chassis`s temperature. Press the button“WARM”,the infrared preheating chassis starts to work, press“COOL”,it stops working.
2.Operation of preheating PCB board:
(1) PCB board`s placement and adjustment:
According to the PCB board`s size, adjust the location of the board support, put the PCB board on the support and fix the screw tightly with hands. Make the temperature measurement head fixed on the PCB board which needs to preheating, use aluminum-foil paper or adhesive paper to stick tightly.
According to the size of PCB board and welding technological requirement, press and button, between 0 and 450, regulate the output temperature of preheating chassis.
(2) Preheating opening and closure:
Press the “WARM” button,open the preheating chassis about 3-5 minutes, make the temperature be about the setting value then carry on the step operation.
After finishing ,press “COOL”, the preheating chassis stop working.
Attention:This time can` t close the power switch, after the machine full cooling then close the power source.
General preheating temperature establishment suggestion: when PCB board has lead ,may adjust the infrared preheating chassis temperature to 100-120 ; When PCB board has non-lead, may adjust  to 120-140 ; Also may set the different preheating temperature voluntarily according to user's use craft and experience.
3. Machine installation and adjustment:
This infrared preheating chassis heating way includes: The total pressure flow-through heating way and the PID percentage adjustment way, you may adjust voluntarily according to the PCB board`s preheating allowance. The general suggestion preheating temperature is lower than 250, selects the PID percentage adjustment method; The preheating temperature is higher than 250, use the total pressure flow-through heating way.
Adjustment method:
1.press power-on, display: C
2.press choose 0 or 1,every press the status change one time, C=0 is PID percentage adjustment, C=1 is switching control.

Caution
1. After finishing, don`t turn off the power immediately; make the infrared preheating chassis full cooling.
2. Keep the ventilation free-flowing, the infrared preheating chassis pure; use the dehydrated alcohol to be clean regularly.
3. Careful, the high temperature operation, pay attention, avoids scalding.
4. Long-time doesn`t use, should cramp out the power source plug.

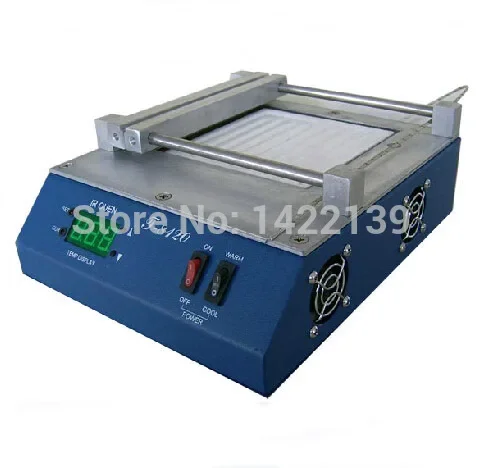

T8120 Infrared Preheating Oven PCB BGA SMD Rework Station Welder Heating Machine for Electronics Repair detail image 1
