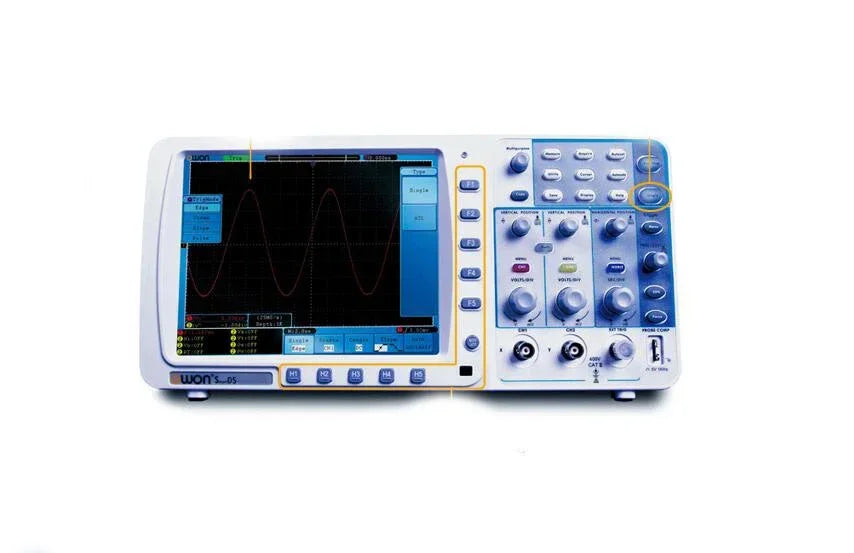

Oscilloscope Specification

Model

SDS6062

SDS7102

SDS8102

SDS8202V

SDS8302V/SDS9302

Vertical System

Vertical resolution (A/D)

8 bits Resolution (2 channels simultaneously )

Vertical sensitivity

2mV/div~10V/div(at input)

Displacement

±10div(5mV~10v)

±1V(2mV~100mV), ±10V(200mV~1V),±100V(2V~10V)

Analog Bandwidth

60MHz

100MHz

200MHz

300MHz

Single bandwidth

Full bandwidth

low frequency

≥ 5Hz

Rise time (at input, typical)

≤ 5.8ns

≤ 3.5ns

≤ 1.7ns

≤ 1.17ns

DC gain accuracy

±3%

DC accuracy(Average)

Average > 16: ±(3% rdg + 0.05 div) for ΔV

Measurement

Cursor measurement

ΔV and ΔT between cursors

Automatic measurement

Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty

Waveform Math

+, -, ×, / ,FFT

Waveform storage

15 waveforms

Lissajou’s figure

Bandwidth

Full bandwidth

Phase difference

±3 degrees

Communication interface

USB, support USB flash disk storage, SVGA

Trigger

Trigger level range

±6 divisions from screen center

Trigger level accuracy

±0.3div

Horizontal Trigger displacement

Pre-trigger: 655 div,Post-trigger: 10 div

Trigger Holdoff range

100ns~10s

Edge trigger

Rising, Falling

Pulse Trigger

Trigger condition

Positive pulse:>, <, = negative pulse:>, <, =

Pulse width range

24ns~10s

Video Trigger

NTSC, PAL, SECAM

Slope Trigger

Trigger condition

Positive pulse:>, <, = negative pulse:>, <, =

Time setting

24ns~10s

Alternate Trigger

Edge, Pulse, Video, Slope

Waveform
record

Waveform quantity

1~1000

Interval time

1ms~1000s

Display

8" color LCD,TFT display,800x600 pixels,65535 colors

Power Supply

100~240VAC RMS, 50/60Hz, CAT II

Power consumption

< 18W

Dimension Weight

340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery)
