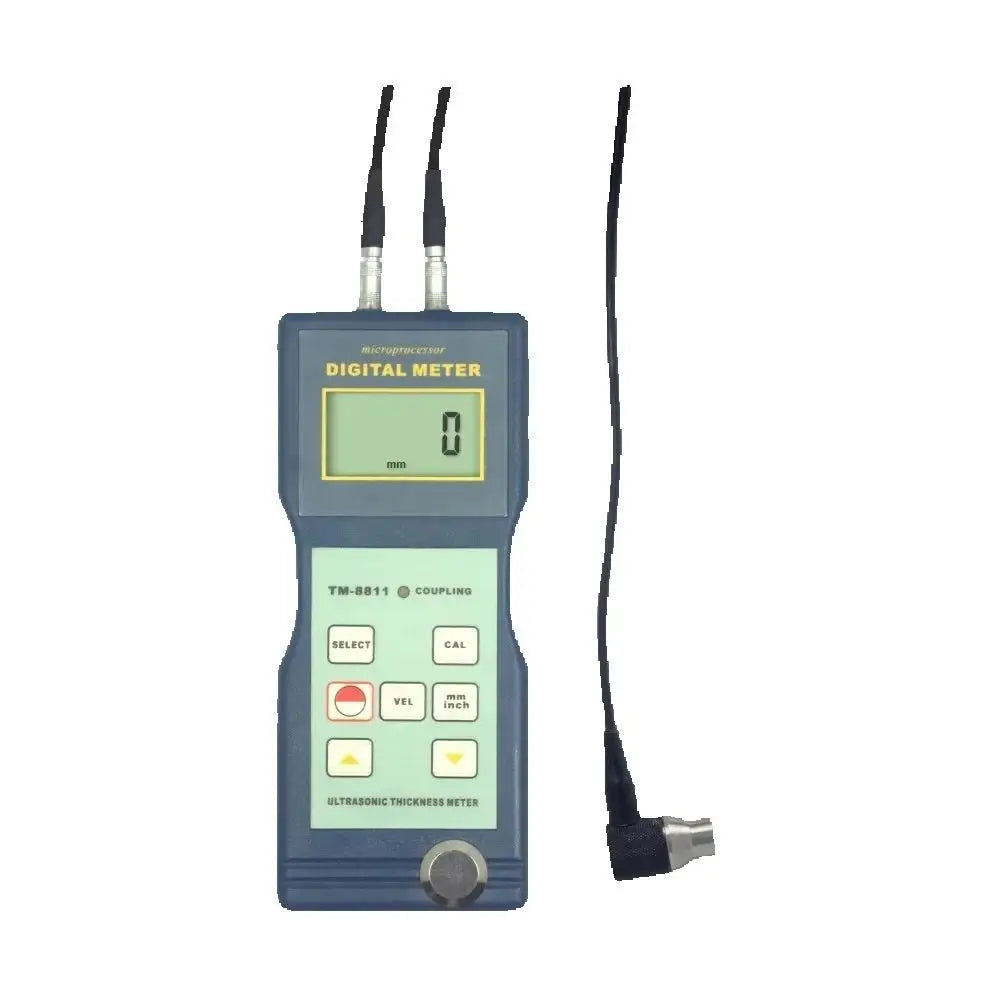

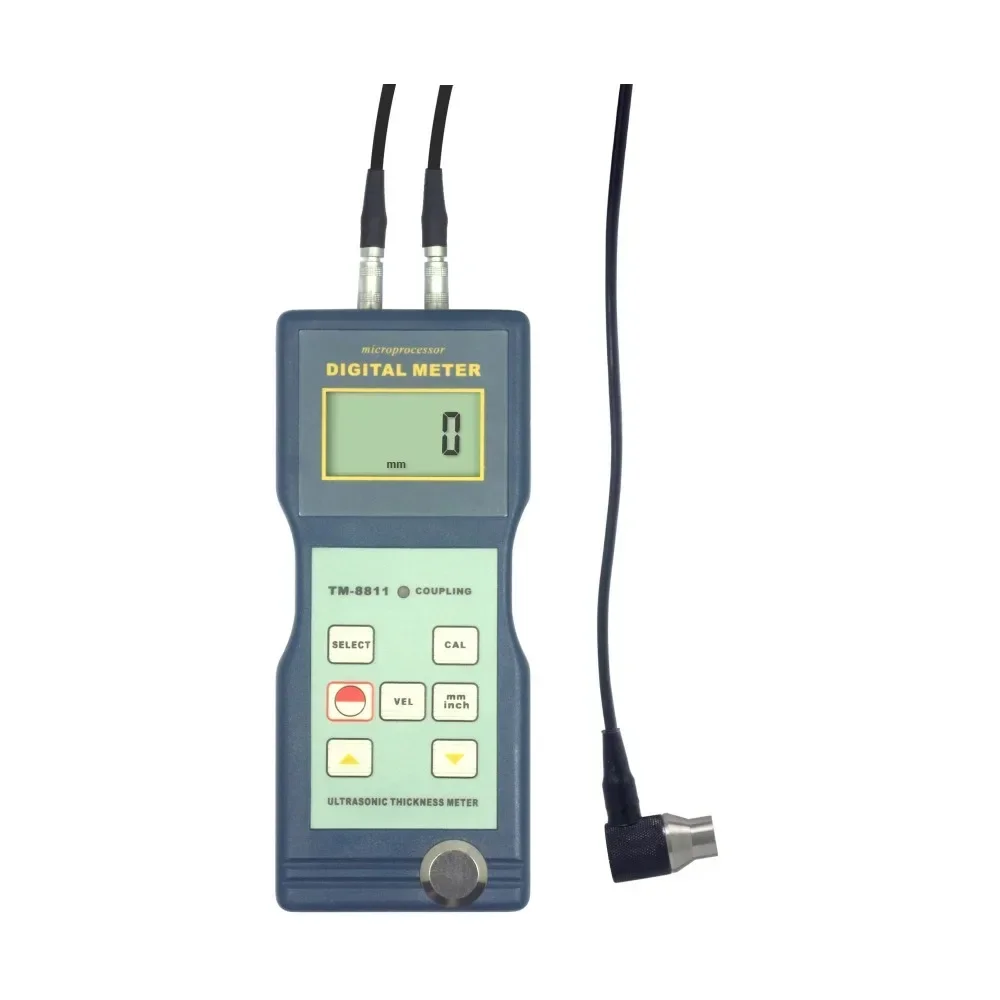

Original Landtek TM8811 Ultrasonic Thickness Gauge | Digital Wall Thickness Meter Tester 1.2–200mm Range
Original Landtek TM8811 Ultrasonic Thickness Gauge | Digital Wall Thickness Meter Tester 1.2–200mm Range
Regular price
$266.58 USD
Regular price
$0.00 USD
Sale price
$266.58 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Original Landtek TM8811 Wall Ultrasonic Thickness Meter Gauge Tester 1.2-200mm
Application:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Specification:
Measuring range (metric/imperial): 1.2-200mm, 0.06-8inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm
Accuracy: ± (0.5%n+0.1)
Power supply: 4x1.5V AA (UM-3) battery
Battery indicator: low battery indicator
Operating conditions:0-+45°c(32°F-104°F),≤90%RH
Dimensions: 160x68x32mm
Weight: 208g (not including battery)
Optional Accessories:
1)6MΦ6mm thin Material probe:
Measuring range (steel): 1.0 50.0mm
Operating temperature: -10~+60°c
2 )5MΦ12high temperature probe:
Measuring range (steel): 1.0~225.0mm (normal temperature)
Measuring range (steel): 4.0~100.0mm (high temperature)
Operating temperature: -10~+300°c
