New U2811D Digital LCR Meter Tester 100Hz 120Hz 1kHz 10kHz Inductance Capacitance Resistance Analyzer

New U2811D Digital LCR Meter Tester 100Hz,120Hz,1kHz,10kHz

Product description

*Brief Introduction

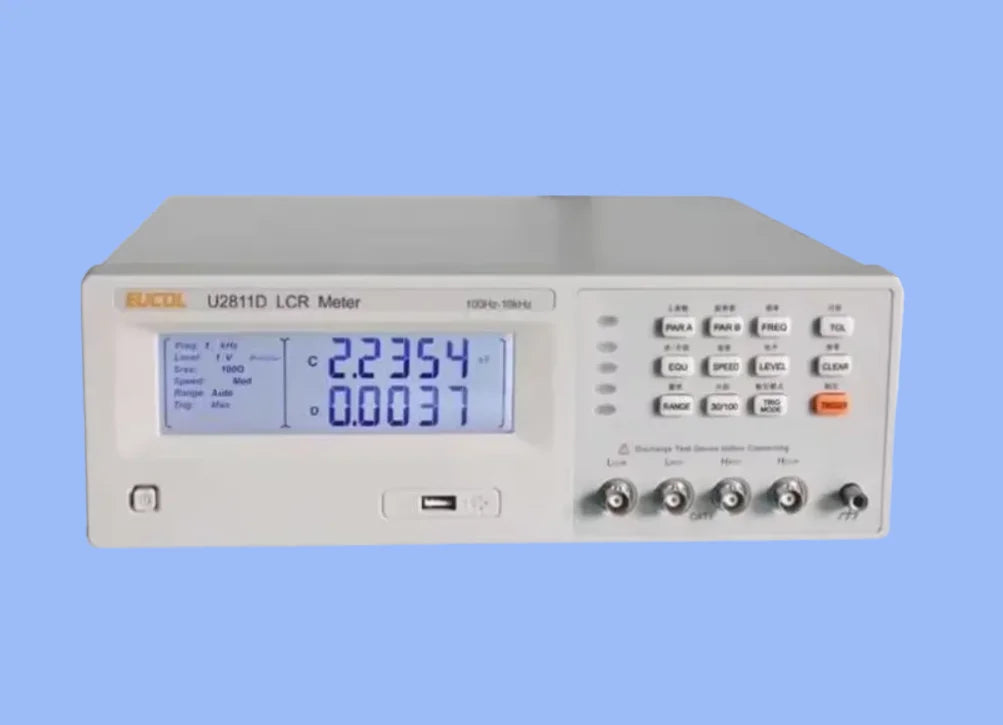

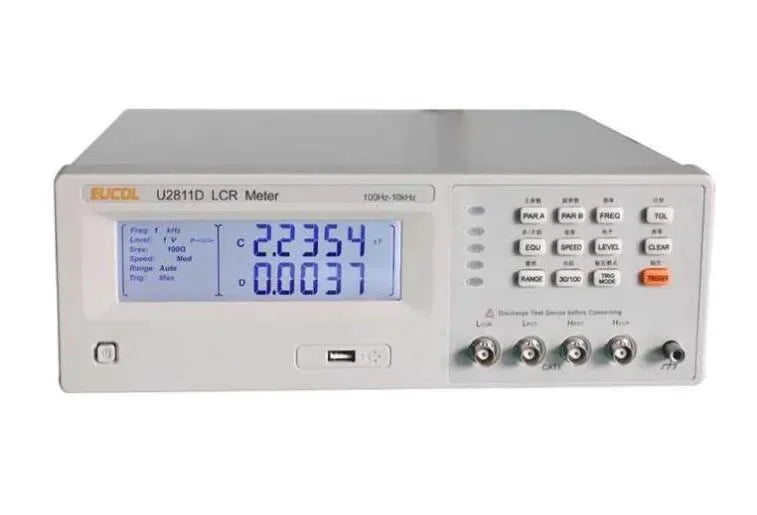

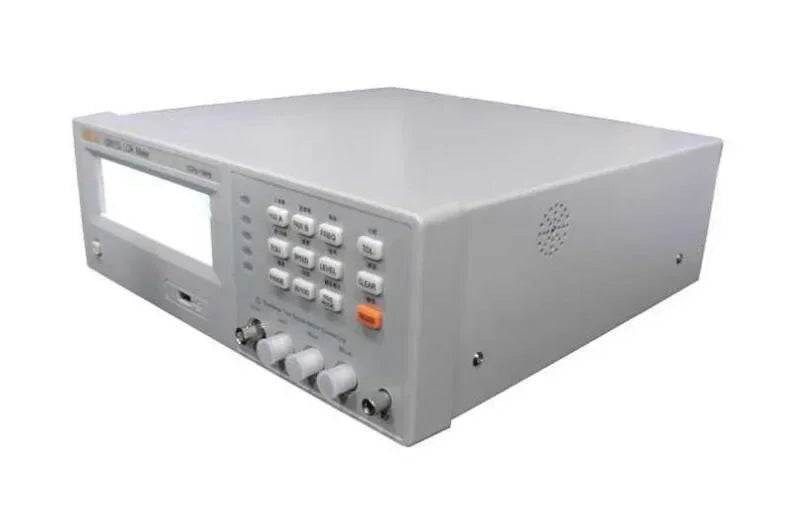

*U2811D LCR meter is newly-developed component measurement instrument providing high performance at low cost. U2811D with its latest measurement technologies, large character LCD display, surface mount technique, easy of use and excellent appearance can be used for quality control on production line, incoming inspection of components and automatic test system. The RS-232C interface can be used to carry out remote control and statistics and analysis of measurement results.

*Features
*Economical and practical LCR meter to meet the conventional test requirement
*Large character LCD display with backlight
*Easy operation with strong functions
* SMT surface mount technic
* Fast measurement speed (20meas/sec) to meet the test system requirements
* Comprehensive measurement parameter.stable readings
* Selectable signal source output impedance:30Ω, 100Ω 5 Bins comparator
*USB ,RS-232C and HANDLER interface

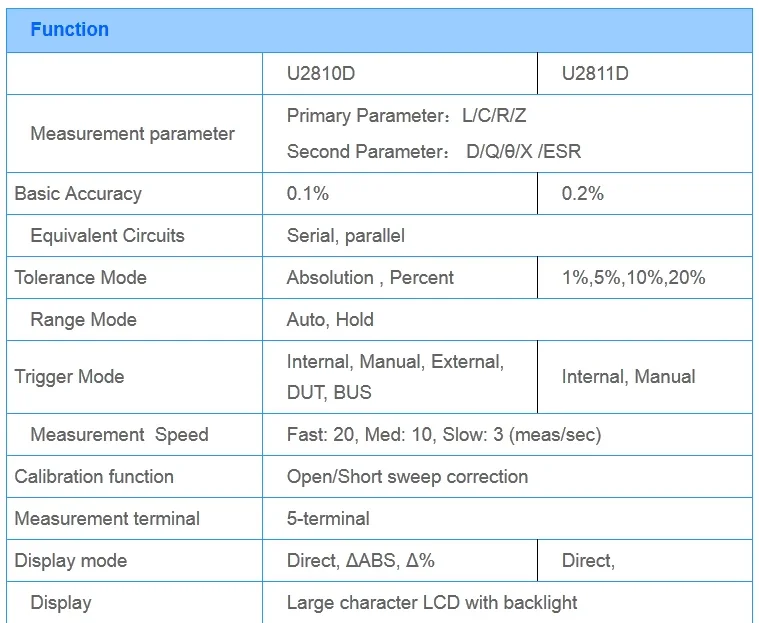

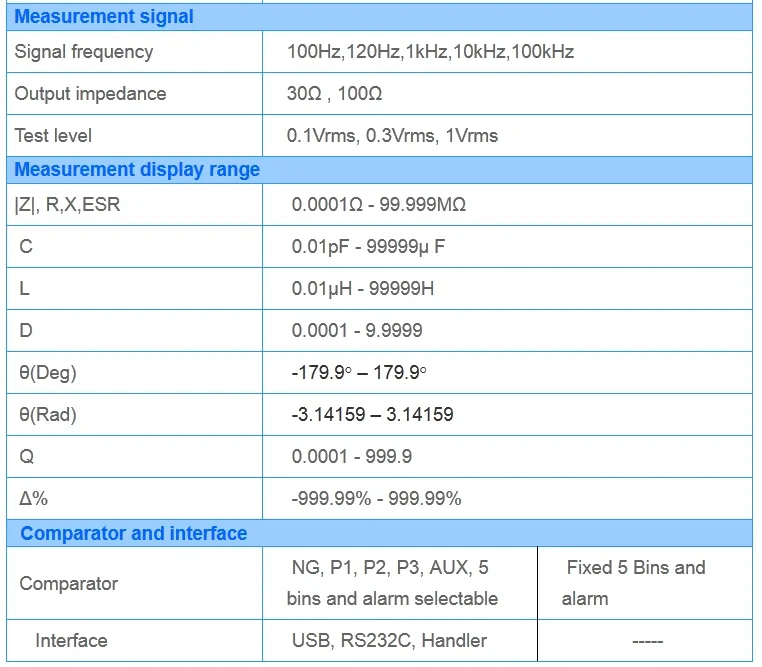

Specification

*Measurement parameter Primary Parameter:L/C/R/Z
*Second Parameter: D/Q/θ/X /ESR
*Basic Accuracy 0.2%
*Equivalent Circuits Serial, parallel
*Tolerance Mode 1%,5%,10%,20%
*Range Mode Auto, Hold
*Trigger Mode Internal, Manual
*Measurement Speed Fast: 20, Med: 10, Slow: 3 (meas/sec)
*Calibration function Open/Short sweep correction
*Measurement terminal 5-terminal
*Display mode Direct
*Display Large character LCD with b

Instrument Accessories

U26001 4-terminal test fixture

U26004 4-terminal Kelvin test cable

U26010 Gilded shorting plate

Options

U26005 4-terminal test fixture

U26006 Axial component test fixture(used with TH26005)

U26008 SMD component test fixture

U26009 SMD test tweezers

U26011 4-terminal pair Kelvin test cable

U10201 RS232C Control software
