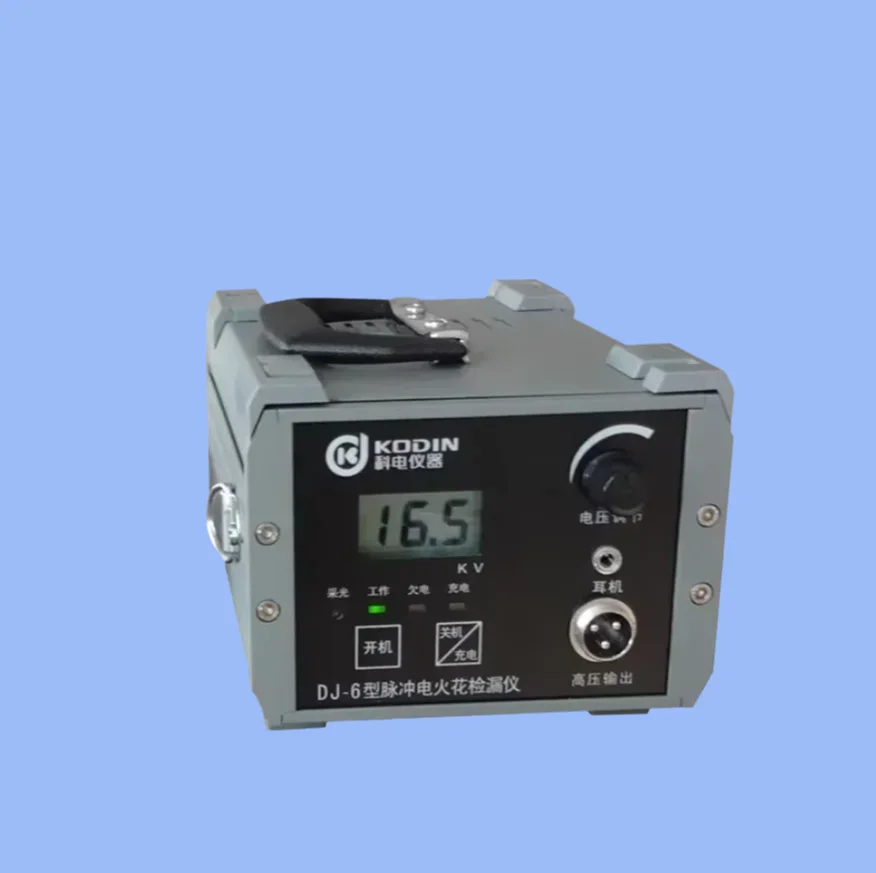

• New DJ-6B High Voltage Holiday Detector 0.6–30kV Spark Leak Tester

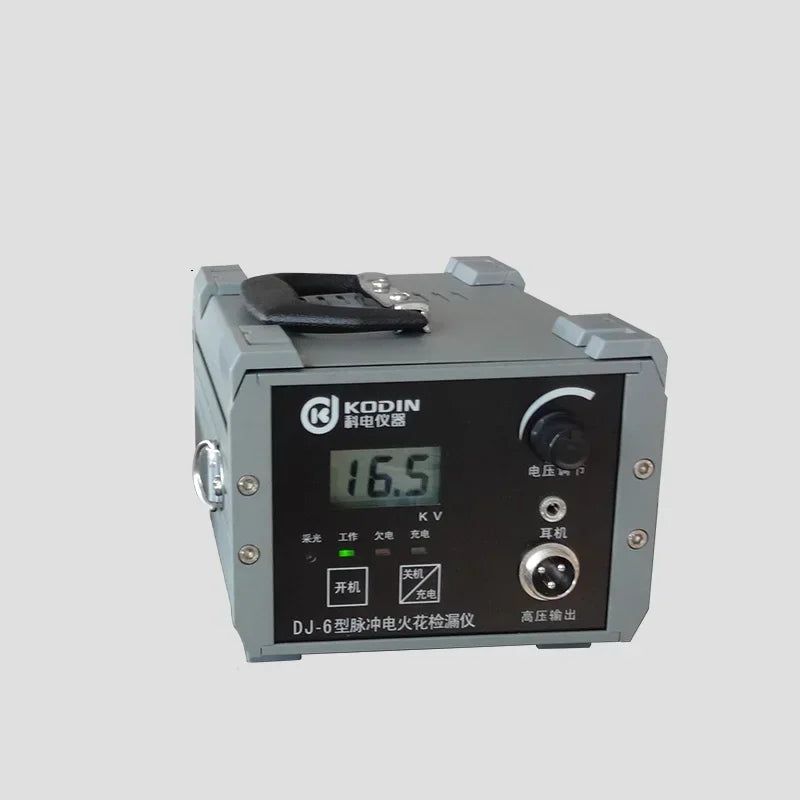

  • New DJ-6B High Voltage Holiday Detector 0.6–30kV Spark Leak Tester for Coating Thickness product detail image
1 2

FMF Supply

New DJ-6B High Voltage Holiday Detector 0.6–30kV Spark Leak Tester for Coating Thickness 0.05–10mm

New DJ-6B High Voltage Holiday Detector 0.6–30kV Spark Leak Tester for Coating Thickness 0.05–10mm

$732.56 USD
$0.00 USD $732.56 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

New DJ-6B Holiday Detector Meter 0.05m-10mm 0.6KV-30KV Spark Leak Detector



Overview

Type DJ-6 holiday detector is a high-voltage special detector that is used to detect the quality of metal anti-corrosion coating. This detector can detect different thickness of coatings, such as glass lining, glass reinforced plastic, epoxy coal tar, rubber lining and so on. The detector will emit bright sparks and with sound alarm when something is wrong with the coating, such as the emergence of pinhole, air bubbles, fissures and cracks. As powered by Ni-MH battery, and with small size and light in weight, it is especially suitable for field operation. The detector is the essential tool used for detecting the quality of metal anti-corrosion coating and can be used widely in many industries including chemical, petroleum, rubber and ceramic, due to its sophisticated design and stable & reliable performances.


Specification:

1. Applicable detection thickness: 0.05mm - 10mm

2. Output High-voltage: 0.6kv-30kv (stepless and continually adjustable)

3. Direct indication of output high-voltage

4. Battery:12V/2800mA

5. Power consumption: about 5W

6. Volume of main detector: 220x130x88 mm

7. Back light

8. Instantaneous boot, and automatic shutdown

9. 3–digit LCD displays output voltage, and with all-touch panel

10. Alarm: Dual alarm with earphone and buzzer

Packing List

(1)   Type DJ-6 Holiday Detector                                           1set

(2)   High-voltage probe　　　　　　           　  　              1 piece

(3)   Probe brush                                                                   2 pieces

(4)   Connecting rod                                                              1 piece

(5)   Earphone                                                                       1 piece

(6)   Backstrap                                                                      1 piece

(7)   Fuse                                                                               2 piece

(8)   Manual　　　　　　　　　　　           　                    1 copy

(9)   Warranty Card and Certificate of Conformity                 1 copy　

(10)   External packing box　　　　　　　          　            1 piece

(11)   Earthing wire　　　　　　　　　　　                        1 piece

(12)   Charger　　　　　　　　　　　　　                        1 set

Note: Arc brush and circular probe are selectable (any length)

Attached Table for Detection Voltage



Anti-corrosion Material

Thickness of Anti-corrosion Coating (mm)

Detection Voltage (KV)

Remarks

Epoxy Coal Tar

0.2

0.4

0.6

0.8

4-5KV or self-defined

Perform according to standard (if provided)

Oil Asphalt

2

3

5.5

7

9

    11

15

18

20

24

Polyethylene Adhesive Tape

Based on: 3249TC=V  conversion formula

V: voltage; TC: thickness of anti-corrosion coating

Perform according to SY4014-92 Acceptance Standard

Glass Lining

Determine detection voltage according to previous experience.

Generally, it is 8KV～20KV.

Other Anti-corrosion Materials

Detect voltage according to the design of design department or material insulation.

New DJ-6B High Voltage Holiday Detector 0.6–30kV Spark Leak Tester for Coating Thickness 0.05–10mm detail image 1


Anti-corrosion Material

Thickness of Anti-corrosion Coating (mm)

Detection Voltage (KV)

Remarks

Epoxy Coal Tar

0.2

0.4

0.6

0.8

4-5KV or self-defined

Perform according to standard (if provided)

Oil Asphalt

2

3

5.5

7

9

    11

15

18

20

24

Polyethylene Adhesive Tape

Based on: 3249TC=V  conversion formula

V: voltage; TC: thickness of anti-corrosion coating

Perform according to SY4014-92 Acceptance Standard

Glass Lining

Determine detection voltage according to previous experience.

Generally, it is 8KV～20KV.

Other Anti-corrosion Materials

Detect voltage according to the design of design department or material insulation.
