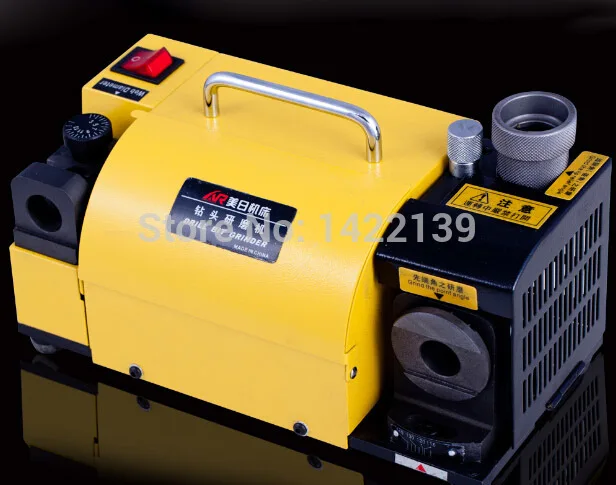

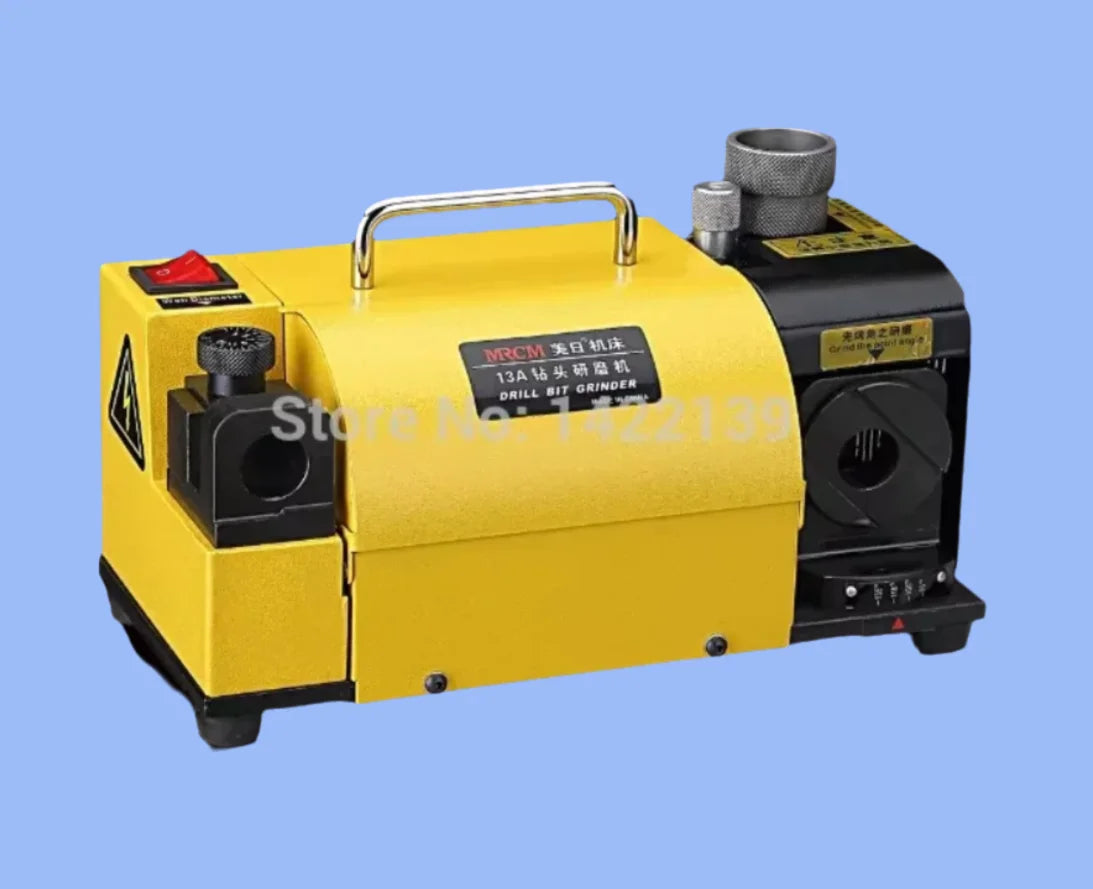

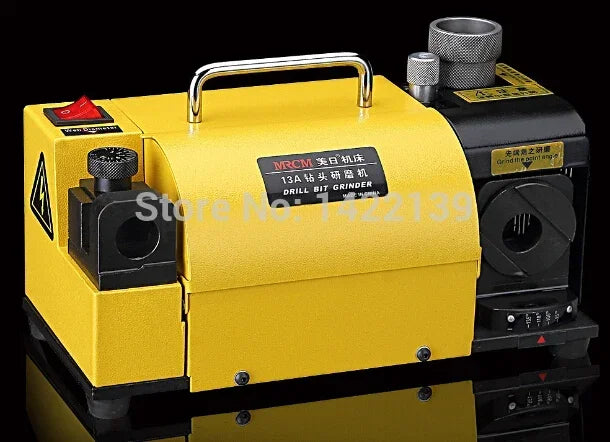

MR-13A Drill Bit Sharpener Grinder 2–13mm 100°–135° Angle Precision Drill Grinding Machine
MR-13A Drill Bit Sharpener Grinder 2–13mm 100°–135° Angle Precision Drill Grinding Machine
Regular price
$313.80 USD
Regular price
$0.00 USD
Sale price
$313.80 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Drill Bits Sharpener Grinder Grinding Machine MR-13A 2 - 13 mm 100 - 135 Angle
Features
1. Grinding is accurate and rapid, easy operation with no skill to grind.
2. Economical price that greatly reduces the cost and improves the use effect.
3. With diamond grinding wheel, it can be equipment directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. Bearing shaft and locking unit.
6. The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
Specifications
Model |
MR-13A |
Grinding Range |
ø 2 - ø 13( ø 15) |
Point Angle |
100° (90°) ~ 135° |
Power |
AC 220 V, 50 Hz |
Motor |
180 W |
Speed |
5300 rpm |
Dimension |
32 x 18 x 19 cm |
Weight |
10 kg |
Standard Equipment |
Grinding Wheel :CBN (for HSS) × 1 |
Eleven Collets: ø 3, ø 4, ø 5, ø 6, ø 7, ø 8, ø 9, ø 10, ø 11, ø 12, ø 13 |
|
Collet Chuck: (ø 2 - ø 14) × 1 |
|
Option Equipment |
Grinding Wheel: SDC (for Carbide) |
Collets: ø 2, ø 2.5, ø 3.5, ø 4.5, ø 5.5, ø 14, ø 15 |
|
Collet Chuck: ø 15 |
