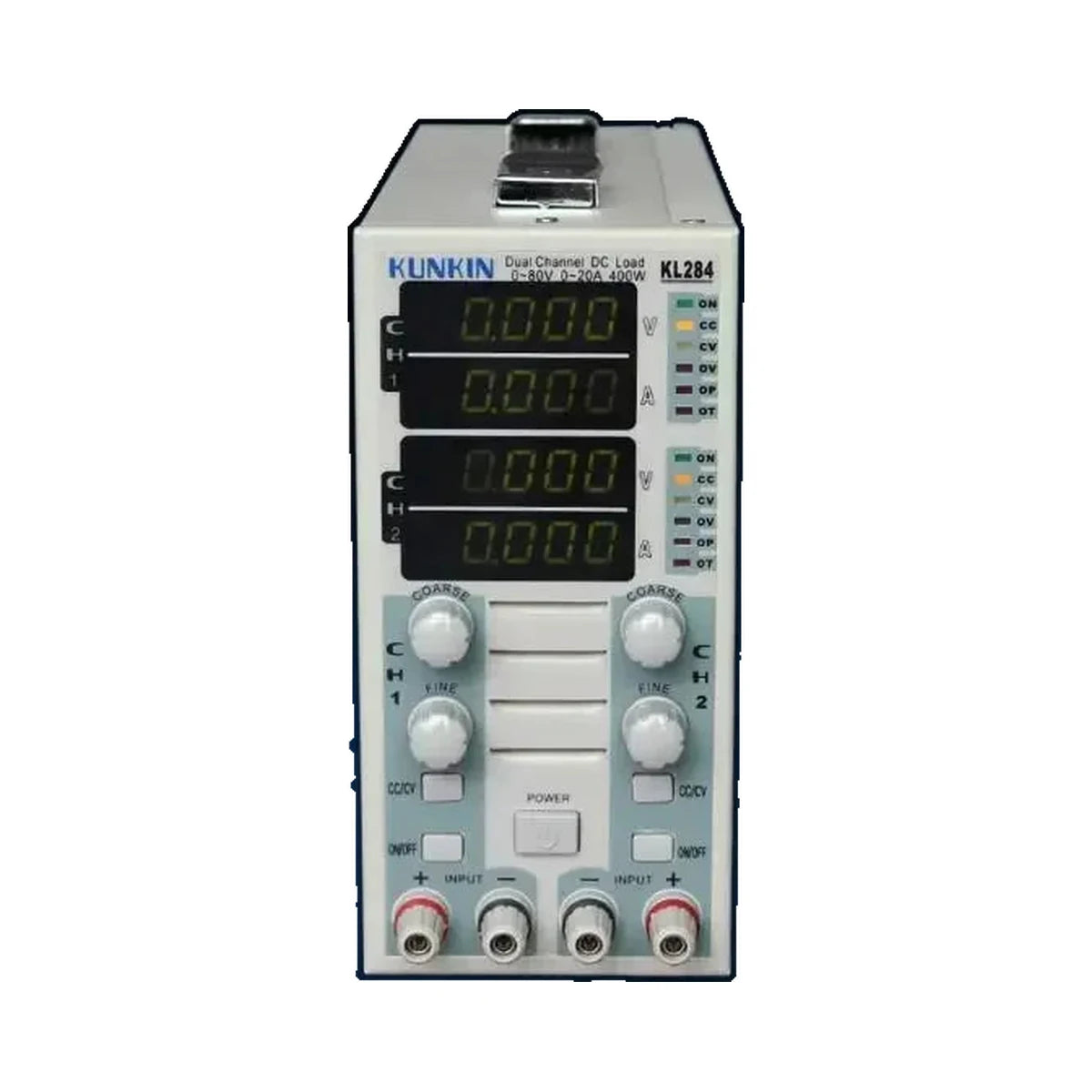

Product Overview
KL-284 Dual-Channel DC Electronic Load, 400W 80V 40A is available from FMF Supply. Use the product details, images, and option selector on this page to confirm the exact model, size, and configuration before ordering.
Key Details
- Product name: KL-284 Dual-Channel DC Electronic Load, 400W 80V 40A
- Product type: Electronic Load
- SKU reference: FMF-EL-24505
- Check the selected option and product images before purchase.
Specifications and Notes
- Verified specifications include 0-80V adjustable voltage input, 0-40A adjustable current input, 400W class listing title, and AC 220V ±10% 50Hz/60Hz power input.
- Verified Features Dual-channel DC electronic load with two isolated independent input channels.
- Constant current and constant voltage operating modes.
- Four high-precision digital LED displays for voltage and current.
- External analog control, remote ON/OFF, and CC/CV switch operation are listed.
- Protection functions include over-voltage, over-current, over-power, overheating, and reverse polarity protection.
- Use the 0-80V and 0-40A ranges as the verified operating limits.
- The original dimension line appears inconsistent, so no corrected dimension claim is added.
FAQ
How do I choose the right option?
Match the option name, SKU, product images, and listed specifications with the model, size, or configuration you need.
What should I confirm before ordering?
Confirm the product model, dimensions, voltage or power requirements, capacity, material, and included accessories when those details are shown for this item.
