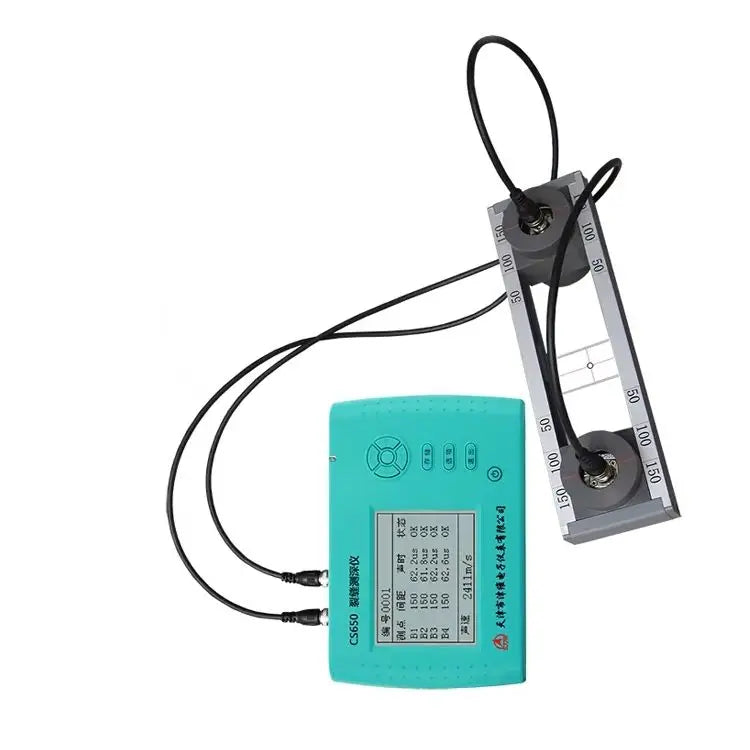

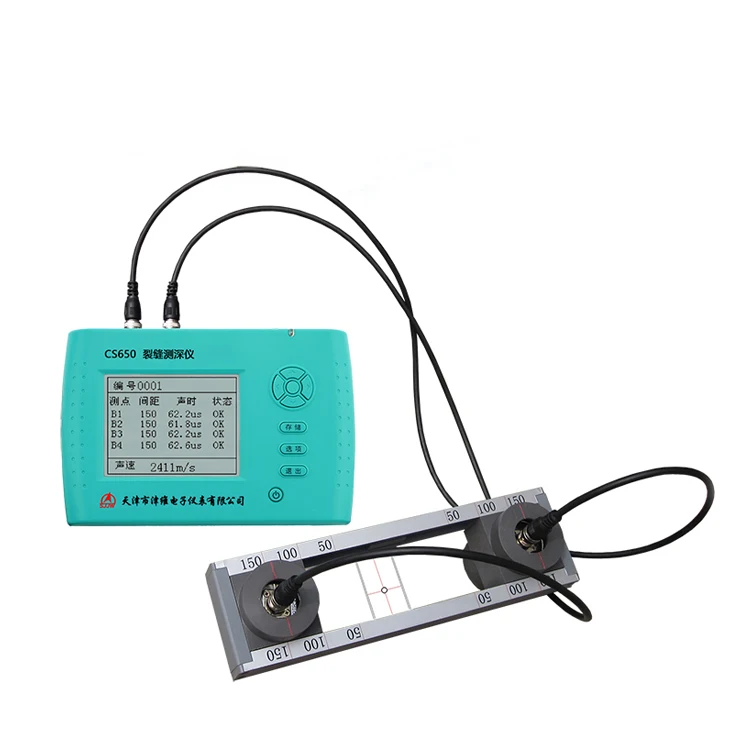

CS650 Concrete Crack Depth Measurement Meter Non-Destructive Tester for Structural Integrity and Building Inspection
CS650 Concrete Crack Depth Measurement Meter Non-Destructive Tester for Structural Integrity and Building Inspection
Regular price
$1,086.24 USD
Regular price
$0.00 USD
Sale price
$1,086.24 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
CS650 Crack depth measurement meter
Introduction of CS650 Crack depth measurement meter
Application areas:
The CS650 crack depth sounder is a special intelligent detector for surface crack depth detection of non-metallic materials such as concrete. Under the guidance of the theory of the program, the system simplifies the test method and improves the test efficiency and effect through a large number of tests. This has changed the concept of “inaccurate crack depth”.
Main features:
1)Two detection methods: standard and simple depth measurement;
2)Standard ultrasonic transducer bracket, precise and adjustable; free from scene marking-out, which can greatly improve the detection efficiency;
3)Touch screen makes the operation simple and quick;
4)Whole process of testing is prompted by voice and text;
5)Friendly human-computer interactive interface;
6)Various built-in various helpful files and demo videos facilitate the users to conduct skilled instrument operation;
7)4GB large-capacity SD card can store more than 100,000 data;
8)Powered by lithium batteries.
Main Parameter of CS650 Crack depth measurement meter
Hardware Platform: Embedded ARM9 Hardware Platform,WinCe5.0 Operating System,True Color TFT Touch Screen
Crack Depth Test Range: 10mm~500mm
Accuracy: ≤±5%
Power Supply: Rechargeable Lithium Battery
Working Time: ≥28 Hours
Working Temperature: -10℃~+50℃
Working Humidity: ≤90%RH
Test range: 5-500 (mm)
Test error: ≤5mm (or actual depth 2%-10%)
Data transmission interface: USB
Data storage capacity: 5900 point data
Power supply: 5# alkaline battery 6
Operating temperature range: -10°C—40°C
Host size: 220*145*60mm
