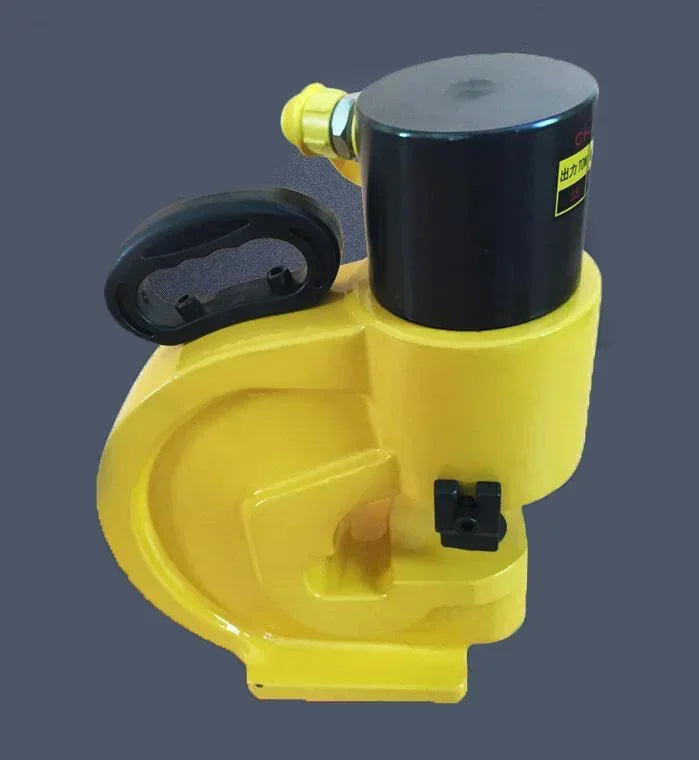

  • CH-70 Hydraulic Hole Punching Tool Metal Copper Steel Plate Hydraulic Puncher for Busbar product detail image
1 2

FMF Supply

CH-70 Hydraulic Hole Punching Tool Metal Copper Steel Plate Hydraulic Puncher for Busbar Cutting

CH-70 Hydraulic Hole Punching Tool Metal Copper Steel Plate Hydraulic Puncher for Busbar Cutting

$241.39 USD
$0.00 USD $241.39 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

CH-70 Hydraulic Hole Punching Tool Metal Copper Hydraulic Puncher Punches



Mode: CH-70

Hole diameter: 10.5mm. 13.8mm, 17.5mm, 20.5mm

Output: 35T

The max thickness: steel plate 10mm / Copper, aluminum plate 12mm

Deep Throat: 110mm

Size: 350*280mm

It is split hole puncher. It is used for punching for metal plate. It is popular in electricity industry, construction,etc. It need to work with a pump. It could punch 3/8"(ф10.5mm), 1/2"(ф13.8mm), 5/8"(ф17.5mm), 3/4"(ф20.5mm). A good tool for you!

Description:

Punching force

35T

Depth of throat

4.5"(115mm)

Aperture(4 pairs)
3/8"(ф10.5mm)

1/2"(ф13.8mm)

5/8"(ф17.5mm),

3/4"(ф20.5mm)

Max. Thickness ofiron plate

0.39"(10mm)

Max. Thickness ofcopper bar

0.47"(12mm)

Weight

77LB(35KG)

Feature:

1. Hydraulic Hole Punching Tool CH-700 apply to L and H style flat copper and busbar.
2. End is designed with flat seat,smooth and not fall
3. Single oil return, punch dies made of high carbon tungsten steel and not easy to wear off.
4. Connect with pump of model CFP-800-1、CP-700,etc. or electric pump

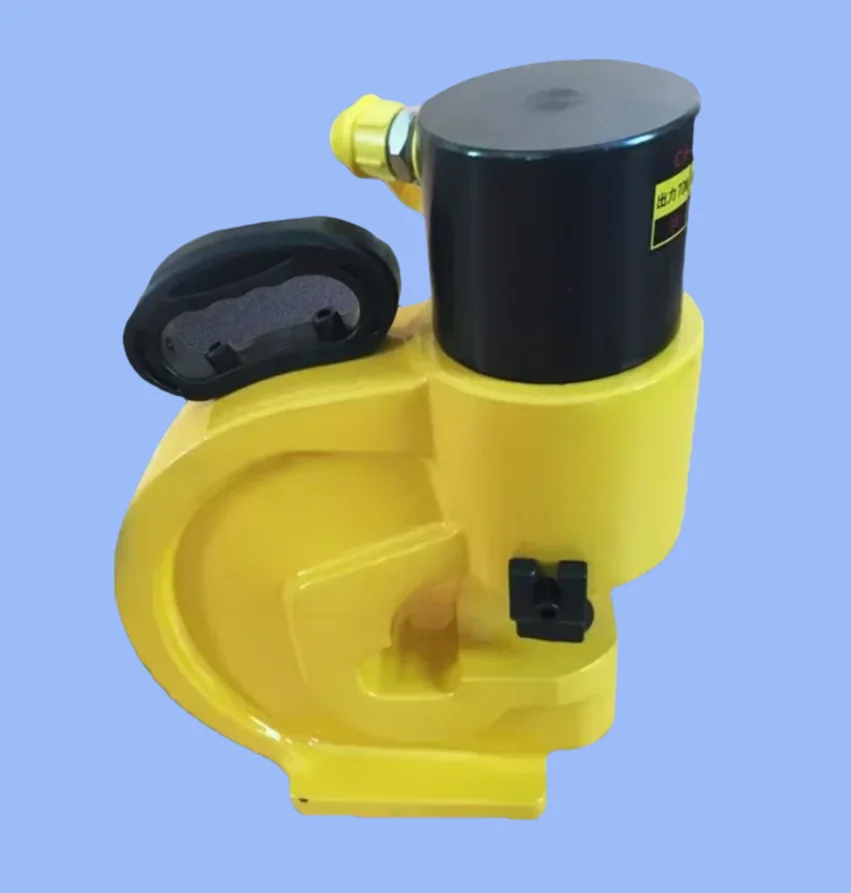

CH-70 Hydraulic Hole Punching Tool Metal Copper Steel Plate Hydraulic Puncher for Busbar Cutting detail image 1
