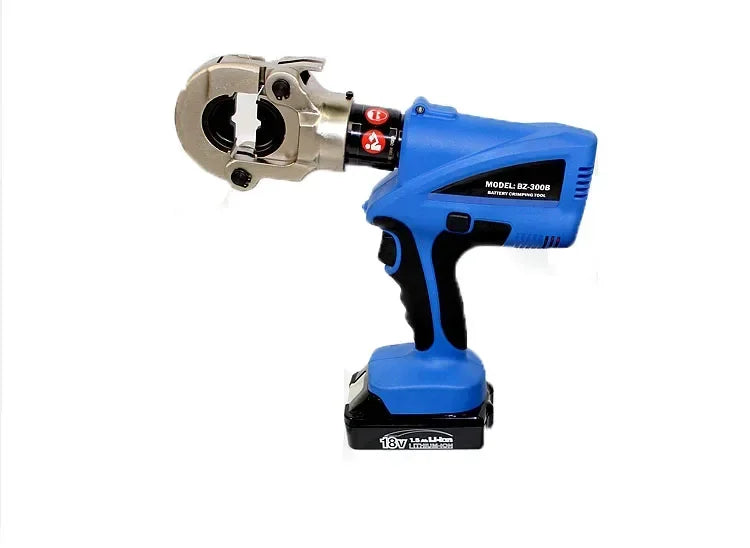

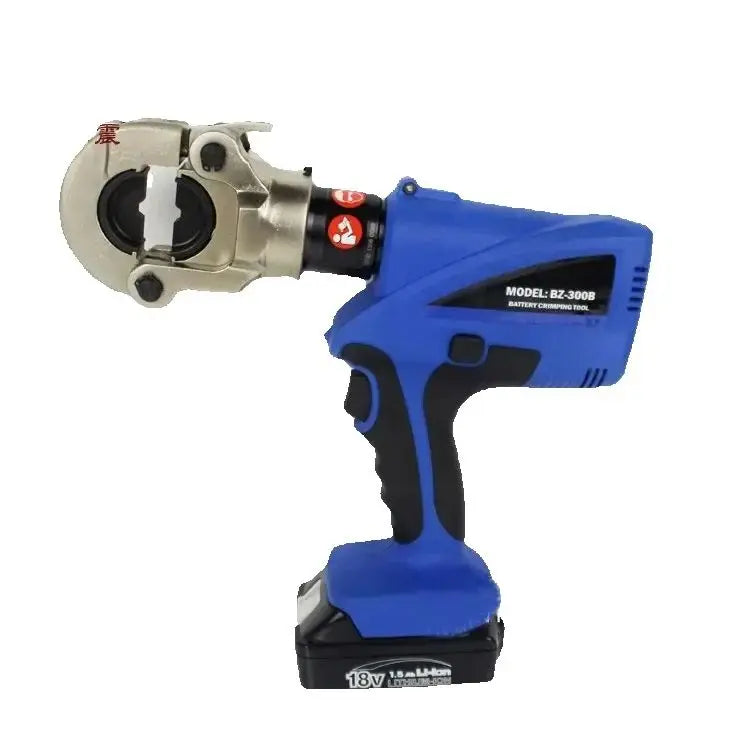

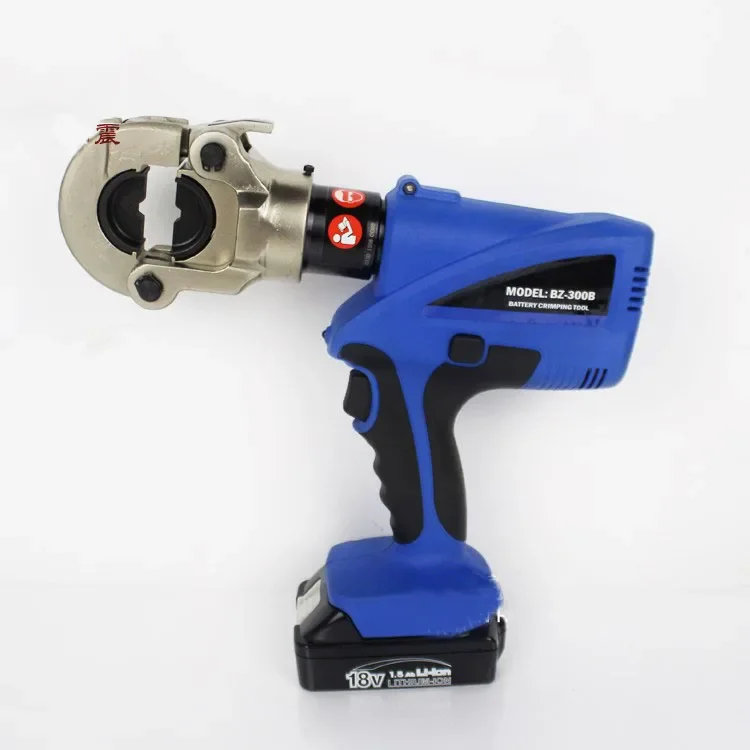

BZ-300B Electric Hydraulic Crimping Tool | 16-300mm² Cable Lug Crimper Lightweight Design

New BZ-300B Electric Hydraulic Crimping Tool16-300mm2 with Light Weight

Detail

Type:Electric Hydraulic Crimping Tool

Brand: New aftermarket

Model:BZ-300B

Technical Parameters:

Max. output : 60KN

Stroke : 17mm

Weight of tool : 3.12kg(with battery)

Size of tool : 397*116*75

Crimping/charge :300times(depend on the CU 150mm2)

Voltage of battery : 18v DC

Capacity :3.0Ah

Voltage :100-240v AC

Package :Plastic box

Accessories

Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm2

Battery :2pcs

Charger :1pcs

Sealing ring of cylinder : 1set

Sealing ring of safety valve :1set

1. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means stop

forcing pressure, loosing fully means piston return to the original position.

2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display,

also we can special making for customer to show the pressure if necessary.

3. Air Cooling Heat dissipation system to extend using.

4. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas.

5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non operation

the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and

shorter charging cycles copare to NiMH batteries.

6. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion

7. USD coneect to memory crimping time.
