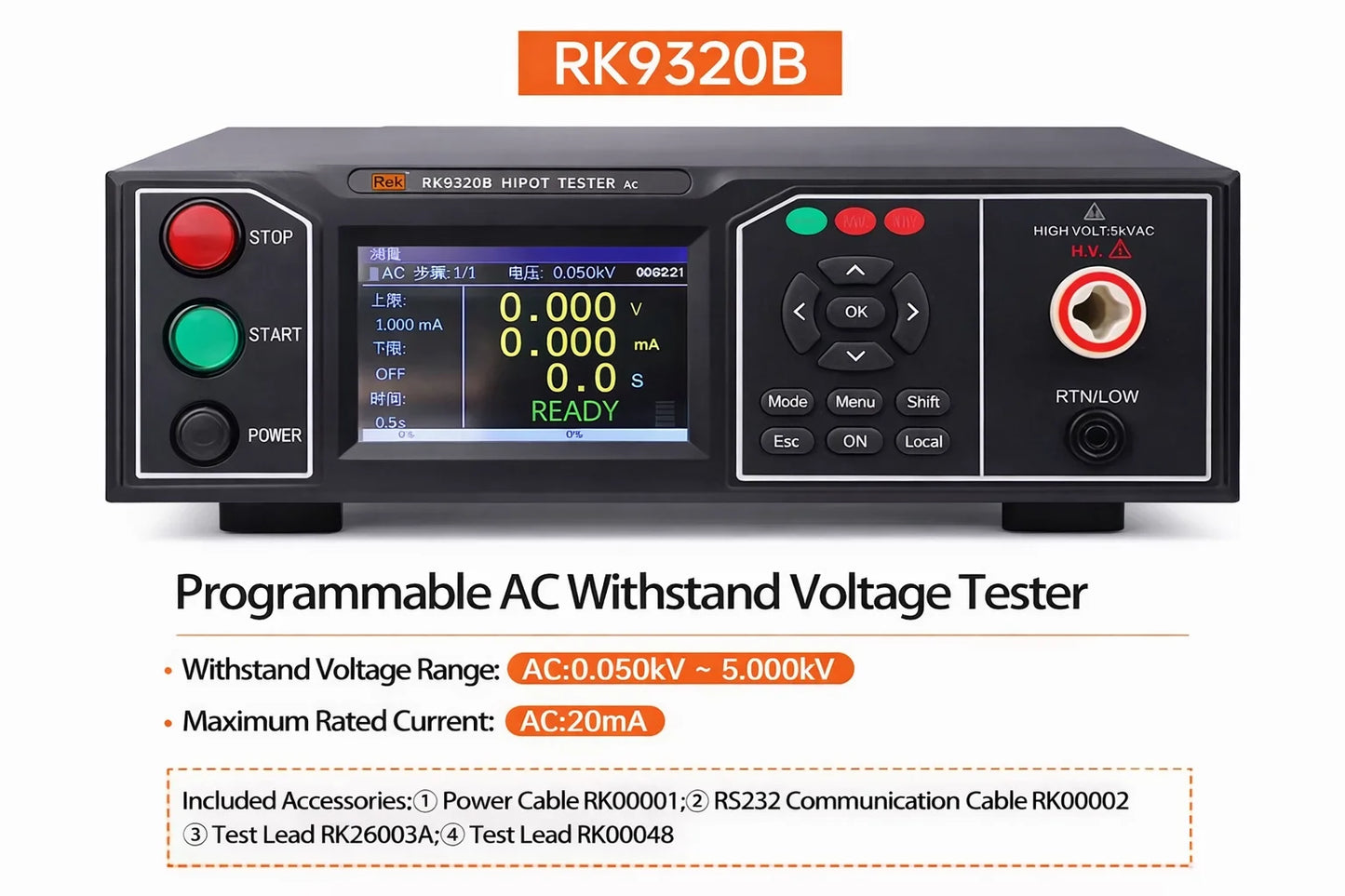

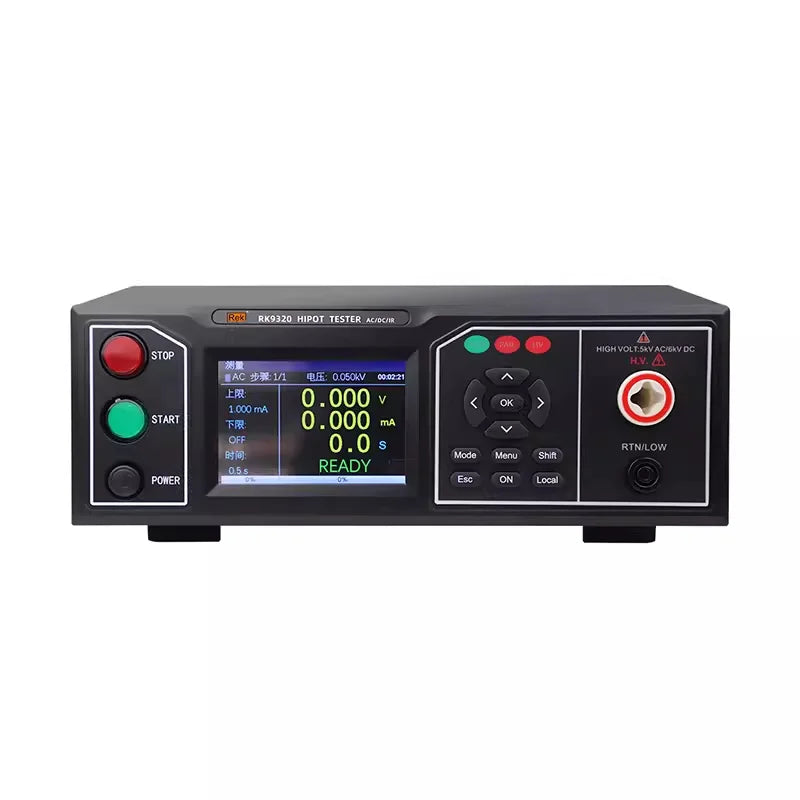

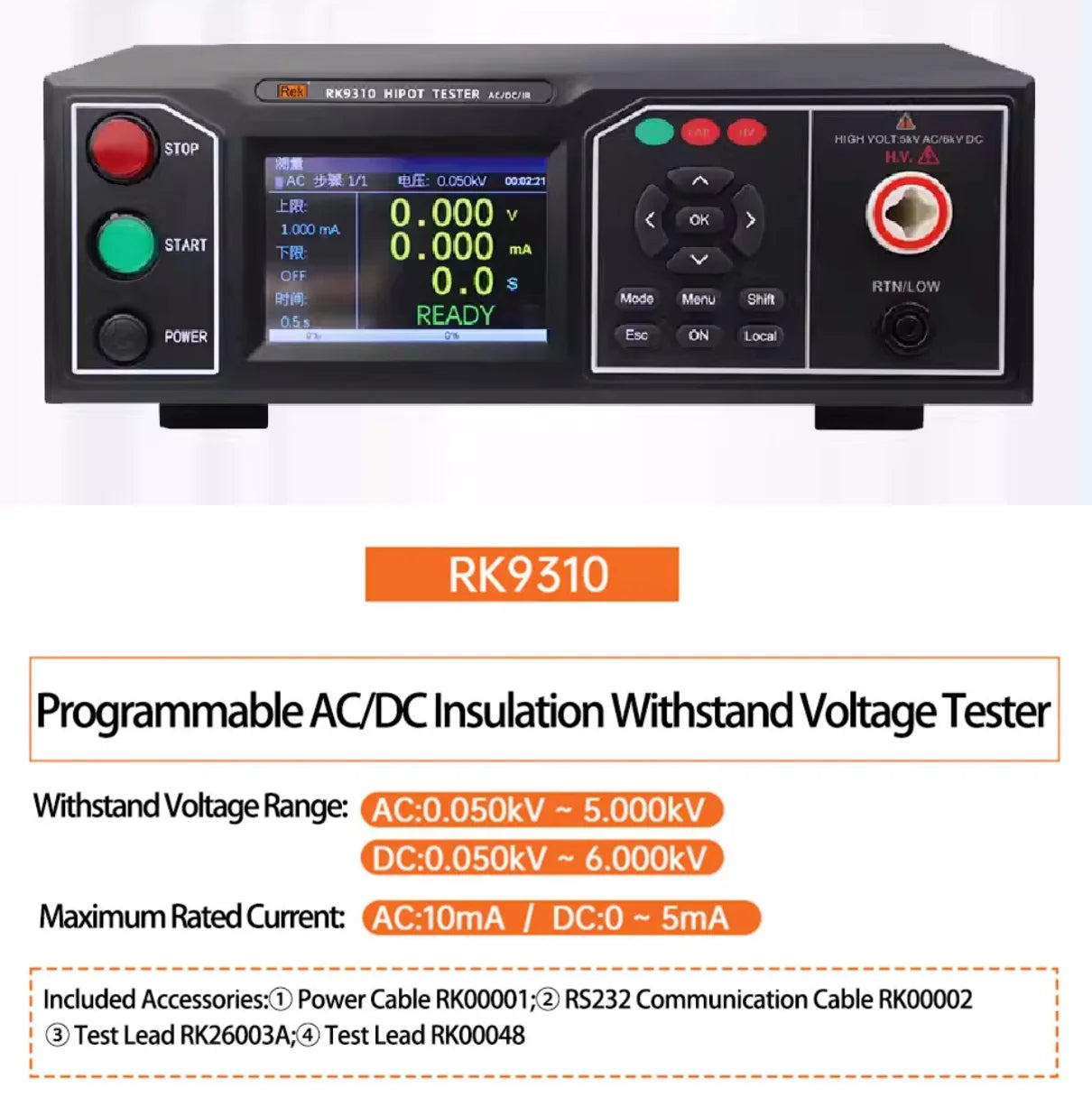

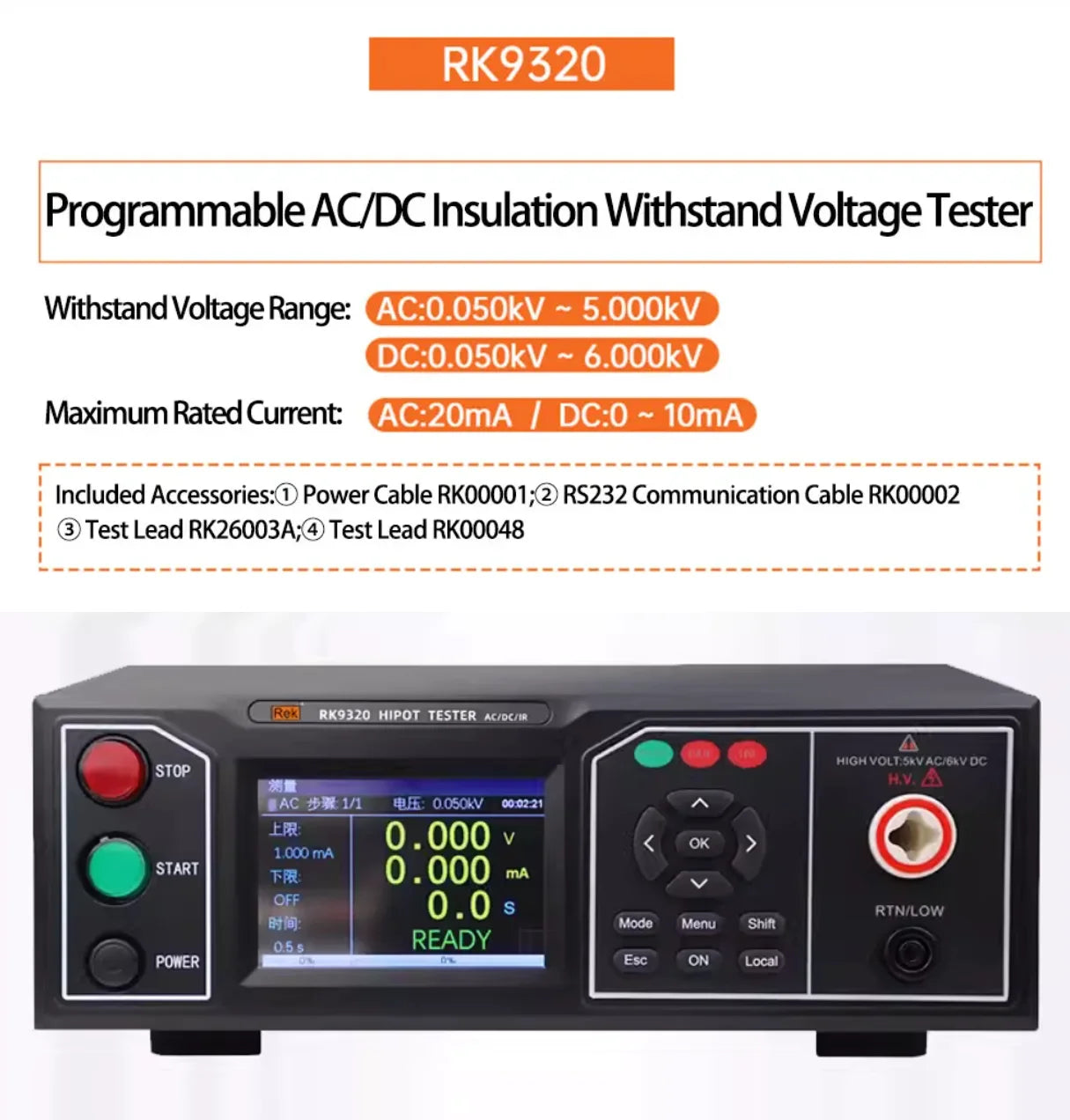

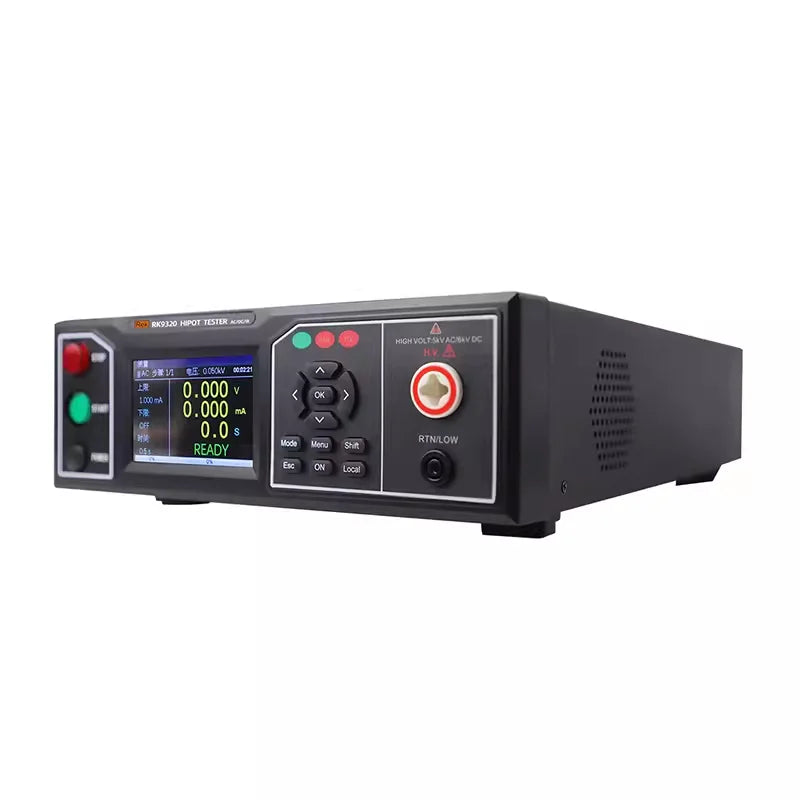

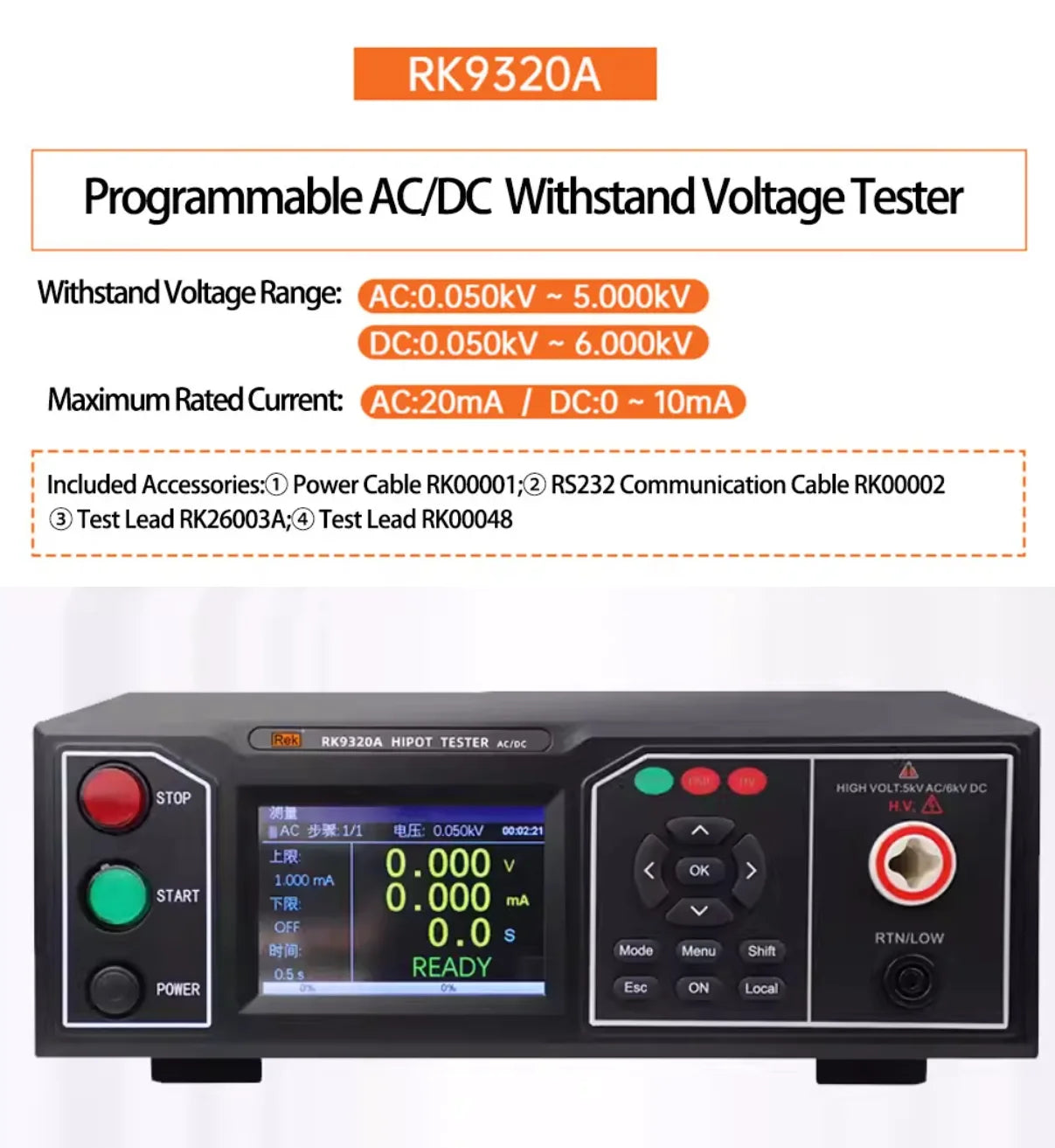

RK9310 RK9320 RK9320A RK9320B Programmable Hipot Tester AC 5kV DC 6kV Withstanding Voltage Insulation Safety Tester

$460.79 USD

~~$0.00 USD~~ $460.79 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Color RK9310 RK9320 RK9320A RK9320B

Characteristics

The AC/DC withstand voltage test function adopts DDS digital signal synthesis technology, generating accurate, stable, pure, and low-distortion waveforms.
The high-voltage rise and fall time is adjustable to meet the testing requirements of different test objects. It also features arc detection, and test results can be stored simultaneously.
Supports dual-frequency comprehensive testing with selectable 50Hz and 60Hz frequencies. The user-friendly interface supports digital keypad input and rotary knob input for easier operation.
Provides complete operation help prompts, effectively improving user efficiency. Supports character-based file name input, with a maximum file name length of 12 characters.
Test steps and system status information are displayed synchronously, allowing users to clearly monitor the testing process and system status in real time.
Features a bilingual operation interface to meet the needs of different users and supports large-capacity data storage, adapting to various testing application requirements.

	Model	AC-DC insulation withstand voltage tester	AC DC insulation withstand voltage tester	AC DC voltage tester	AC voltage tester
		RK9310	RK9320	RK9320A	RK9320B
Ac withstand voltage test	Voltage range	0.050kV ~ 5.000kV
	Voltage accuracy	±(2%+5V)
	Resolution	1V
	Maximum output power	50VA ( 5.000kV/10mA)	100VA ( 5.000kV/20mA)
	Maximum rated current	0~10mA	0~20mA
	Lower current range	0 ~10mA,0=Lower limit of nonjudgment	0 ~ 20mA,OFF=Lower limit of nonjudgment
	Output waveform	Sinusoidal wave
	Output waveform distortion degree	≤ 5% (no-load or pure resistive load)
	Output signal type	DDS linear power amplifier
	Voltage rise time	0.1s~999.9s,OFF= voltage rise time off
	Test time	0.1s~999.9s,OFF= continuous test
	Voltage drop time	0.1s~999.9s,OFF= voltage drop time off
DC withstand voltage test	Voltage range	0.050kV ~ 6.000kV			/
	Voltage accuracy	±(2%+5V)
	Resolution	1V
	Maximum output power	30W ( 6.000kV/5mA)	60W ( 6.000kV/10mA)
	Maximum rated current	0 ~ 5mA	0 ~ 10mA
	Lower limit current range	0 ~ 5mA	0 ~ 10mA
	Ripple factor	≤ 5% (6kV/5mA)	≤ 5% (6kV/10mA)
	Discharge time	≤ 200ms
	voltage rise time	0.1s ~ 999.9s ,OFF= Voltage rise time off
	Test time	0.3s ~ 999.9s ,OFF= Continuous testing
	Voltage drop time	0.1s ~ 999.9s ,OFF= Voltage drop time off
Insulation test	Output voltage setting	0.050kV ~ 5. 000kV Resolution: 1V volts/Step		/
	Resistance upper limit setting	Range: (0.2M ~ 100) GΩ
	Lower limit setting of resistance	Range: (0.1M ~ 100) GΩ
	voltage rise time	0.1s ~ 999.9s ,OFF= Voltage rise time off
	Test time	0.3s ~ 999.9s ,OFF= Continuous testing
	Voltage drop time	0.1s ~ 999.9s ,OFF= Voltage drop time off
	ohmmeter	≥500v 0.10MΩ-1.0GΩ ±5% 1.0G-50.0 GΩ ±10% 50.0 GΩ-100.0 GΩ±15% <500V 0.20MΩ-1.0GΩ ±10% 1.0GΩ-10.0GΩ No precision requirement
Arc detection		1mA-10mA	1mA-20mA
Input characteristic		100V~240V 50Hz/60Hz
Screen size		3.5-inch TFT LCD screen

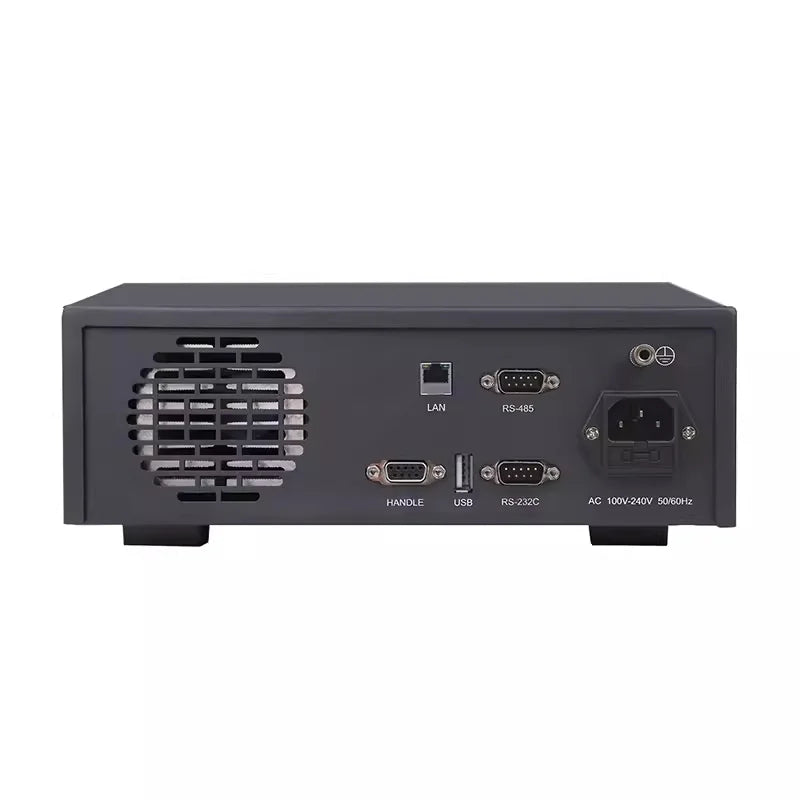

Communication interface		HANDLER, RS232, USB interface, LAN
External (W × D × H)		*40026088mm*
Weight (KG)		6.5KG
