PROVA A1 AC DC True RMS Digital Clamp Meter Multimeter Current Voltage Resistance Tester

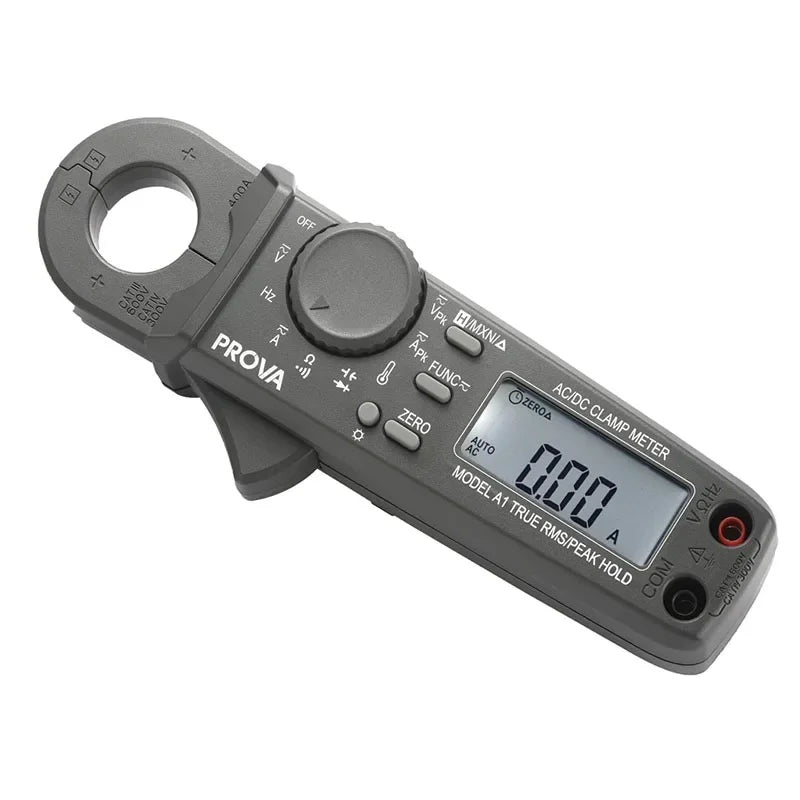

PROVA A1 AC/DC Clamp Meter (TRMS)

Description

1. Best resolution of AC/DC current measurement: 10mA.
2. AC/DC current measurement: 400A.
3. AC/DC voltage measurement: 600V.
4. AC current measurement: TRMS.
5. Resistance, Continuity, Capacitance and Temperature (℃/℉) measurement.
6. Non-contact (A) and Contact (V) Frequency measurement.
7. Voltage/Current Peak value measurement.
8. Auto range: V, A, Resistance, Capacitance and Temperature.
9. Auto and Manual ranges.
10. 6000 counts.
11. One Touch Zero for DCA adjustment.
12. 25mm large jaw diameter.
13. Auto-power-off function (30 min.).
14. With backlight.
15. Max Hold, Peak Hold and Delta (Δ) functions.
16. Dual display: Hold + Ave, MAX + MIN, ΔMAX + ΔMIN.
17. Dual display: Hold + Ave, Peak Max + Peak Min, ΔPeak Max + ΔPeak Min.
18. On-line automotive battery and alternator testing Min battery cranking voltage and Max alternator charging voltage.
19. Low Pass Filter (LPF, 1KHz, -3dB) (e.g. for VFD measurement).
20. 600V overload protection for Resistance (Ω) and Capacitance measurement.
21. Ideal for works in crowded switch box or cable areas.
22. Applications:

(1) Troubleshooting in
i. Automotive Maintenance
ii. electric vehicle
iii. plant maintenance
iv. HVAC
v. telecom works
vi. marine
vii. motorcycle repairs

(2) DC charging current of batteries of electric vehicles.
(3) DC current consumption of DC motors of Drones.
(4) DC current output of solar panels.
(5) Measurements of voltage, current, and frequency of inverters (VFD).
(6) Temperature measurements of abnormal components.



General Specifications: Indoor Use
Conductor Size: 25mm max. (approx.)
Battery Type: two 1.5V SUM-3
Display: 6000 counts
Range Selection: Auto and Manual
Overload Indication: OL
Power Consumption: 17 mA (approx.)
Low battery Indication:
Sampling Time: 2 times/sec.
Auto-power-off: 30 minutes
Operating Temperature: 0℃to 50℃
Operating Humidity: less than 85% relative
Altitude: up to 2000M
Storage Temperature: -20℃ to 60℃
Storage Humidity: less than 75% relative
Dimension: 190mm (L) x 66mm (W) x 36mm (H)
7.5" (L) x 2.6" (W) x 1.45" (H)
Weight: 250g (battery included)
Accessories: Carrying bag x 1
Users manual x 1
1.5V battery x 2
Test leads x 1
K-type thermocouples x 1
Adaptor (for Capacitance and K-type thermocouples) x 1

Specification:
