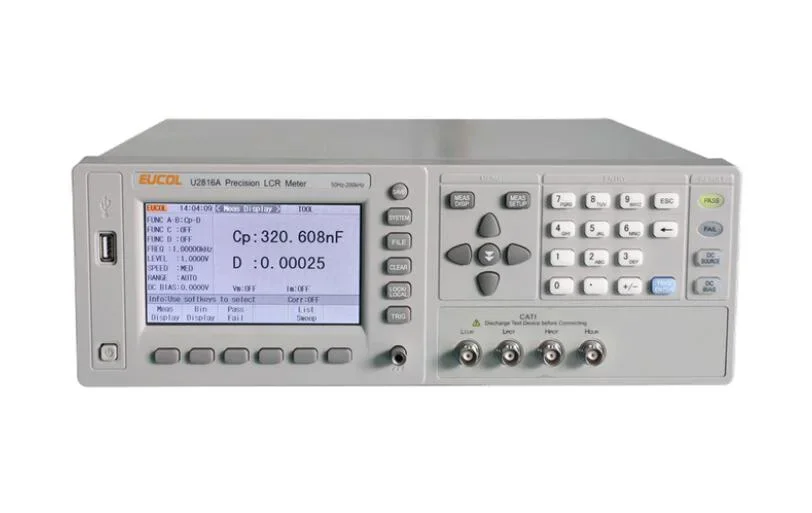

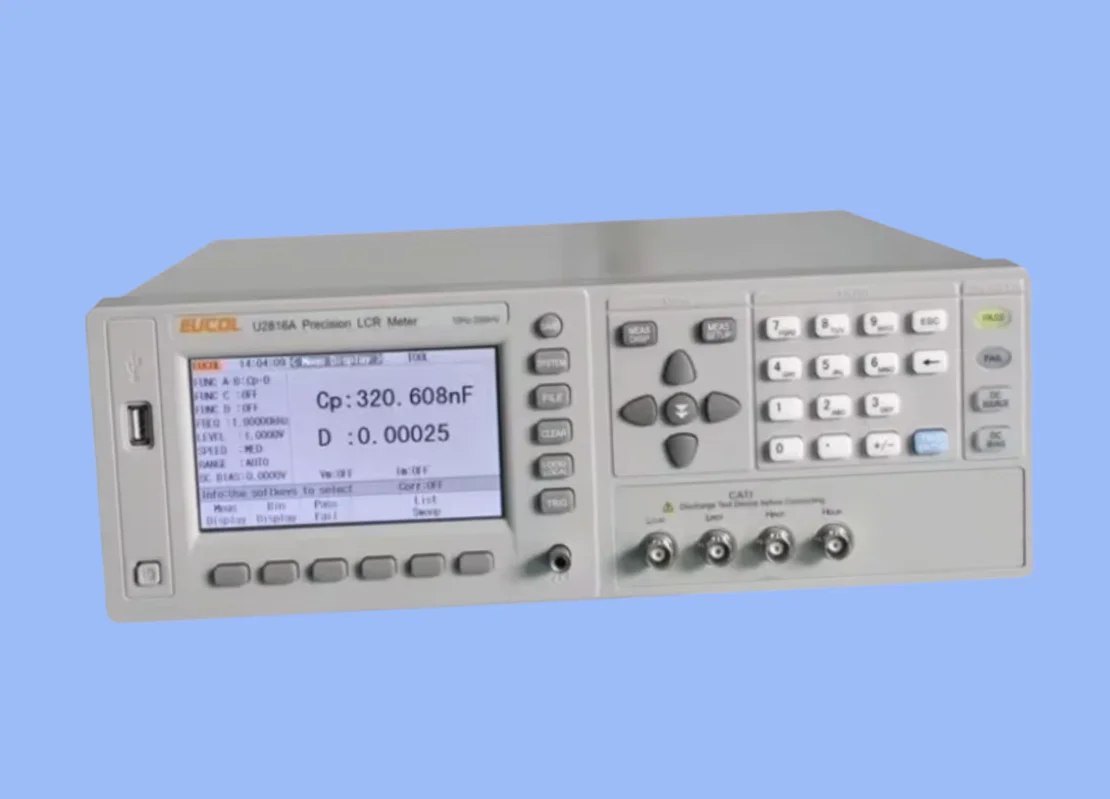

New U2816A Precision Digital LCR Meter Tester 50Hz–200kHz 1mHz Inductance Capacitance Resistance Analyzer
New U2816A Precision Digital LCR Meter Tester 50Hz–200kHz 1mHz Inductance Capacitance Resistance Analyzer
Normaler Preis
$1,448.32 USD
Normaler Preis
$0.00 USD
Verkaufspreis
$1,448.32 USD
Inkl. Steuern.
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
New U2816A Precision LCR Meter Tester 50Hz – 200kHz, Resolution:1mHz
Features
Simultaneously display of four different parameters with flexible combinations
AC and DC parameters can be measured simultaneously without interference; self-demagnetization
High speed and efficiency measurement: Max. 65 meas / sec (with display)
Built-in bias voltage: -5V- + 5V; resolution: 1mV
Support DC source output: continuously adjustable independent voltage source -10V ~ 10V, resolution of 2.5mV, low noise
Auto DUT trigger function: the DUT can be measured once be trigger and the measurement results and discrimination will be displayed.
Flexible limit comparator: support tolerance mode, sequence mode and parameter exchange
Rapid and easy determination of Pass/Fail through multi-parameter test function
Powerful list sweep function: mixed scanning of various excitation source and display of different parameters; also support multiple-channel scanners of devices
New graphical scanning functions: frequency / level / bias / DC source make nuanced analysis of elements
Complete user correction function: up to 32 dot frequency correction; can be applied to multi-channel scanning amendment for higher measurement consistency and repeatability
Rich communication interfaces: RS232C / USB-CDC / USB-TMC / HANDLER / GPIB
Multiple USB storage modes: CSV and TXT format for storing test data, BMP, PNG, GIF formats for stored on-screen images, U disk storage / recall setup files, U disk firmware upgrade
Storage / recall of Parameters: real-time storage of all parameters without losing after shutdown; supporting internal storage of 100 groups, external storage and recalling of 500 groups
Brief Introduction
U2816 Series Precision LCR Meter is a new generation of impedance test equipment with high accuracy, wide measurement range and six digits resolution. Being possessed with test frequency up to 200kHz, testvoltage of 10mV-2V, built-in typical DC bias and -10V-10VDC voltage source output, it can meet all requirements for measuring components and materials and provide guarantees for production line quality assurance, incoming inspection and laboratory precision measurements. Otherwise, the Handler, RS232C and GPIB interfaces as well as improved command system provided by the instrument make it easier to build the test system.
General Specifications
Temperature & Humidity |
0°C - 40°C, £90%RH |
|
Power Requirements |
Voltage |
99V - 242V |
Frequency |
47.5Hz - 63Hz |
|
Power |
≤60 VA |
|
Dimension(W×H×D) |
350mm×120mm×360mm |
|
Weight |
approx. 3.5kg |
|

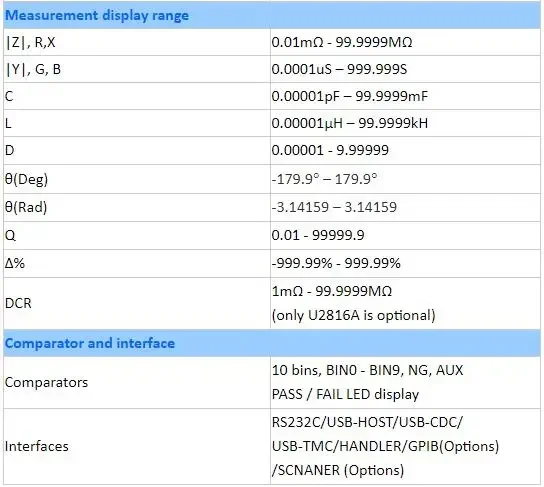

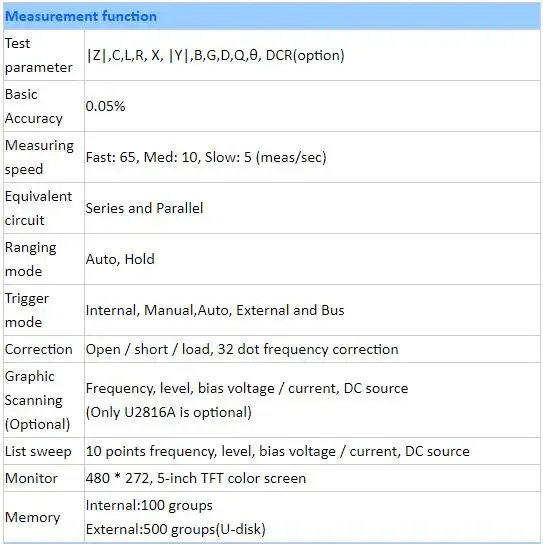

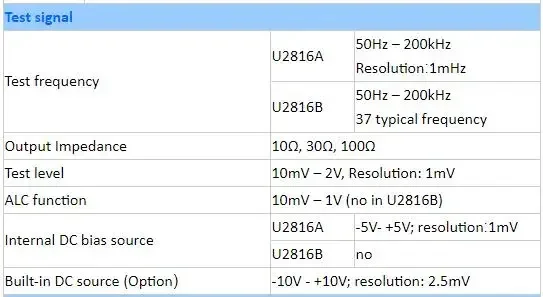

Specifications
