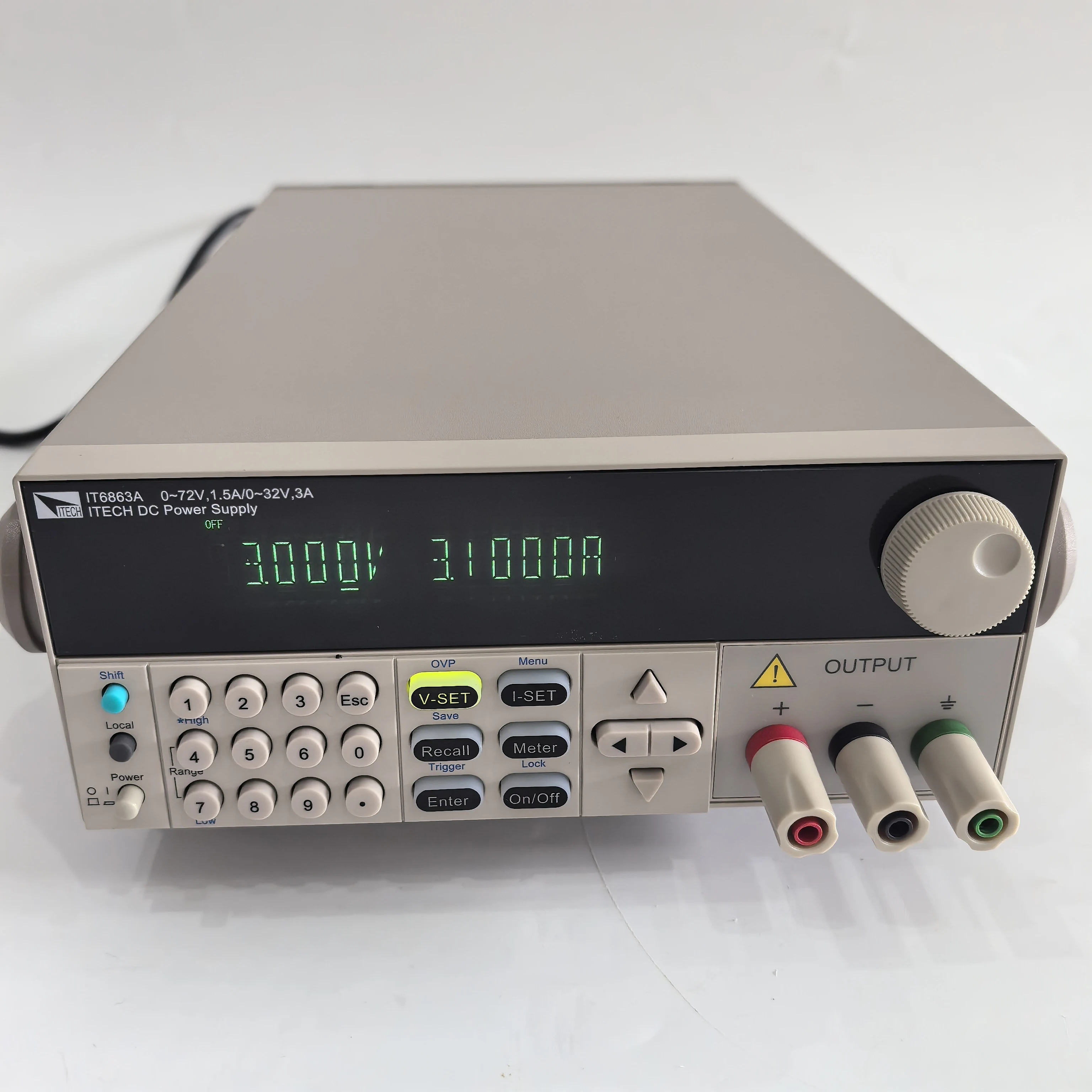

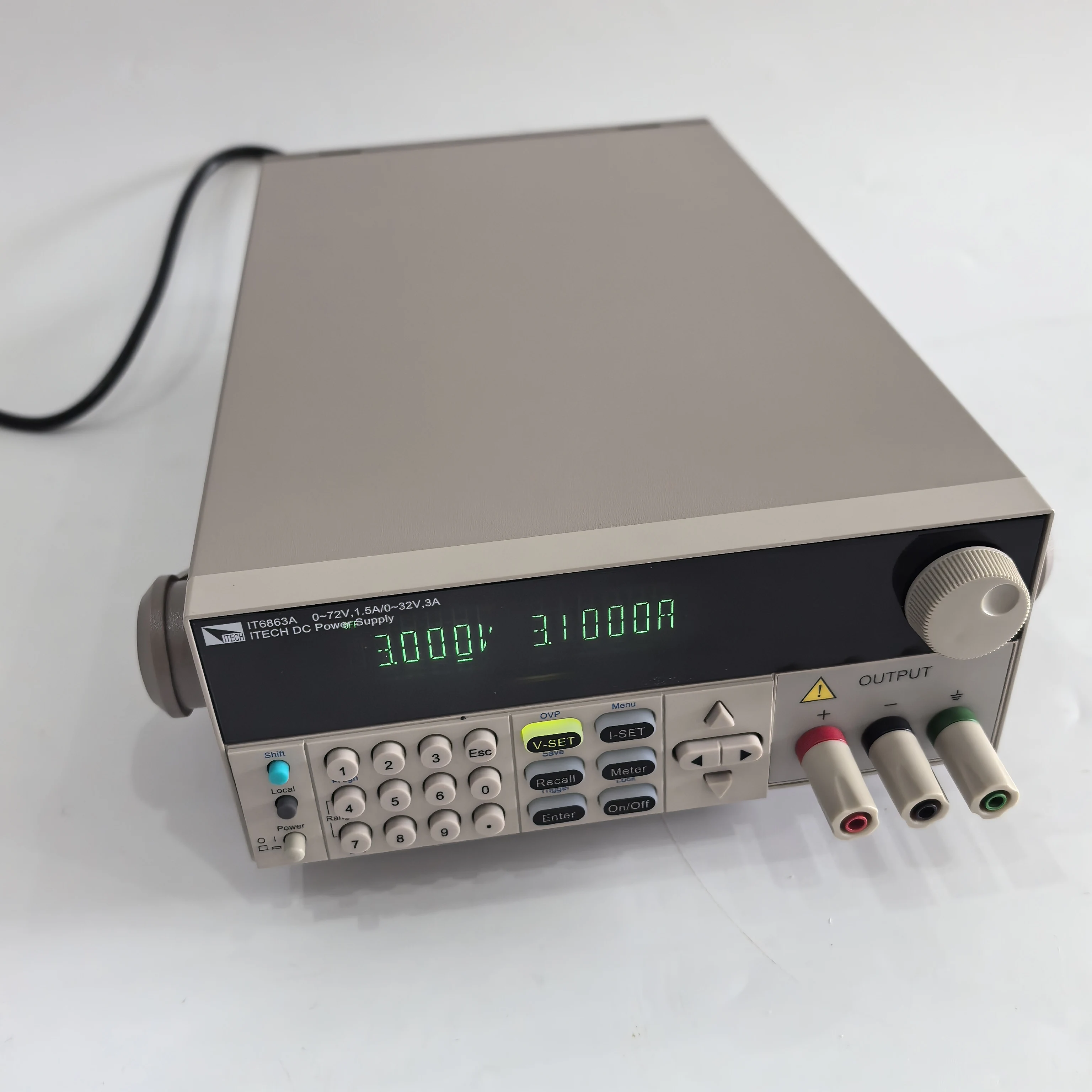

ITECH IT6863A Dual-Range Programmable DC Power Supply (0-72V/1.5A or 0-32V/3A, 108W/96W)

ITech IT6863A 72V/1.5A/108W 32V/3A/96W DC Power Supply

IT6860A series (72~108W) power supplies are programmable dual-range output power supplies.Voltage 8V~150V,current 1.5A~9A.With high resolution of 1mV, 0.1mA,which can test the products with different power range.You can adjust the voltage/current stepping by pressing the left and right keys to moving the cursor.It supports output timer function and programs by the front panel,which will bring great convenience.Their built-in RS232 and USB communication interfaces make the communication much faster.Each power supply has 2 voltage output ranges and 2 current output ranges,one set of IT6860A can work as two sets of the traditional supplies.Greatly saving your cost and operation space.

Product features

72V/1.5A/108W 32V/3A/96W DC power supply

IT6863A DC Power Supply 72V/1.5A/108W 32V/3A/96W

Convenient data entry via knob or numerical key pad

High accuracy and high resolution

Low ripple and low noise

Features:

·Dual range ouput

·Convenient data entry via knob or numerical key pad

·High accuracy and high resolution

·Low ripple and low noise

·Intelligent fan control, energy conservation, noise reduction

·Timer function (0.1~9999.9S)

·Built-in RS232/USB communication interface

·Support SCPI command,compatible IT6800 frame formate protocol

Support SCPI command, compatible IT6800 frame formate protocol

Built-in RS232/USB communication interface

Convenient data entry via knob or numerical key pad

Intelligent fan control, energy conservation, noise reduction

High accuracy and high resolution
