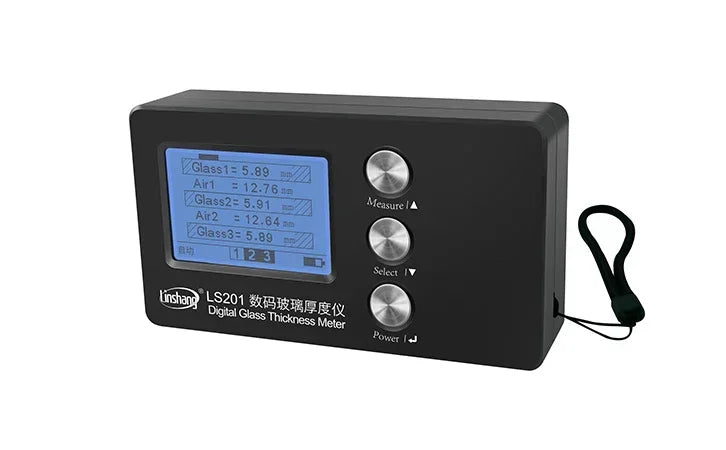

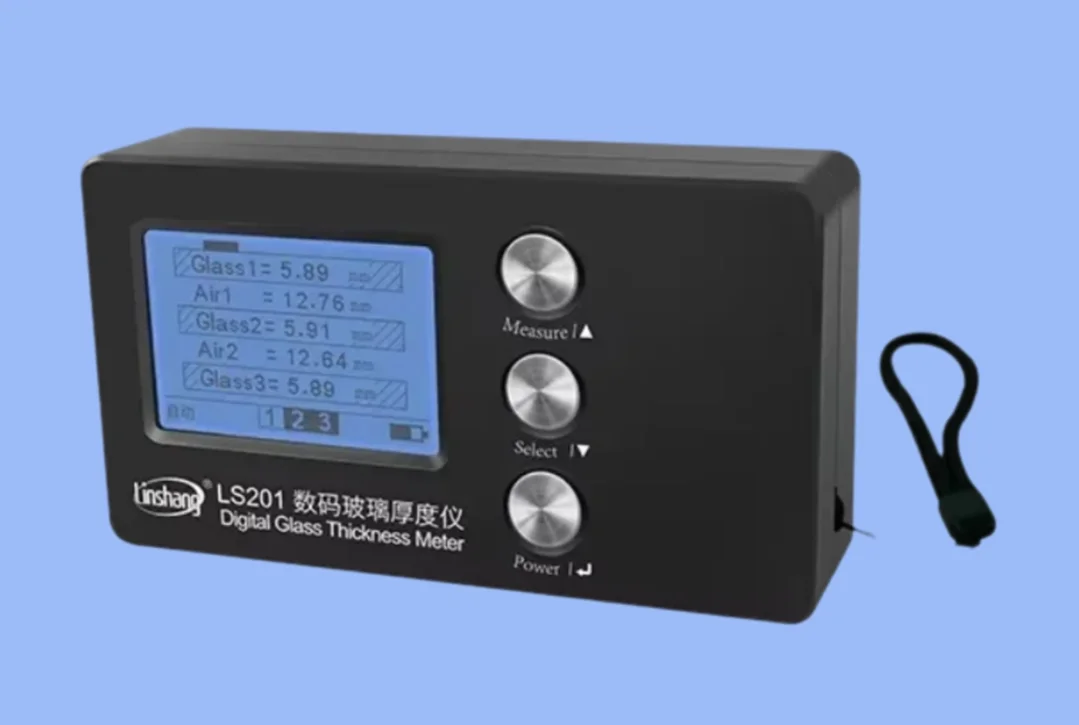

Digital Glass Thickness Gauge Meter Measuring Tool for Glass and Air Space Thickness Measurement in Windows and Doors

Product Overview

Digital Glass Thickness Gauge Meter Measuring Tool for Glass and Air Space Thickness Measurement in Windows and Doors is available from FMF Supply. Use the product details, images, and option selector on this page to confirm the exact model, size, and configuration before ordering.

Key Details

• Product name: Digital Glass Thickness Gauge Meter Measuring Tool for Glass and Air Space Thickness Measurement in Windows and Doors
• Product type: Testing Meter
• SKU reference: FMF-TM-04281
• Check the selected option and product images before purchase.

Specifications and Notes

• digital glass thickness meter makes use of optical reflection principle to measure the thickness of the glass surface on one side.
• The meter applies CCD detection, with LCD display.
• It is easy to operate and quick and reliable in measuring.
• Dimension: 130mm× 72mm × 33mm（L× W× H） 2.
• Weight: 330g 3.
• Measuring accuracy: ±0.1mm 4.
• Range: 70mm of glass thickness, 45mm of air space 5.
• Power Supply: 4 AAA batteries Features 1 2.
• Quick measurement ,the accuracy is up to 0.1mm 4.

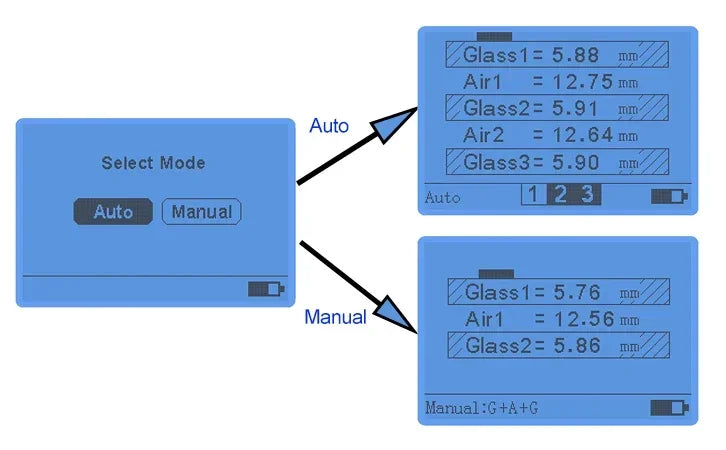

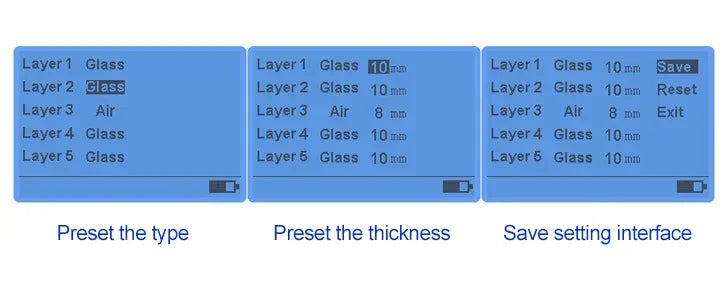

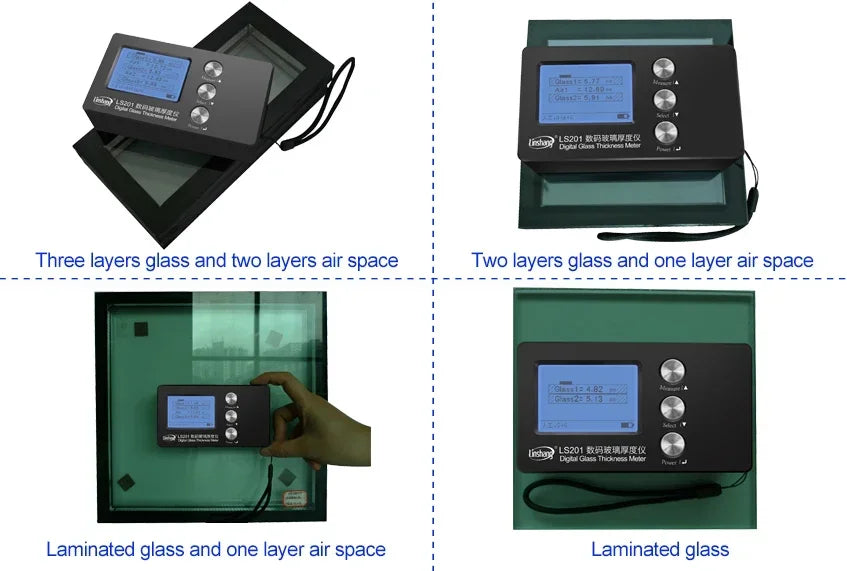

• Can measure three layers of glass with two layers of air space and insulating laminated glass, etc.

FAQ

How do I choose the right option?

Match the option name, SKU, product images, and listed specifications with the model, size, or configuration you need.

What should I confirm before ordering?

Confirm the product model, dimensions, voltage or power requirements, capacity, material, and included accessories when those details are shown for this item.
