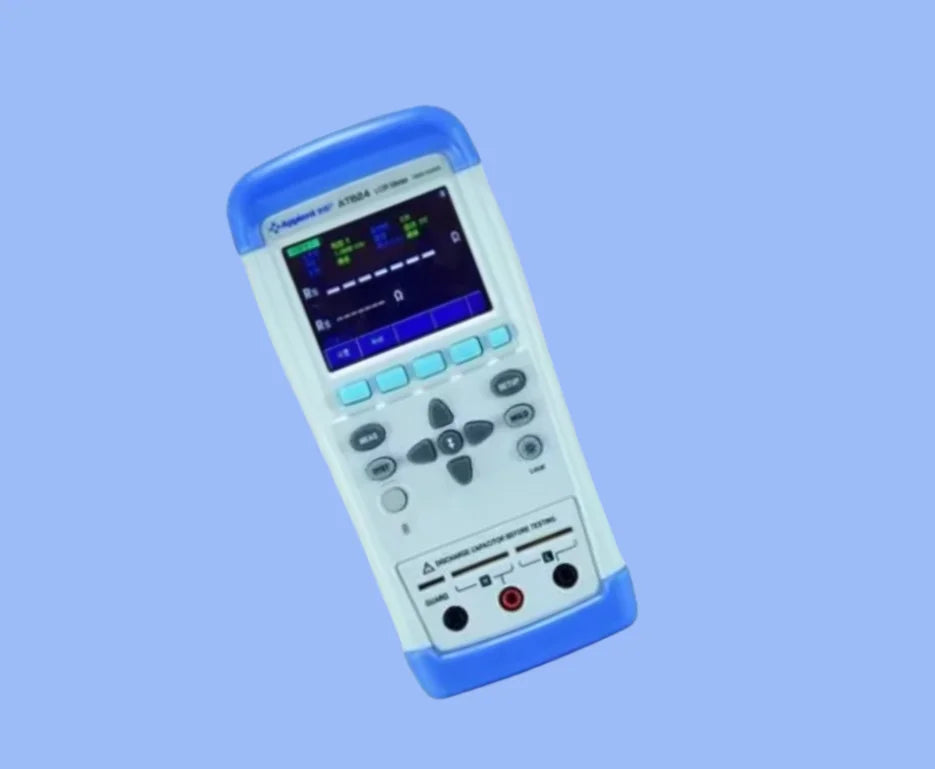

• Brand New AT824 Digital LCR Meter Tester Inductance Capacitance

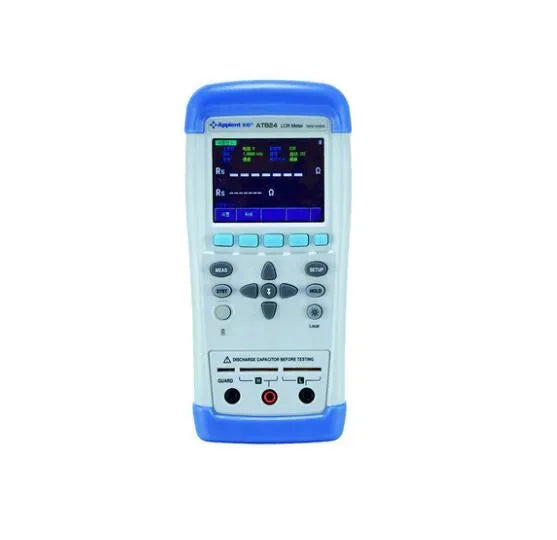

  • Brand New AT824 Digital LCR Meter Tester Inductance Capacitance Resistance Analyzer for product detail image
1 2

FMF Supply

Brand New AT824 Digital LCR Meter Tester Inductance Capacitance Resistance Analyzer for Laboratory

Brand New AT824 Digital LCR Meter Tester Inductance Capacitance Resistance Analyzer for Laboratory

$234.04 USD
$0.00 USD $234.04 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Brand New AT824 Digital LCR Meter Tester



Introduction

AT826, 825, 824 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration. With the highest frequency of 100Khz, constant 100Ω source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld.

Specifications:


Parameters

L, C, R, Z

Monitoring

D, Q, θr, θd, X, ESR

Accuracy

0.20%

Frequency

100Hz, 120Hz, 1kHz

Display Range

L: 0.01μH-9999H;
C: 0.01pF - 9999μF;
R,Z: 0.0001Ω - 99.99MΩ ;
D,Q: 0.0001 – 9999;
θ(deg): -179.99° -179.99°;
θ(rad): -3.1416– 3.1416;
Δ%:   -9999%~9999%

Source Resistance

100Ω

Range

Automatic and manual

Max Reading

Main parameters: 49999   Sub parameters: 49999

Signal Level

1Vrms

Speed

4 times/second, 1.5 times/second

Comparator

One group record, main parameters compare

Correction

Open and short, sweep frequency

Interface

Build-in Mini-USB interface (virtual serial), charging interface

Others

2.8 inches true color 16M Touch Screen TFT-LCD display;
keypad lock and data hold function;
USB communication, compatible SCPI order set;
Switch in both English and Chinese;
adjustable back light;
automatic power off;

General Features:


Adapter

Input: 100 – 240 V  50/60Hz 0.35A
Output: 9V 1A DC

Battery parameters

8.4V, Li, 1400mAh rechargeable battery,

Charging Time

single continuous charging time: Max 200Min

Working Time

Light 30%, over 14 hours, Light 50% over 12 hours, light 100%, over 9 hours

Dimension & Weight

90 (width)*190 (height)*31(depth) mm;
Gross Weight: 400g

Accessories

Four-terminal Kelvin Clips;
DC Adapter;
Short-circuit slice;
Carrying Case;
Li battery;
Mini-USB communication cable;
Four-terminal test probe;
Data Acquisition Software
