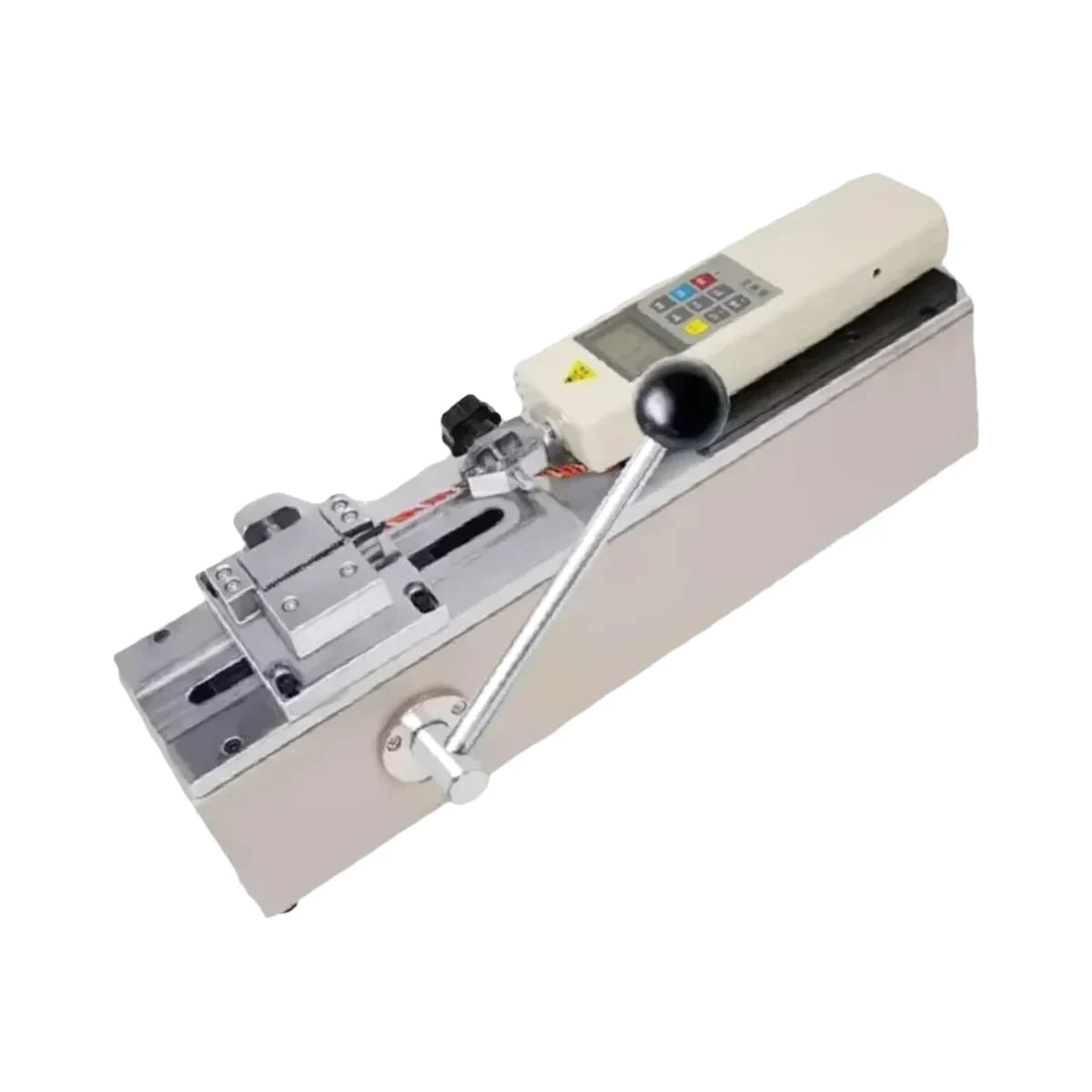

500N Wire Terminal Push Pull Force Tester Kit
This horizontal push pull force tester kit is used for mating and unmating force tests, wire terminal pull force tests, cable tension tests, and related fixture-based force testing. The standard kit includes a test stand, HF-500 digital force gauge meter, and fixture.
Included Test Setup
Horizontal manual test stand for table or platform installation.
HF-500 digital force gauge with 500N maximum load.
Fixture / clamp for terminal, cable, and material testing workflows.
Test Stand Specifications
Installation
Horizontal
Operation
Manual
Stand size
45 x 26 x 16 cm
Effective stroke
50 mm
Rated load
500N
Net weight
10.6 kg
Fixed clamp size
115 x 180 x 30 mm

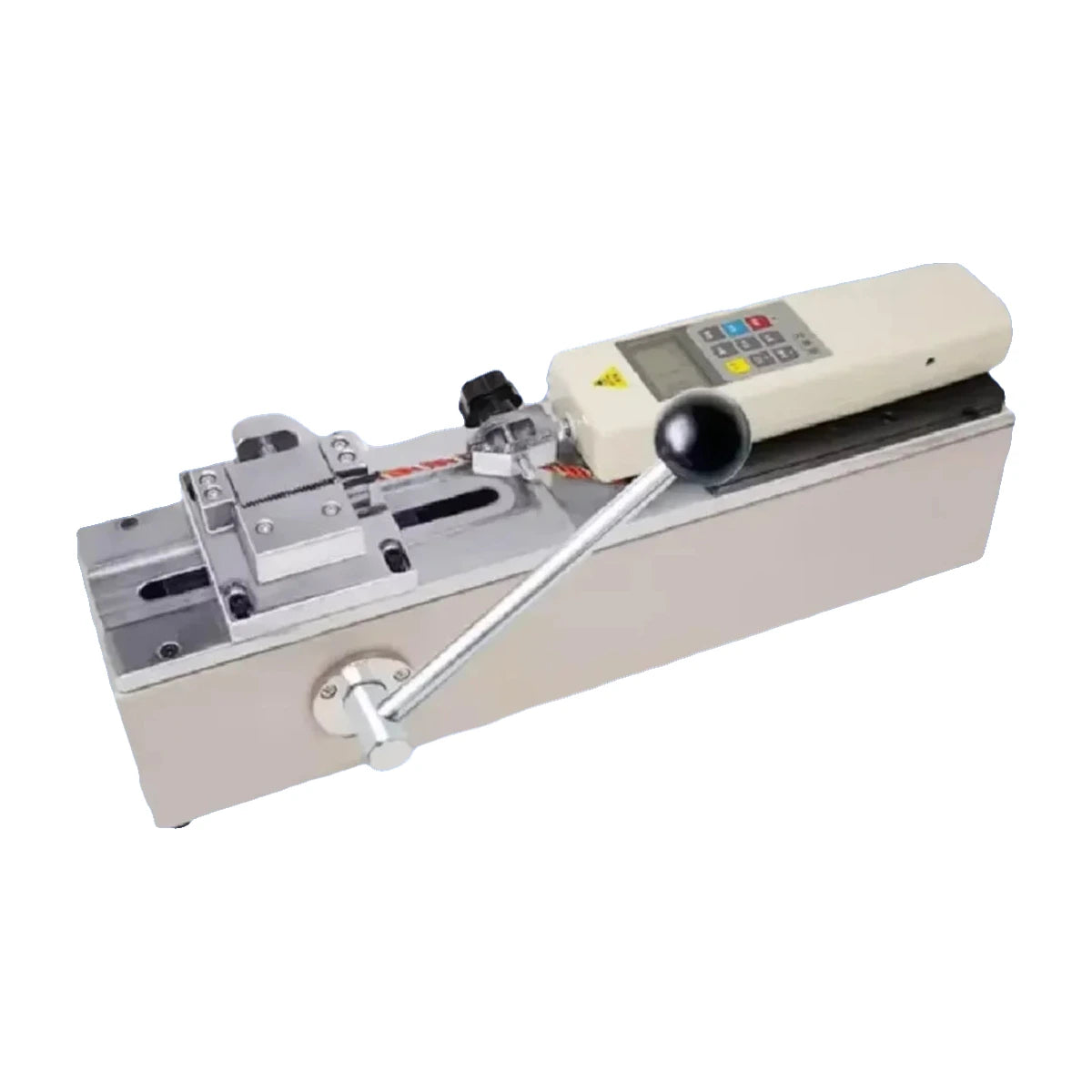

HF-500 Digital Force Gauge
Type
HF-500
Maximum load
500N
Units
kg, N, and lb conversion
Resolution
0.01N
Precision
±0.5%
Output interface
RS-232 nine-hole socket
Charging power
110-220V AC, 4-6 hours charging
Battery
7.2V Ni-MH battery pack; 6-8 hours continuous working time
Fixture Notes
The included clamp information is AJJ-06, 65 x 65 x 10 mm size, with 10 mm opening size. Confirm the test sample size and fixture fit before ordering.
