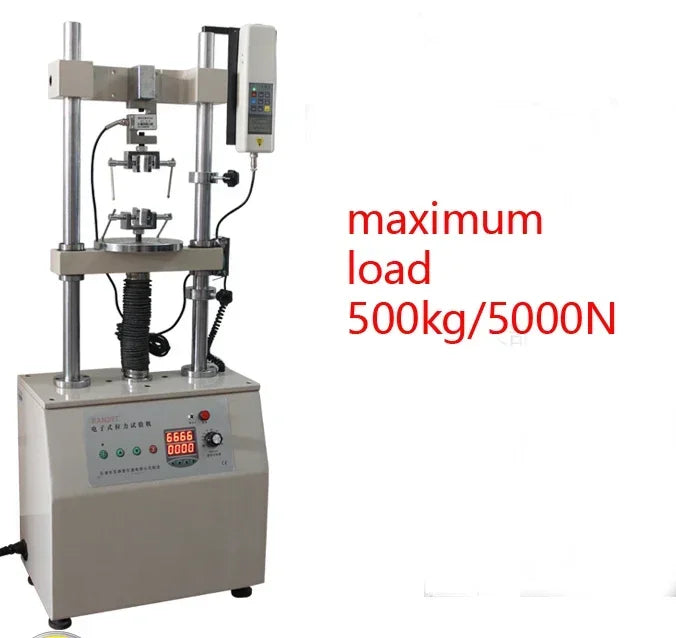

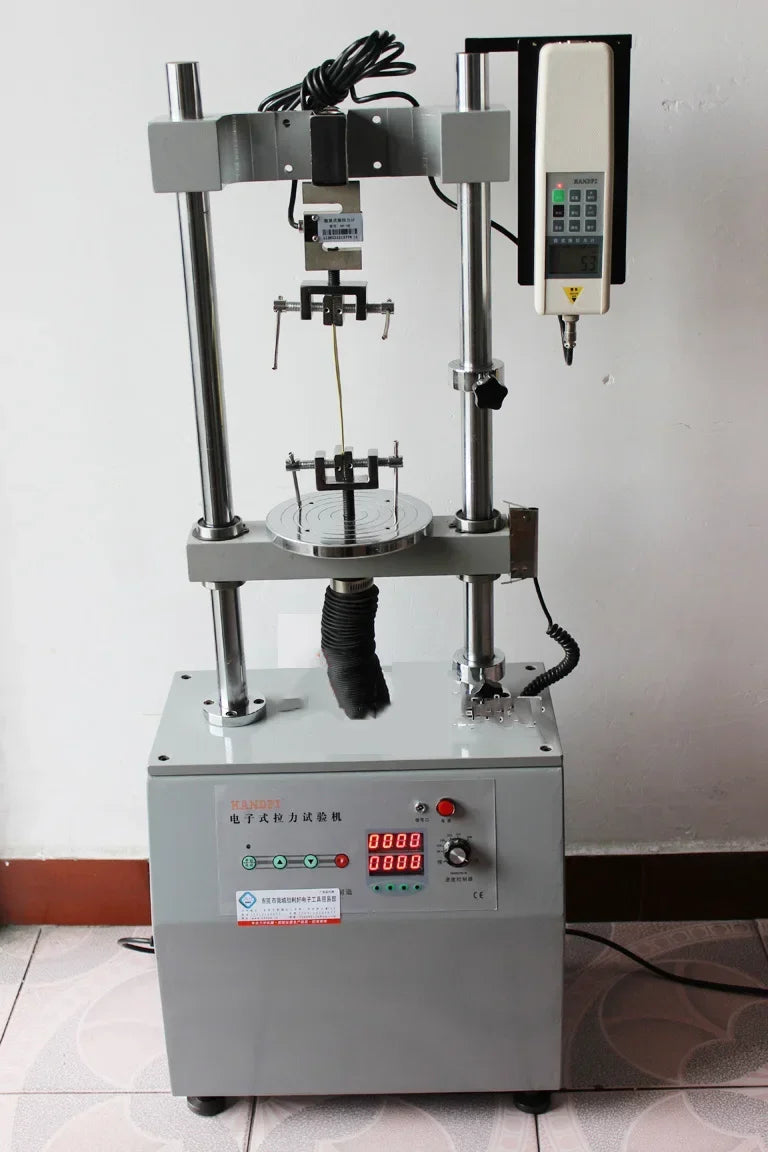

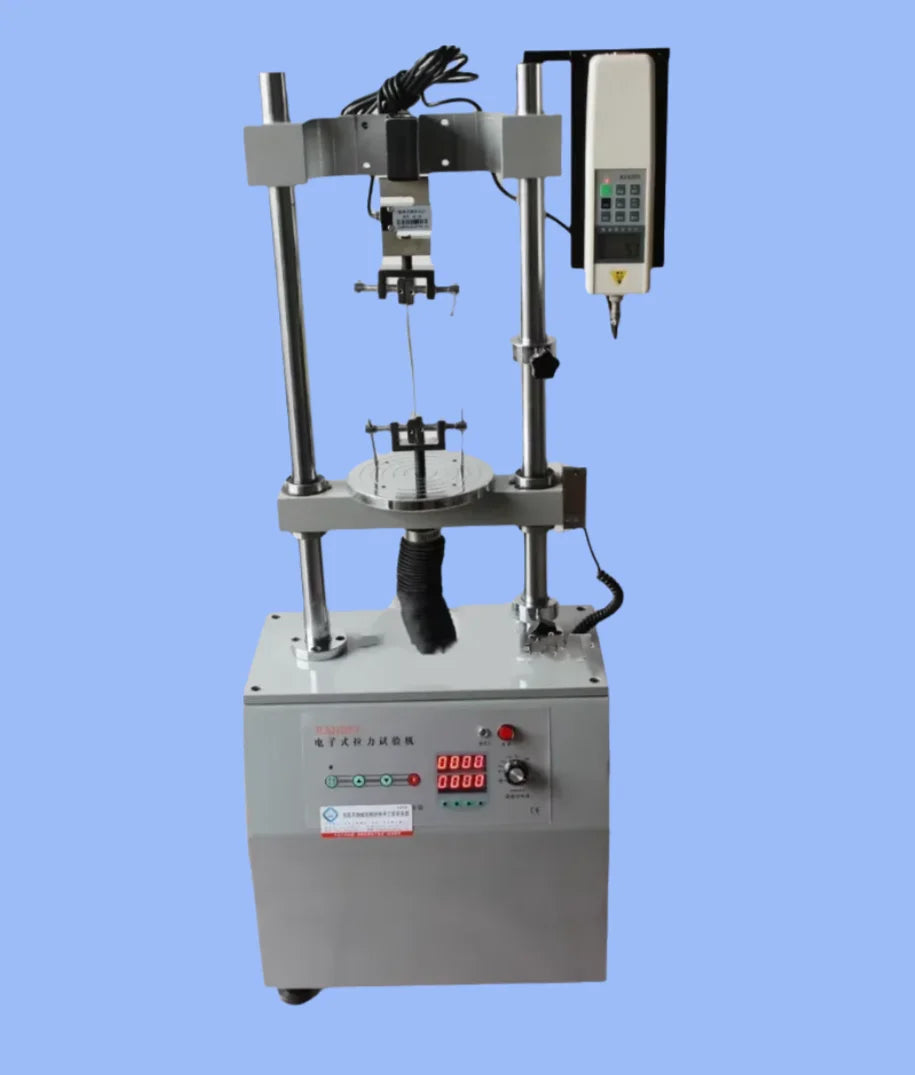

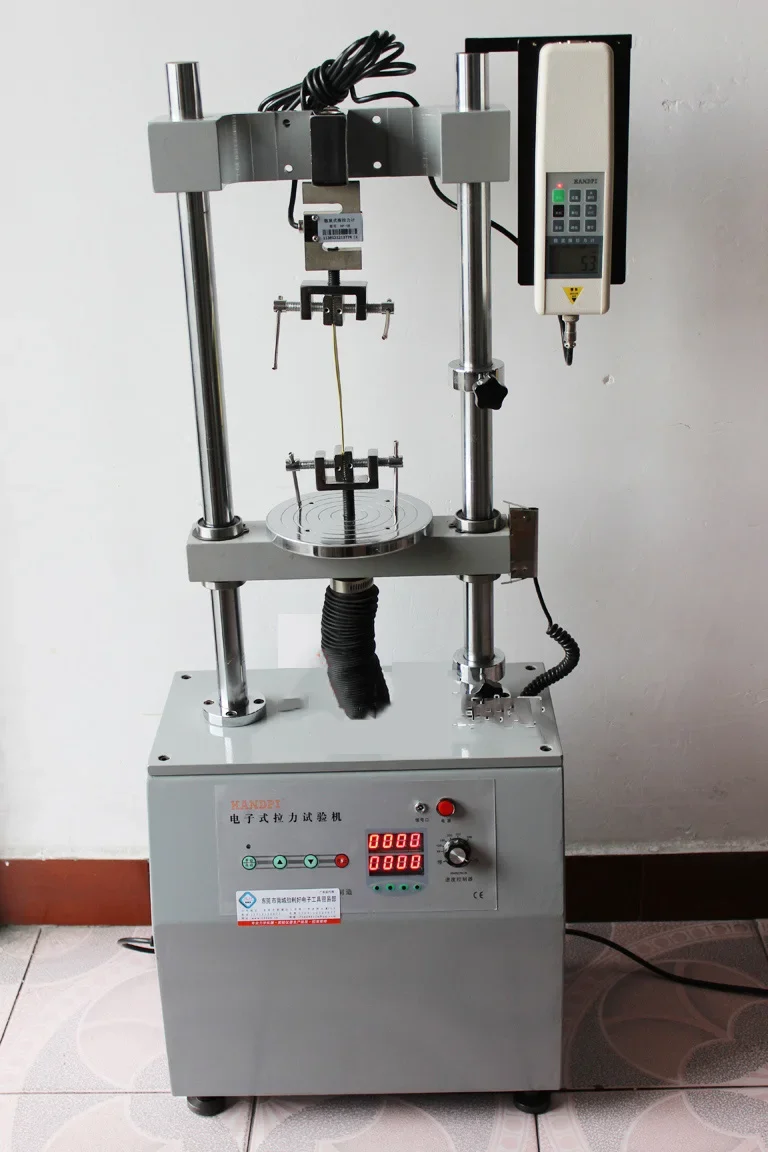

HDV-5000 Electric Double Column Vertical Test Stand 5000N 500KG Motorized Testing Machine 220mm
HDV-5000 Electric Double Column Vertical Test Stand 5000N 500KG Motorized Testing Machine 220mm
No se pudo cargar la disponibilidad de retiro
Function: |
|||
|
HDV-5K tensile testing machine dedicated to supporting the HP series and NK series push pull test of the use of. Has the stepless speed regulation; the manual test, the automatic test is optional; the test frequency or the test time can be preset; the test frequency automatic display; overload protection; high performance motor and so on. Wide application range, easy to use, widely used in the products of the push and pull load, pull out force, failure test, fatigue test and other tests. |
|||
technologyParameters:
Max load: 5000N;
Stroke: 220 mm;
Test speed: mm/min 30~300;
Exterior dimension: 410*260*1000 (mm);
Net weight: 75 Kgs;
Counting function: can set the working cycle number 9999 times;
Signal input: to achieve the set value, immediately stop work;
Safety: voltage overload protection, limit protection and external overload automatic stop protection;
Power supply: 220V AC;
