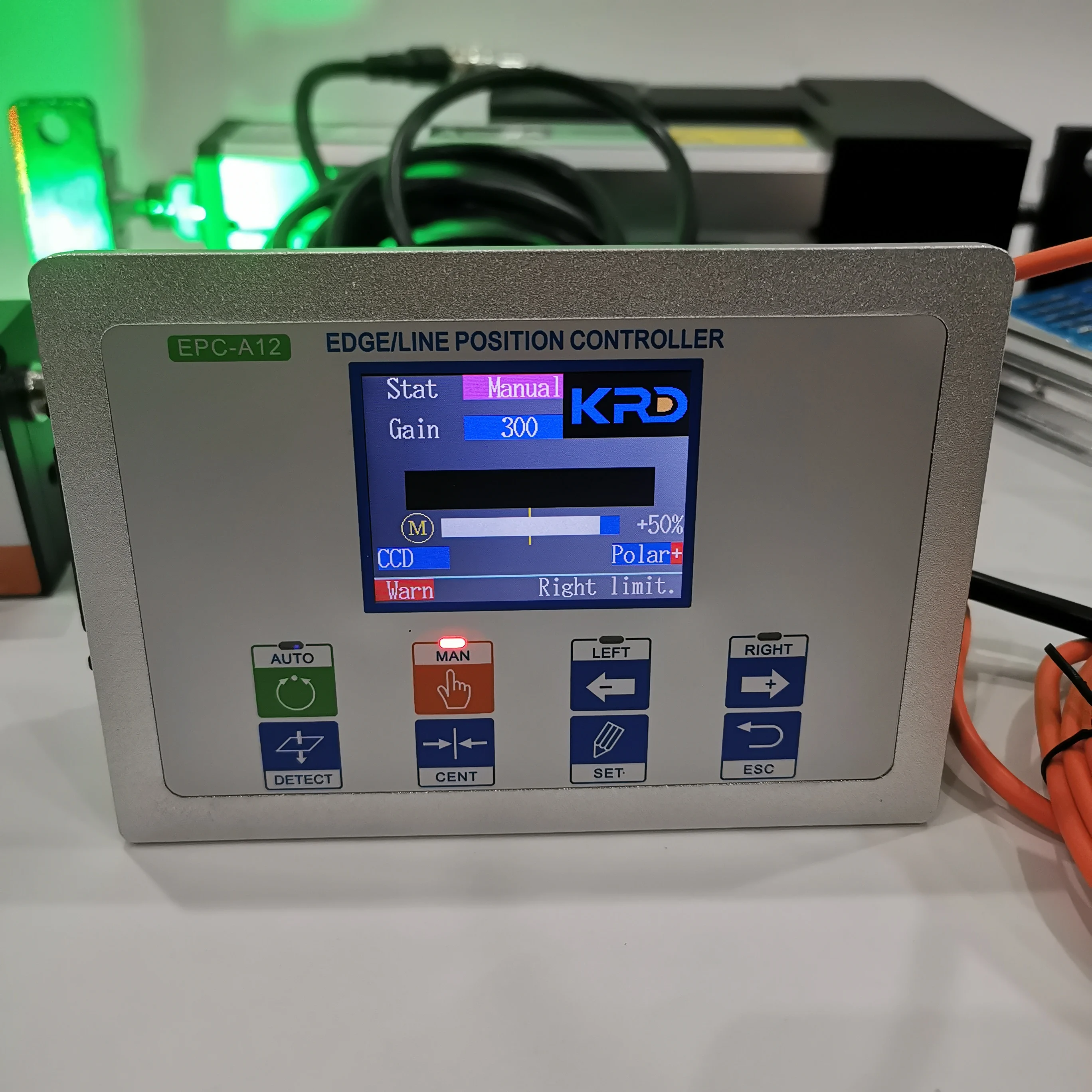

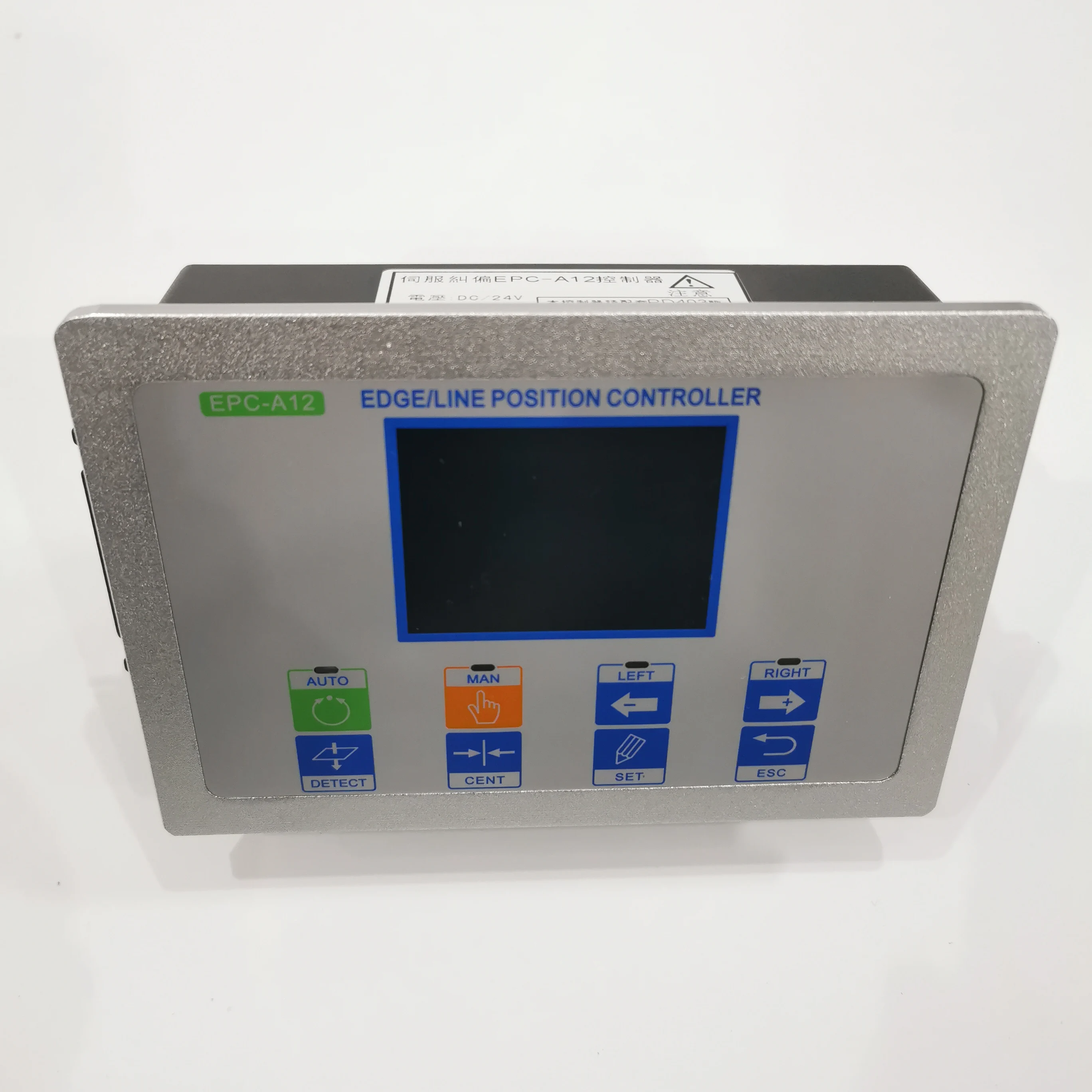

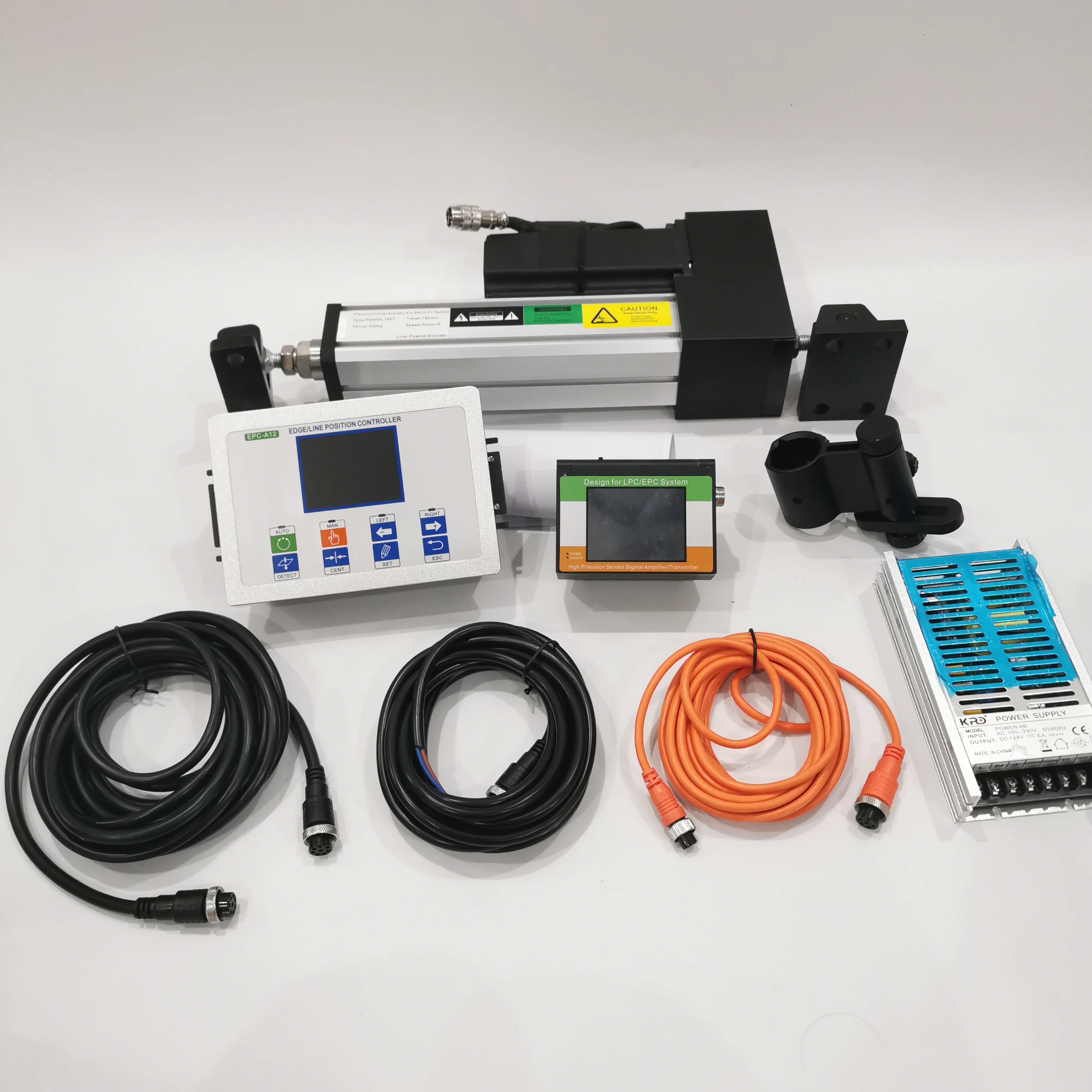

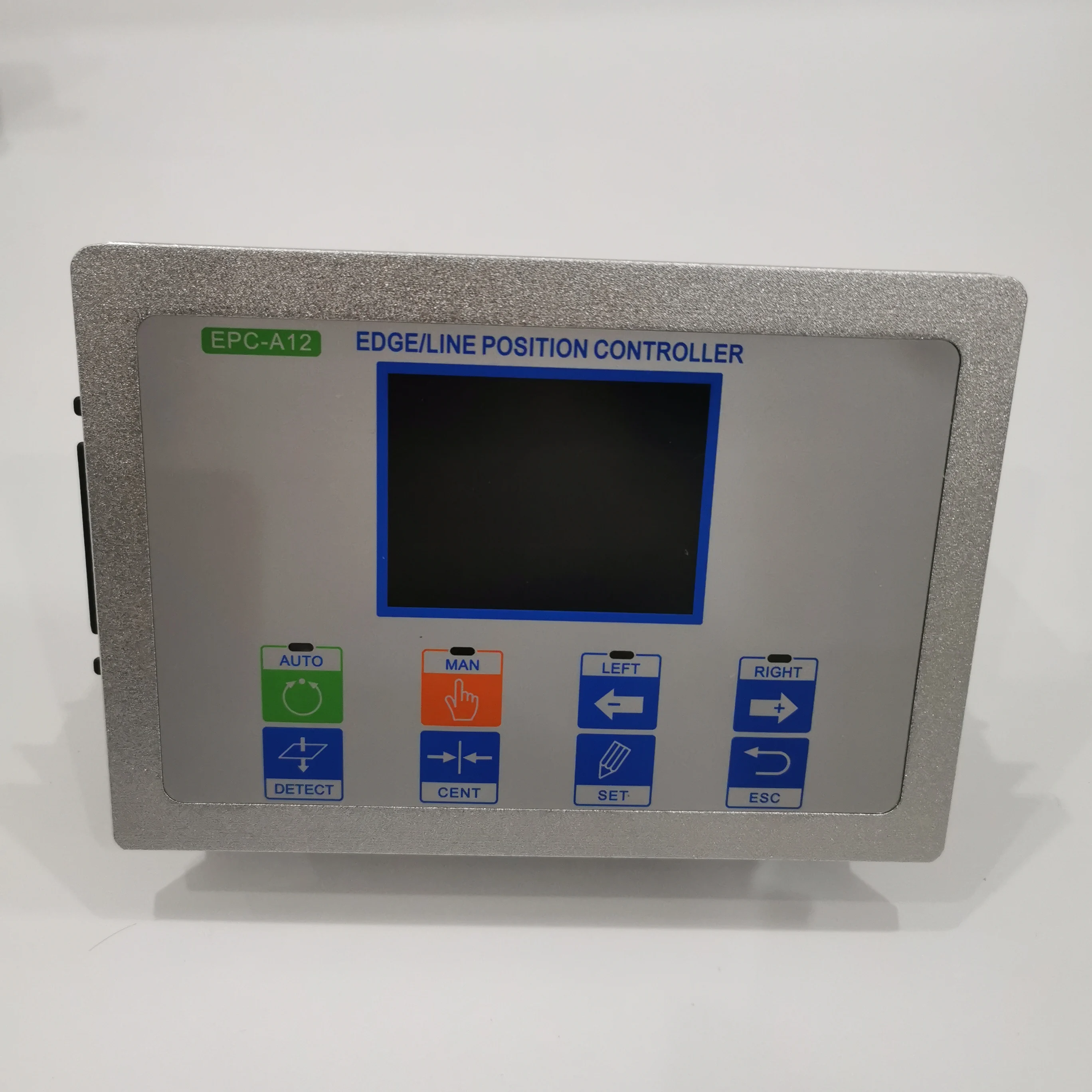

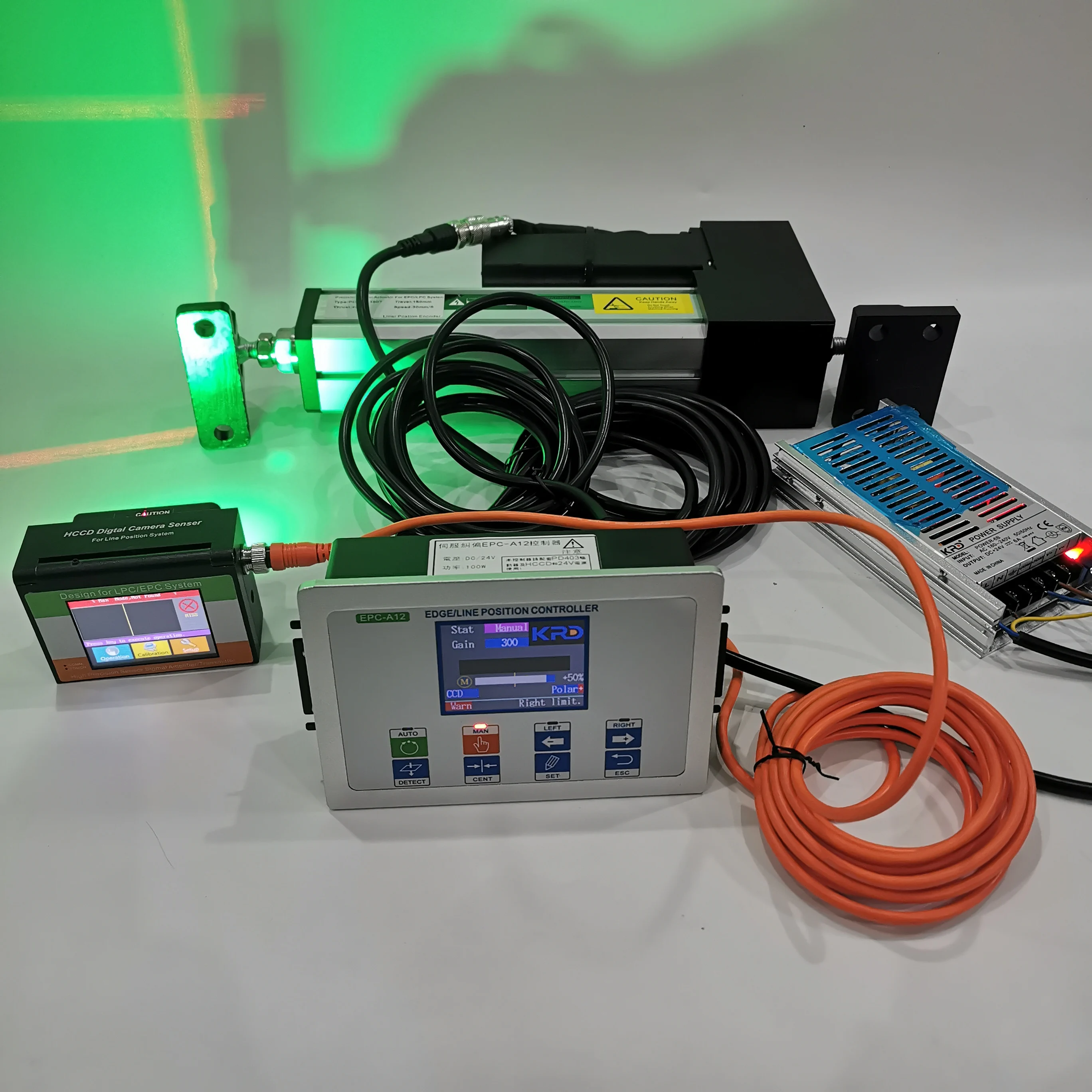

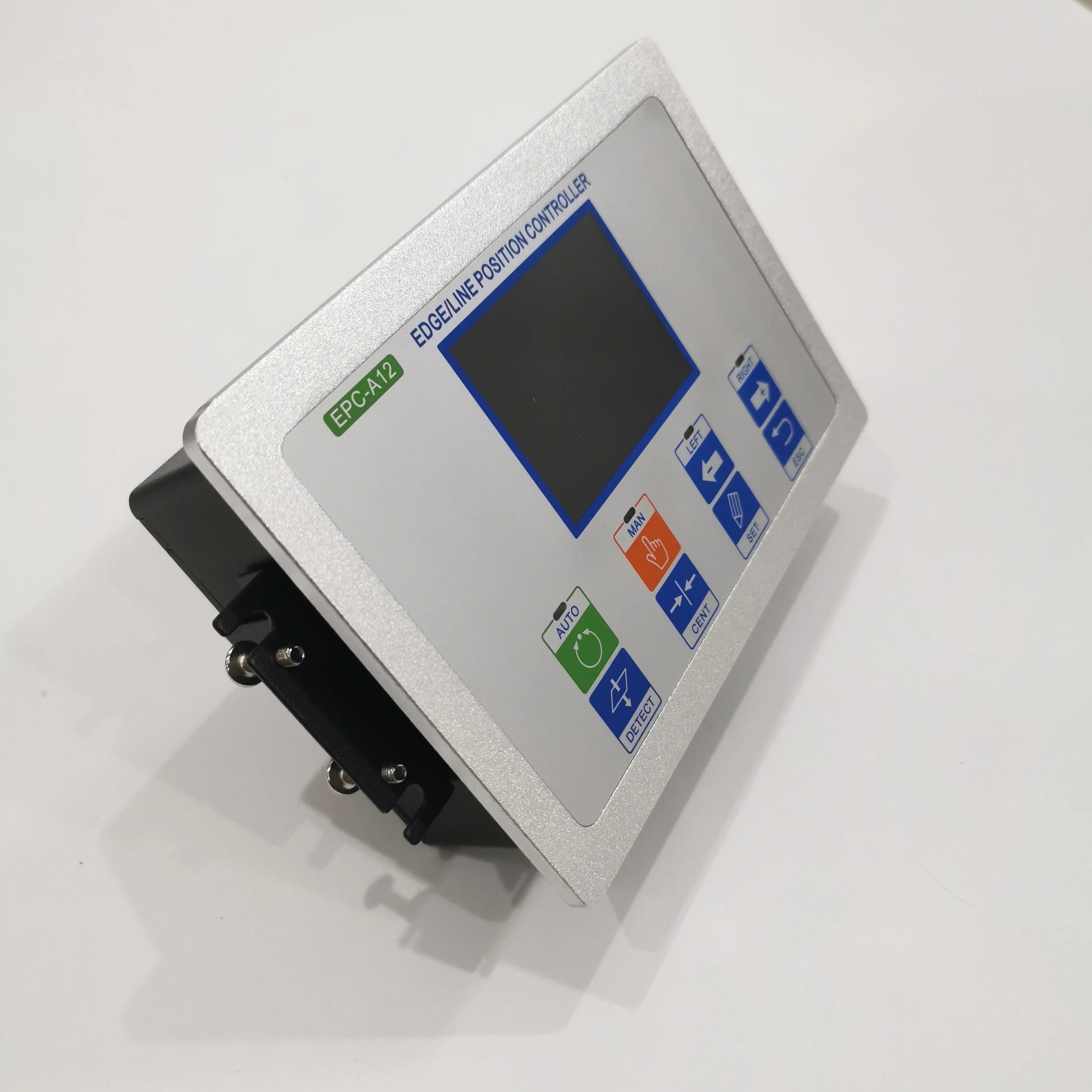

EPC-A12 Web Guiding System | EPC/LPC Edge Position Controller with CCD Sensor & PD403L150T 400kg Servo Actuator

• Motor high-performance vector drive, fast speed response, support direct torque control, acceleration and deceleration speed limit.

• High speed CPU operation, supporting EPC and edge LPC line, CPC alignment, SPC misalignment (snake) and other correction methods.

• It supports ultrasonic sensor, photoelectric sensors and CCD sensors.

• It supports photoelectric sensors, without preprocessing, auto switch to operate.

• Integrated setup wizard and help system, each operation page has help button to view related information.

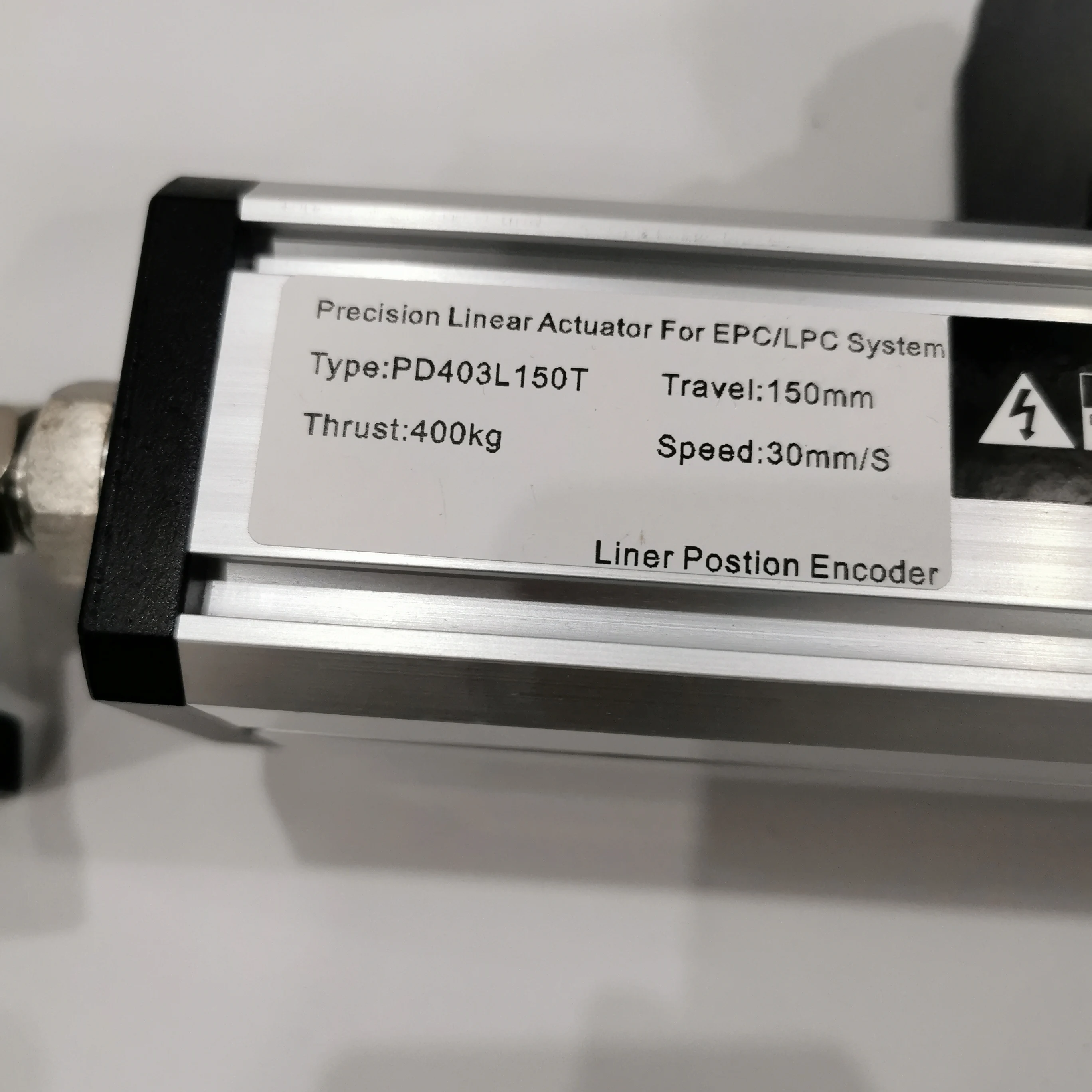

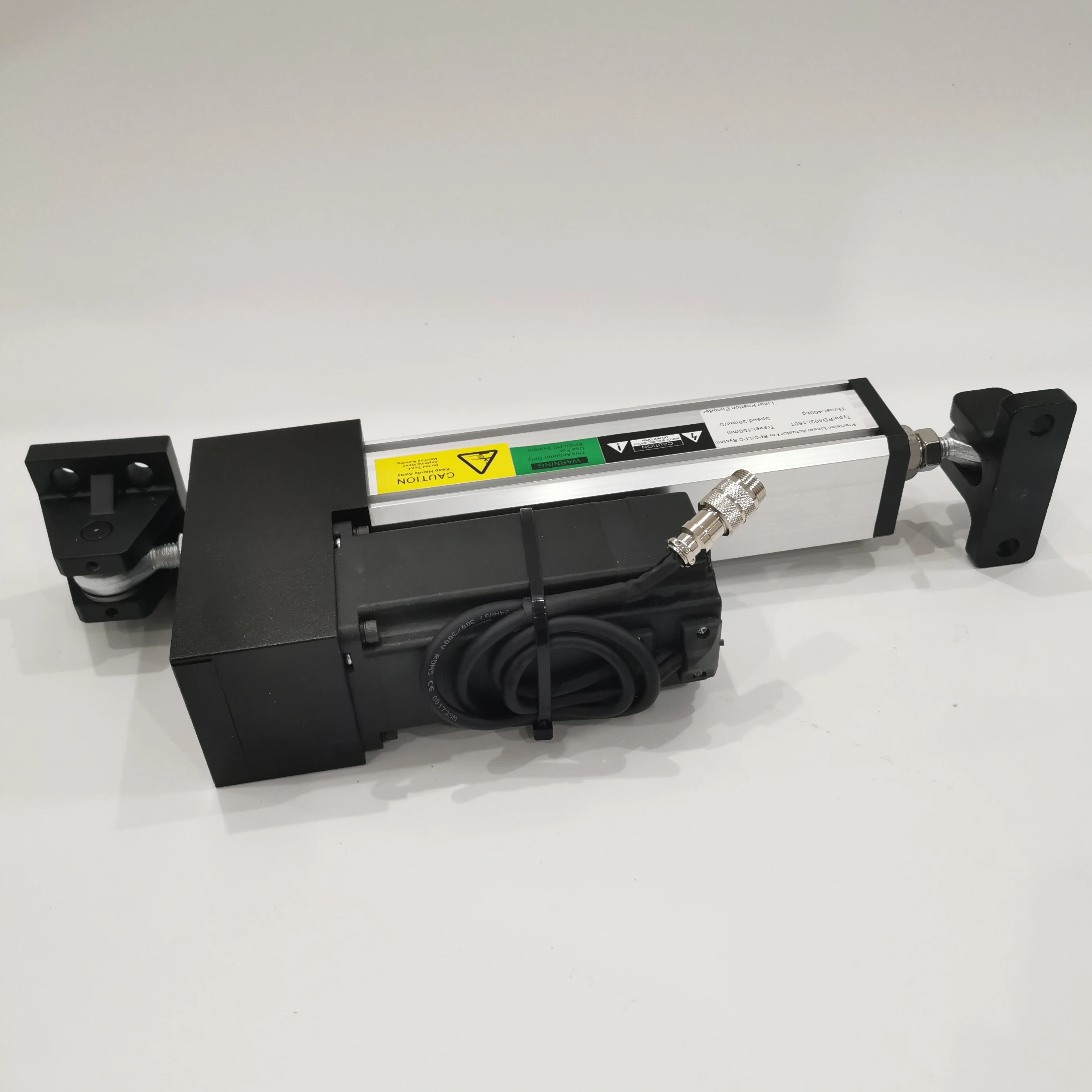

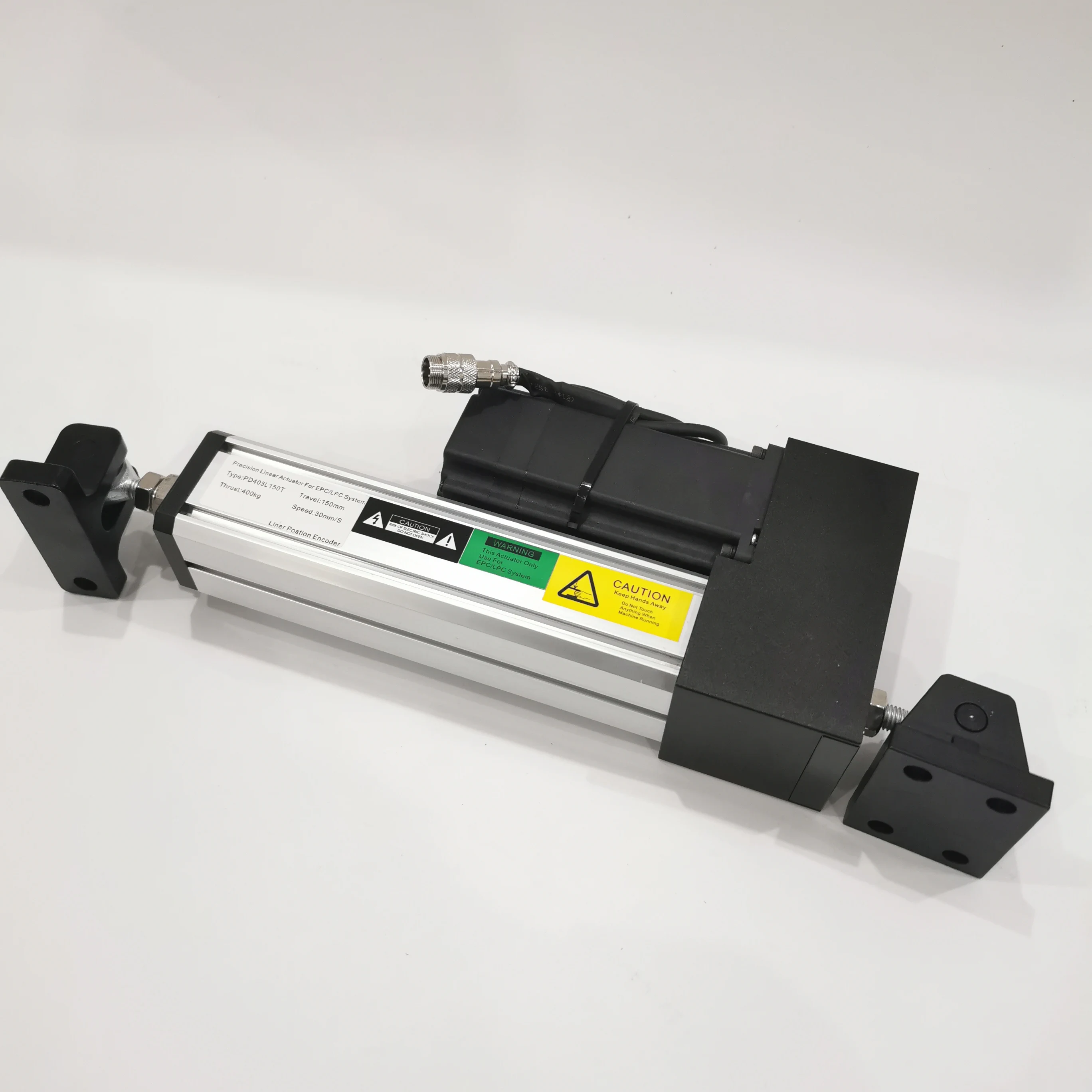

• The driver has encoder and absolute value linear position feedback device, adaptable to mechanical stroke, no need of travel switch, and the position of actuator known in real time. The propeller adopts servo motor to drive ball screw with high accuracy, low noise and no maintenance.

• With 3 high-speed analog input, it can connect two analog sensors and one external control analog (such as fine-tuning position, snake speed, etc.).

• The switch input with 3 photoelectric isolation can set different functions individually.

• Multiple software and hardware protection measures are stable and reliable, and have strong anti-interference ability. There are different emergency solutions for failure of components.

• Flexible installation.

Technical specification

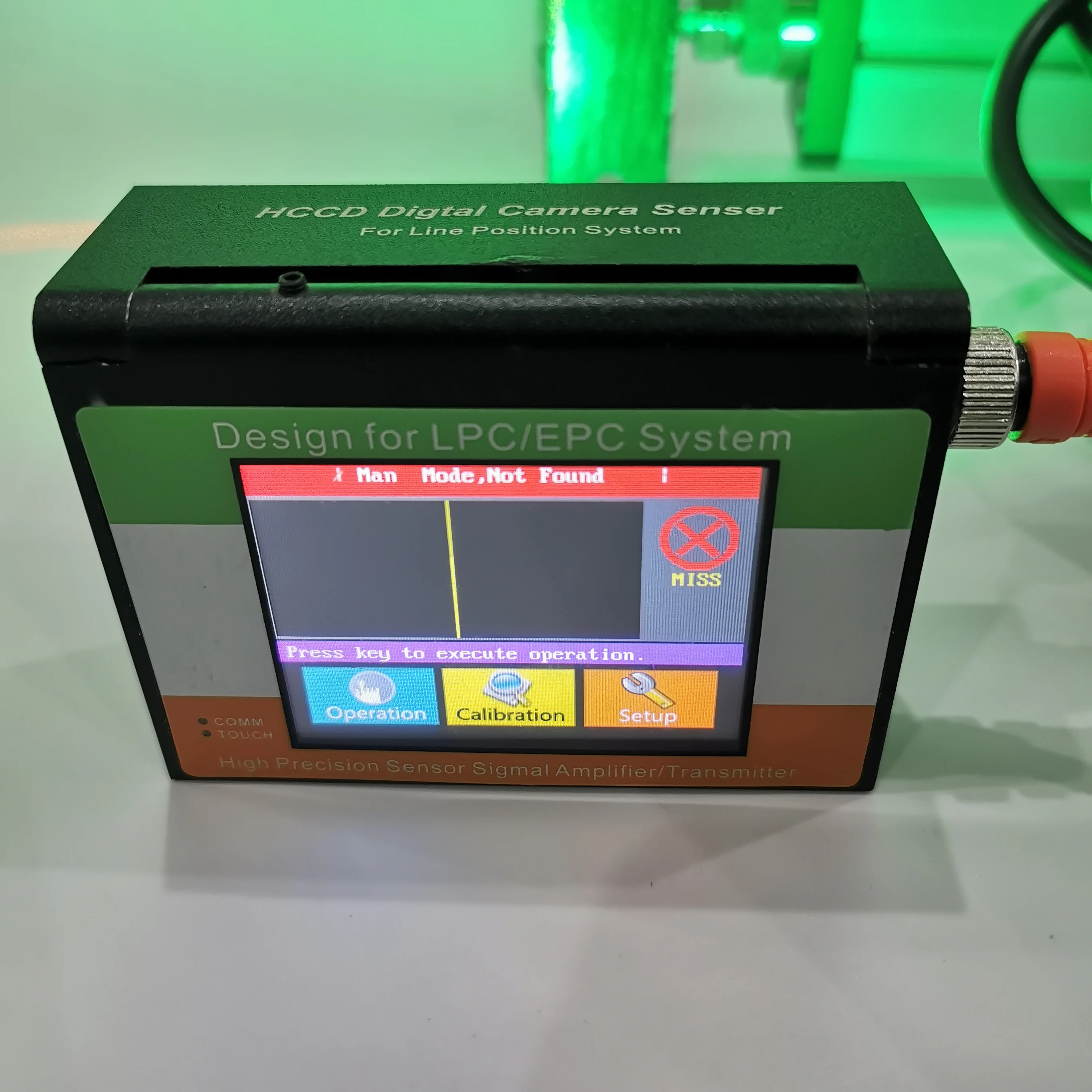

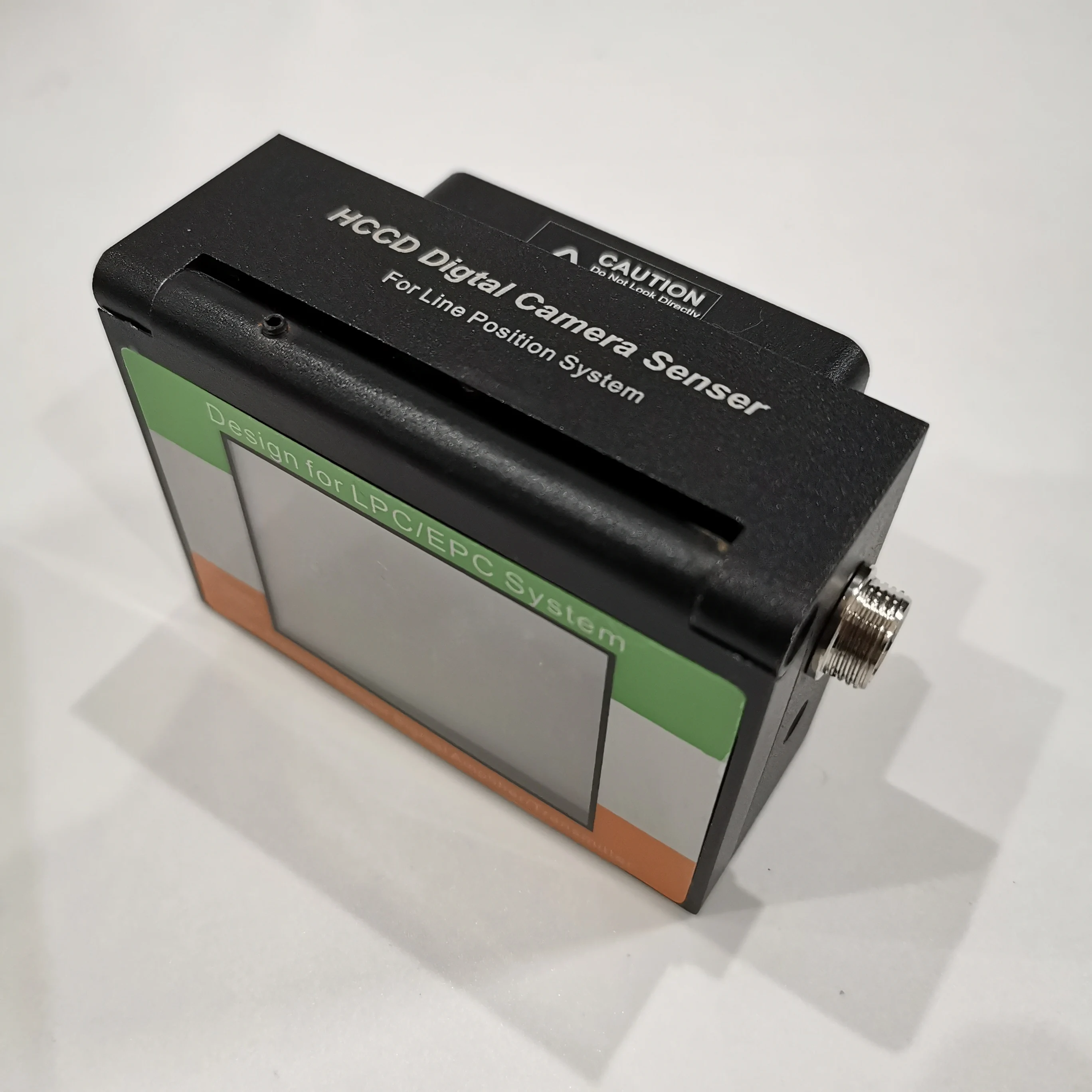

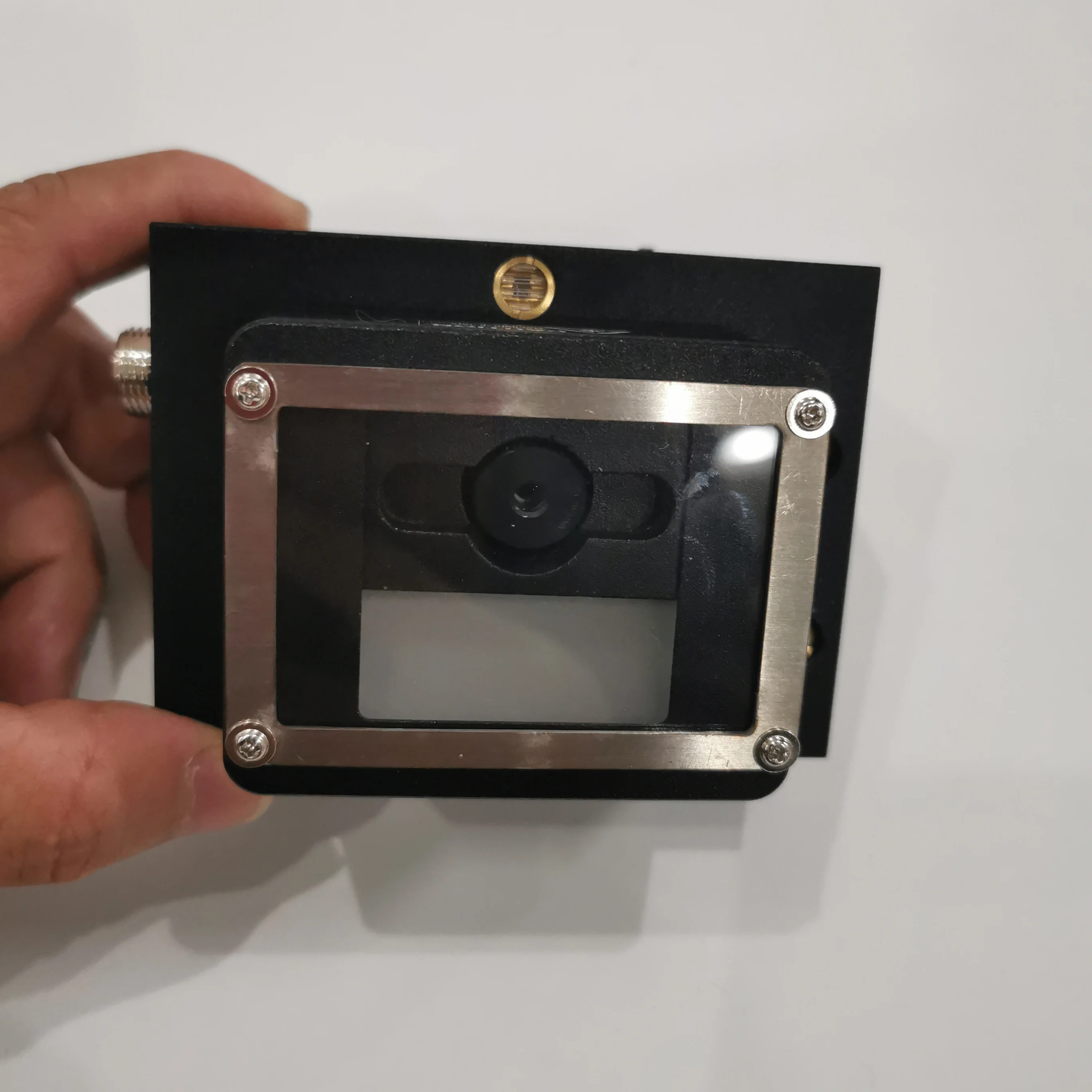

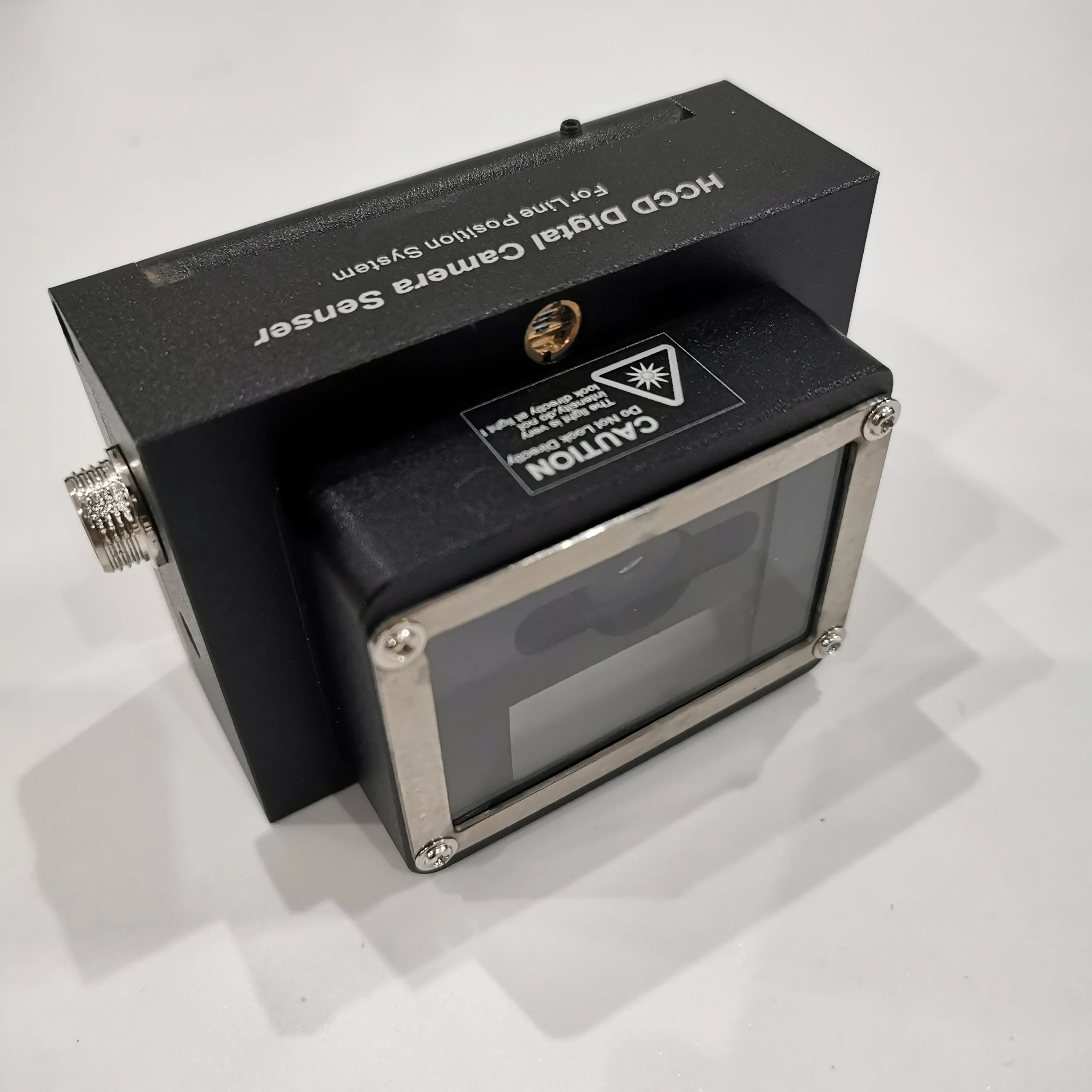

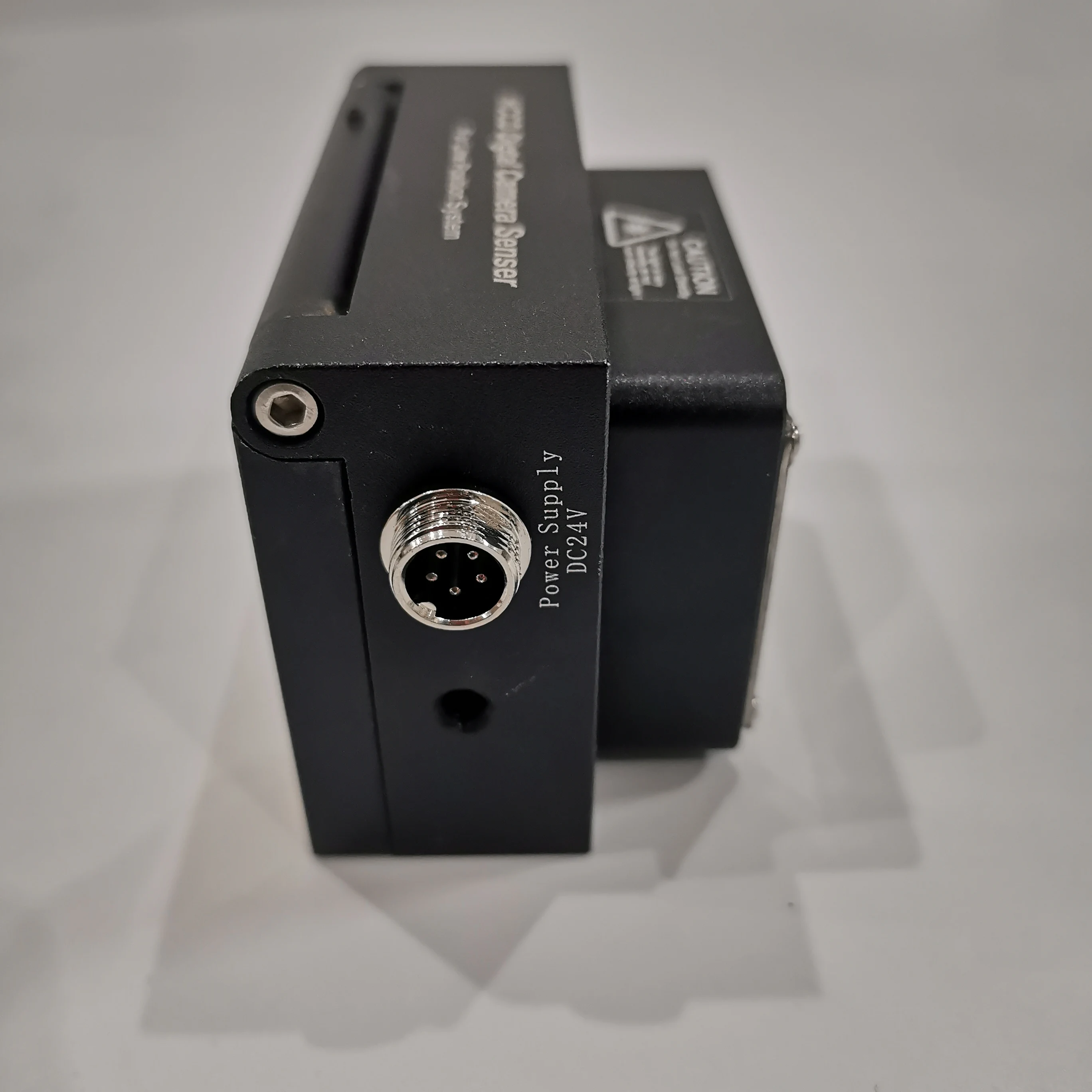

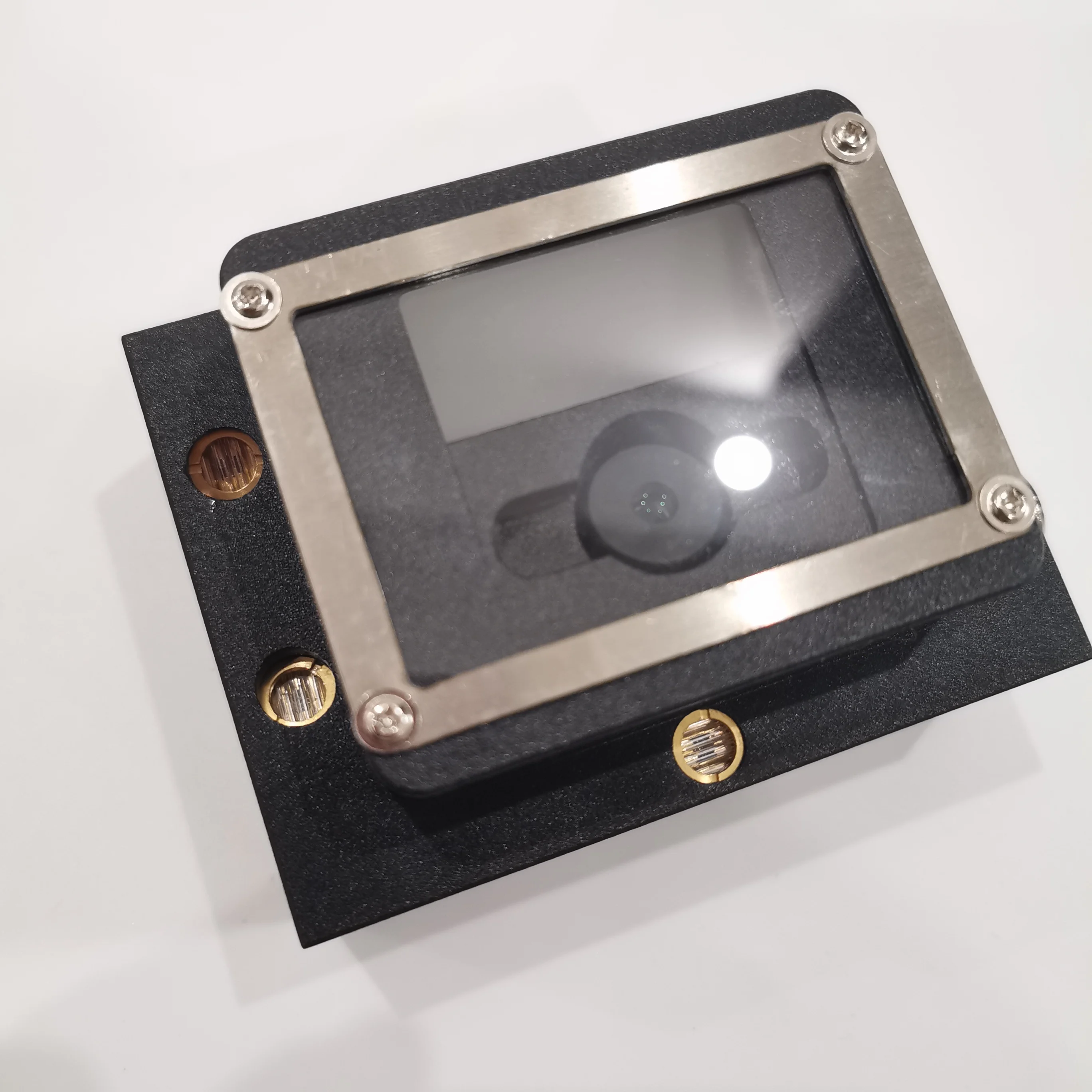

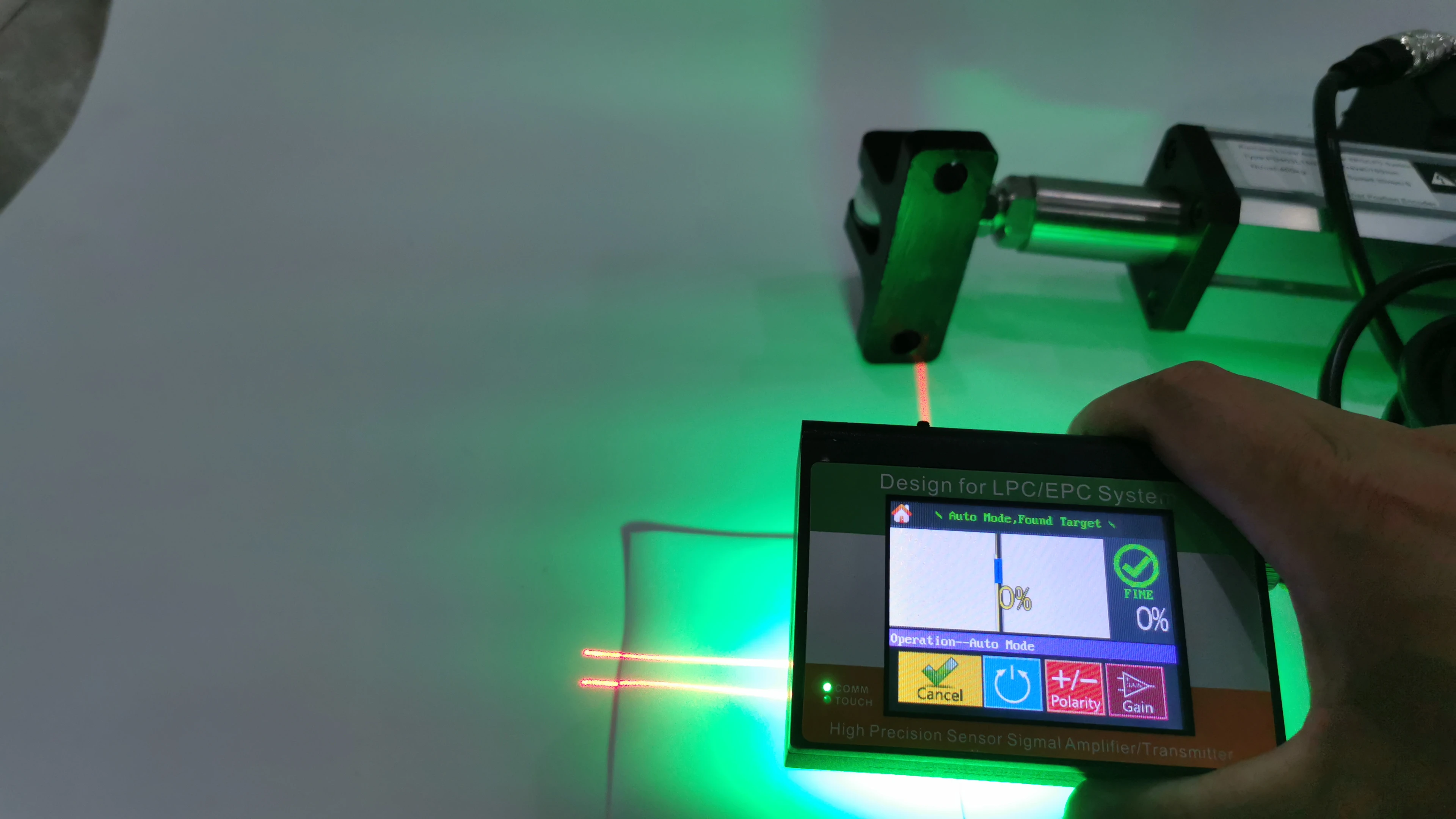

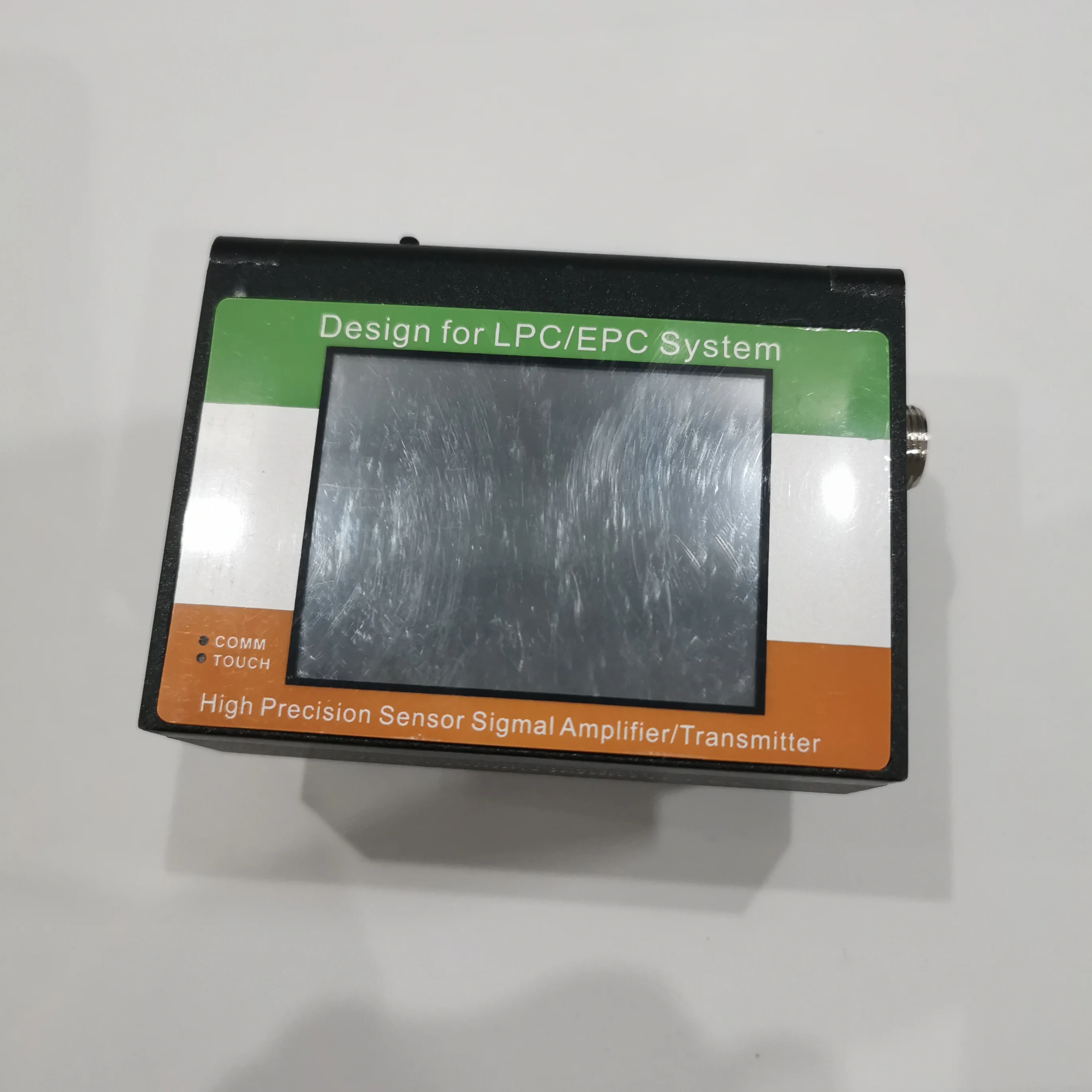

CCD sensor Introduction

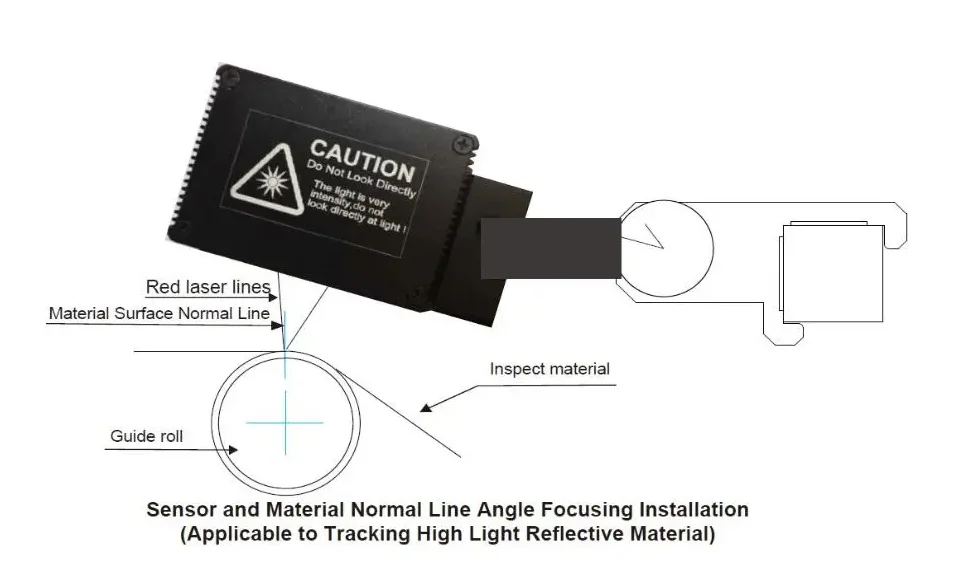

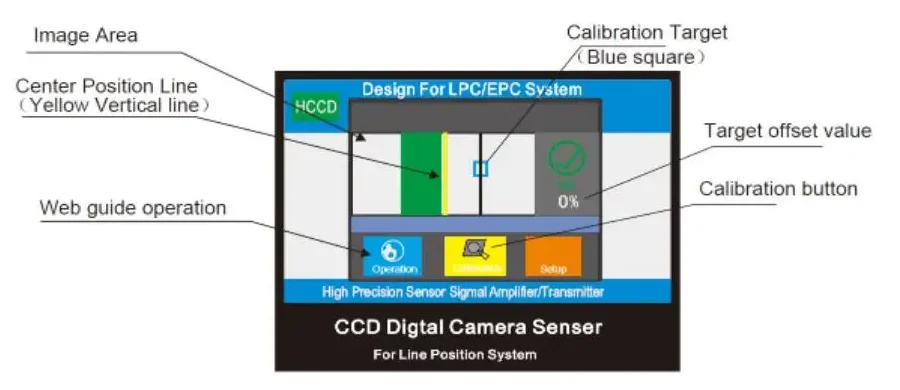

The HCCD sensor is a color linear camera, which can track the edges of materials, contrast edges, lines, patterns and so on. Because the materials to be tracked are different, we need to tell the sensor the target to be tracked, which requires calibration of the target to be tracked.
